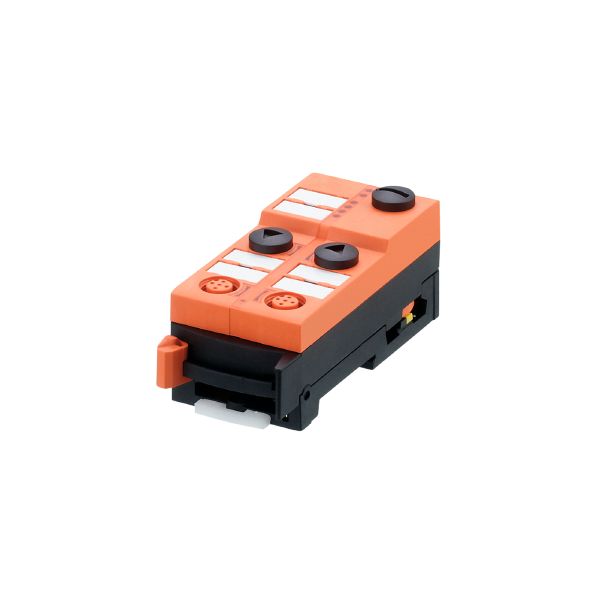

Ifm AC5218 As-Interface Classicline Module With Quick Mounting Technology
Ifm AC5218 As-Interface Classicline Module With Quick Mounting Technology is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm AC5218 As-Interface Classicline Module With Quick Mounting Tech...
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|
| Application | field installation |
|---|
| Operating voltage [V] | 18...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 50 |
| Reverse polarity protection | yes |
| Additional voltage supply [V] | 16...30 DC; (AUX) |
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|
| Number of analog outputs | 2; (connection of 2-wire, 3-wire and 4-wire actuators) |
|---|---|
| Analog current output [mA] | 4...20 |
| Max. voltage drop across load for nominal current [V] | 10 |
| Resolution of analog output | 12 bit |
| Measuring error [% of the final value] | 0,5 |
|---|
| Ambient temperature [°C] | -25...70 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 67 |
| Degree of soiling | 2 |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| MTTF [years] | 125 | ||||||
| UL approval |
|
| AS-i version | 2.11; 3.0 |
|---|---|
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.5 |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | 3.5 |
| AS-i certificate | 124001 |
| Weight [g] | 183 |
|---|---|
| Material | PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Display |
|
|---|
| Module connection | Flat cable |
|---|
| Items supplied |
|
|
|---|---|---|
| Accessories (optional) |
|
| Remarks |
|
|||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| quick mounting technology for AS-i flat cable: ; three selectable directions | |
| Connector: M12; coding: A |
