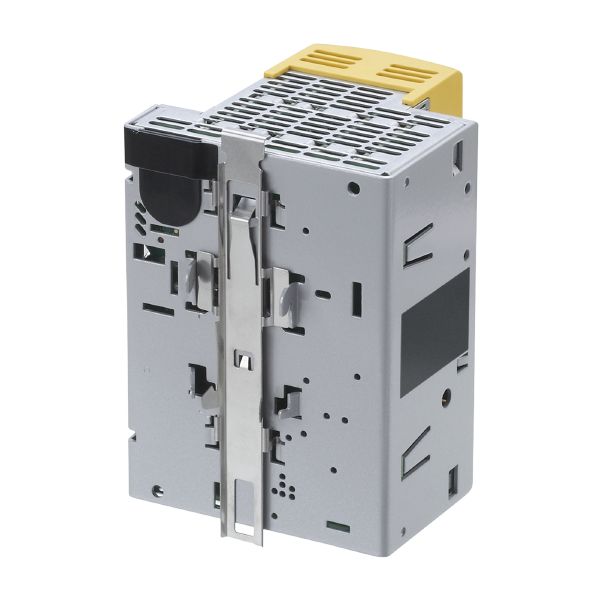

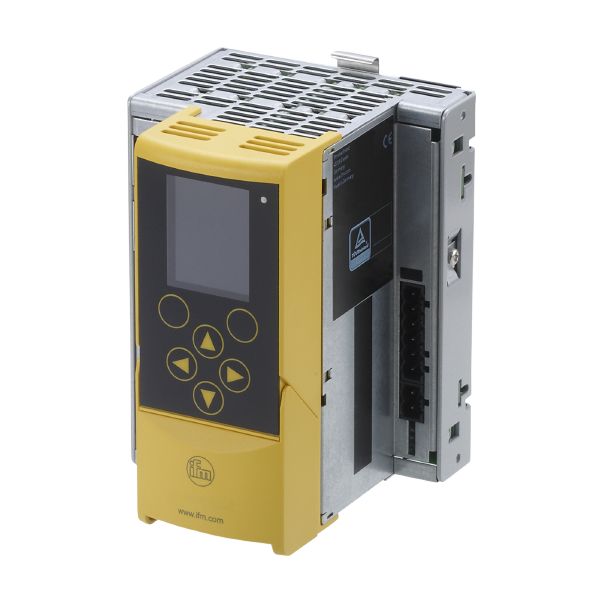

Ifm AC402S As-Interface Profinet Gateway With Fail-Safe Plc
| Application | PROFINET gateway with safe preprocessing |
|---|
| Operating voltage [V] | 18...32 DC; (AUX) |
|---|---|
| Current consumption [mA] | < 750 |
| Max. current consumption from AS-i [mA] | AS-i 1: 10 mA; AS-i 2: 10 mA |
| Number of AS-i masters | 2 |
| Electrical separation | yes |
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
|---|---|
| Sensor supply of the inputs | to SELV/PELV |
| Voltage supply [V] | 18...24 |
| Circuit | PNP |
|---|---|
| Voltage range DC [V] | 18...32; (to SELV/PELV) |
| Max. current load per output [mA] | 500 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Communication interface | Ethernet; OPC-UA |
|---|
| Protocol | EtherCAT |
|---|---|
| Usage type | Data transmission; Programming |
| Transmission rate | 100 MBaud |
|---|---|
| Protocol | EtherNet/IP |
| Usage type | Programming |
| Protocol | FSoE |
|---|
| Transmission rate | 10 MBaud; 100 MBaud |
|---|---|
| Type of connector | RJ45 |
| Protocol | Modbus TCP |
| Usage type | Programming |
| Transmission rate | 100 MBaud | |
|---|---|---|
| Type of connector | RJ45 | |
| Protocol | PROFINET | |
| Usage type | Data transmission | |
| Note on interfaces |
|
| Transmission rate | 10 MBaud; 100 MBaud |
|---|---|
| Type of connector | RJ45 |
| Protocol | TCP/IP |
| Usage type | Programming |
| Transmission rate | 10 MBaud; 100 MBaud |
|---|---|
| Type of connector | RJ45 |
| Protocol | UDP/IP |
| Usage type | Programming |
| Ambient temperature [°C] | 0...45 |
|---|---|
| Storage temperature [°C] | -20...70 |
| Max. relative air humidity [%] | 95; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 20 |
| Complies with the requirements |
|
||
|---|---|---|---|
| MIssion time TM [h] | 175200 | ||
| Mission time TM (additional indication) |
|
||
| PFH [1/h] | 1,21E-08 |
| AS-i version | 3.0 |
|---|---|
| AS-i master profile | M4 |
| AS-i certificate | 125301 |
| Weight [g] | 840.7 |
|---|---|
| Housing | housing for DIN rail mounting |
| Material | aluminum powder-coated; steel sheet galvanized; PC |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
