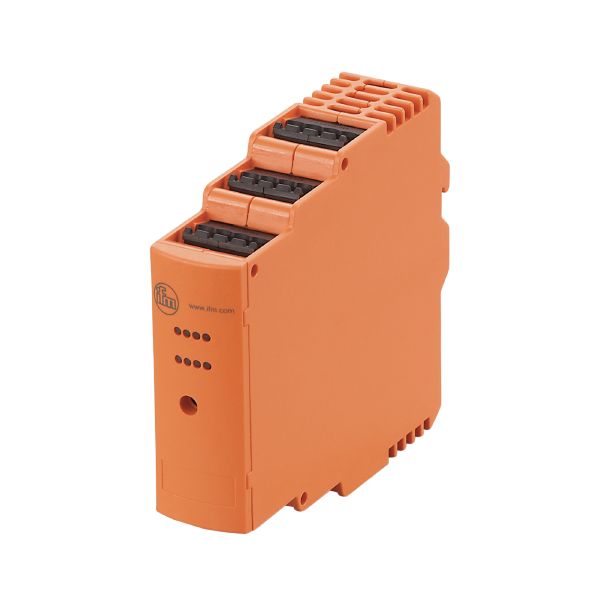

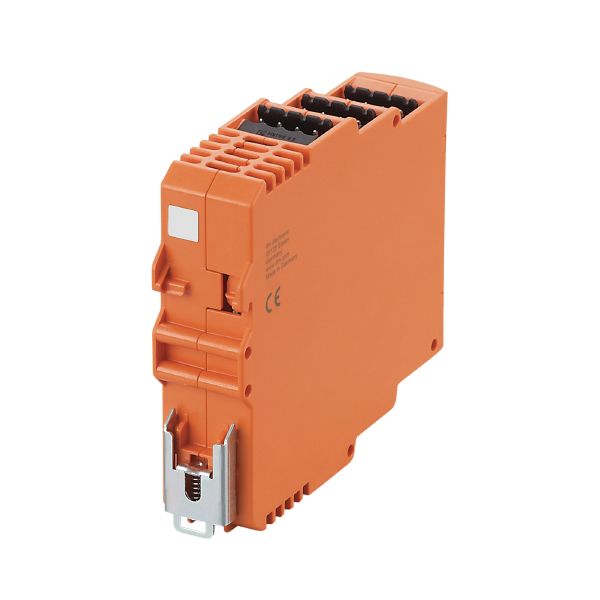

Ifm AC3216 As-Interface Control Cabinet Module
| Application | I/O modules for control cabinet installations |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 157 |
| Reverse polarity protection | yes |
| Additional voltage supply [V] | 20...30 DC; (AUX) |
| Additional voltage supply | optional |
| Max. current consumption from additional supply [mA] | 550; (AUX) |
| Number of inputs and outputs | Number of analog inputs: 4 |
|---|
| Sensor supply of the inputs | AS-i / AUX |
|---|---|
| Voltage supply [V] | 18...30 |
| Max. total current rating of inputs [mA] | 100 |
| Number of analog inputs | 4; (connection of 2-wire, 3-wire and 4-wire sensors) |
| Analog input (current) [mA] | 4...20 |
| Analog inputs protected against short circuits | no |
| Resolution of analog input | 16 bit (1 bit = 1 µA) |
| Precision analog input [%] | 0,5 |
| Ambient temperature [°C] | 0...70 |
|---|---|
| Storage temperature [°C] | -20...85 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
| Degree of soiling | 2 |
| EMC |
|
||||
|---|---|---|---|---|---|
| UL approval |
|
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | Addressing socket |
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.E |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | 3.E |
| Weight [g] | 260.7 |
|---|---|
| Type of mounting | Mounting on DIN rail |
| Material | PC-GF20 |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | pin headers: 4 x ; Spacing: 5.0 mm |
|---|
