Ifm | SKU: IF-AC2910-E | Barcode: DOES NOT APPLY

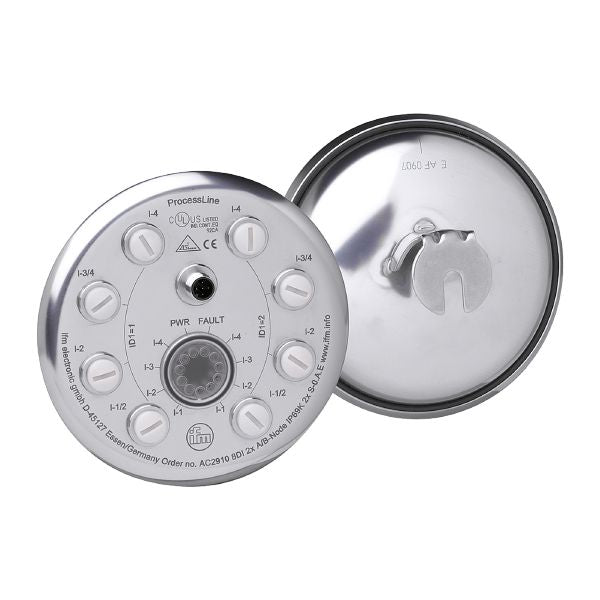

Ifm AC2910 As-Interface Processline Module

Name: Ifm AC2910 As-Interface Processline Module
Availability: BackOrder

$588.89 USD

Shipping calculated at checkout.

Ifm AC2910 As-Interface Processline Module is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Application

Application	sanitary and wet areas in the food industry

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	500

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 8

Inputs

Number of digital inputs	8; (2 x Slave)
Input circuit of digital inputs	PNP; (type 2 according to IEC 61131-2)
Sensor supply of the inputs	AS-i
Voltage supply [V]	18...30; (DC)
Max. total current rating of inputs [mA]	400
Input current High [mA]	6...10
Input current low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Operating conditions

Ambient temperature [°C]	-5...70
Max. relative air humidity [%]	90; (linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]	2000
Protection	IP 68; IP 69K
Degree of soiling	2

Tests / approvals

EMC

EN 62026-2
EN 61000-6-2

MTTF [years]

212

AS-i classification

AS-i version

2.1

Extended addressing mode

yes

AS-i master profile

M2; M3; M4

AS-i profile

S-0.A.E

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.E

AS-i certificate

88901

Data bits

Data bit	D0	D1	D2	D3
Input	1	2	3	4
Socket	I-1/2	I-1/2 I-2	I-3/4	I-3/4 I-4
Pin	4	2 4	4	2 4

Mechanical data

Weight [g]	644
Dimensions [mm]	Ø 137.3 / L = 80
Material	threaded bush: stainless steel (1.4404 / 316L); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP

Displays / operating elements

Display

Power	LED, green
errors	LED, red
Function	LED, yellow

Electrical connection

Module connection	M12

Accessories

Items supplied

Protective cap: M12, E70297

Accessories (optional)

Torque wrench:, E70390

Flat cable insulation displacement connector:, E70454

Remarks

Inputs and outputs must be electrically isolated.

Do not connect any of the following points to an external potential:

I-, I+, I-1/2, I-2, I-3/4, I-4

The connections are electrically connected with the AS-i cable.

Default setting of the ID1 codes: slave 1=1 / slave 2=2

The round cable connected to AS-i should not be longer than 2m.

Pack quantity

1 pcs.

Electrical connection - AS-i

	Connector: M12; coding: A; Tightening torque: 1.2...1.4 Nm

Electrical connection - Inputs

Connection	Connector: M12; coding: A; Tightening torque: 1.2...1.4 Nm
