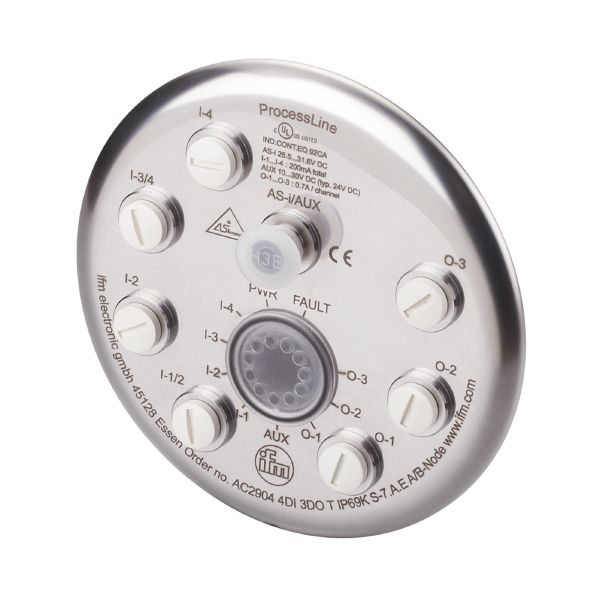

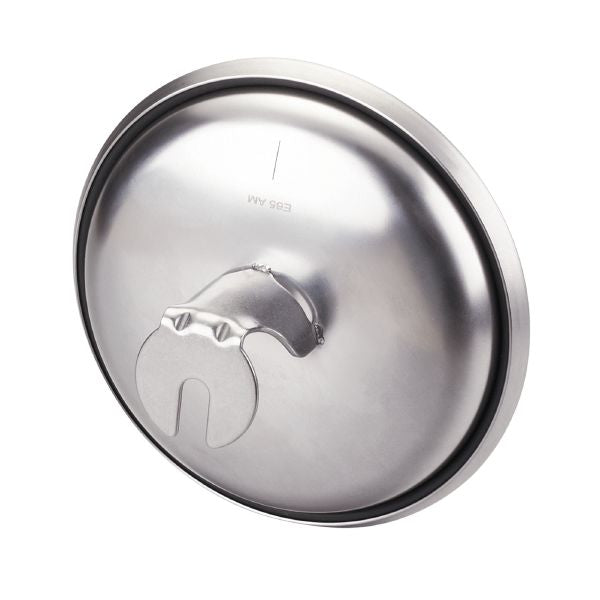

Ifm AC2904 As-Interface Processline Module

Name: Ifm AC2904 As-Interface Processline Module
Availability: BackOrder

$606.67 USD

Shipping calculated at checkout.

Ifm AC2904 As-Interface Processline Module is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Application

Application	sanitary and wet areas in the food industry

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	240
Additional voltage supply [V]	20...30 DC; (AUX)
Max. current consumption from additional supply [mA]	2100; (AUX)
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4; Number of digital outputs: 3

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP; (type 2 according to IEC 61131-2)
Sensor supply of the inputs	AS-i
Voltage supply [V]	18...30
Max. total current rating of inputs [mA]	200
Input current High [mA]	6...10
Input current low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	3
Circuit	PNP
Voltage range DC [V]	20...30; (AUX)
Max. current load per output [mA]	700; (utilization category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A]	2.1
Short-circuit proof	yes
Electrically separated	yes

Operating conditions

Ambient temperature [°C]	-5...70
Max. relative air humidity [%]	90; (linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]	2000
Protection	IP 68; IP 69K
Degree of soiling	2

Tests / approvals

EMC

EN 62026-2
EN 61000-6-2

MTTF [years]

160

AS-i classification

AS-i version

2.1

Extended addressing mode

yes

AS-i master profile

M2; M3; M4

AS-i profile

S-7.A.E

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.E

AS-i certificate

101107

Data bits

Data bit	D0	D1	D2	D3
Input	1	2	3	4
Socket	I-1/2	I-1/2 I-2	I-3/4	I-3/4 I-4
Pin	4	2 4	4	2 4
Output	1	2	3	-
Socket	O-1	O-2	O-3	-
Pin	4	4	4	-

Mechanical data

Weight [g]	632
Dimensions [mm]	Ø 137.3 / L = 80
Material	threaded bush: stainless steel (1.4404 / 316L); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP

Displays / operating elements

Display

Power	LED, green
errors	LED, red
Function	LED, yellow

Electrical connection

Module connection	M12

Accessories

Accessories (optional)

Torque wrench:, E70390

Protective cap: M12, E70297

Flat cable splitter box:, E70354

Remarks

Inputs and outputs must be electrically isolated.

Do not connect any of the following points to an external potential:

I-, I+, I-1/2, I-2, I-3/4, I-4

The connections are electrically connected with the AS-i cable.

The round cable connected to AS-i/AUX should not be longer than 2m.

Pack quantity

1 pcs.

Electrical connection - AS-i

	Connector: M12; coding: A; Tightening torque: 1.2...1.4 Nm

Electrical connection - Inputs

Connection	Connector: M12; coding: A; Tightening torque: 1.2...1.4 Nm

Electrical connection - Outputs

	Connector: M12; coding: A; Tightening torque: 1.2...1.4 Nm
