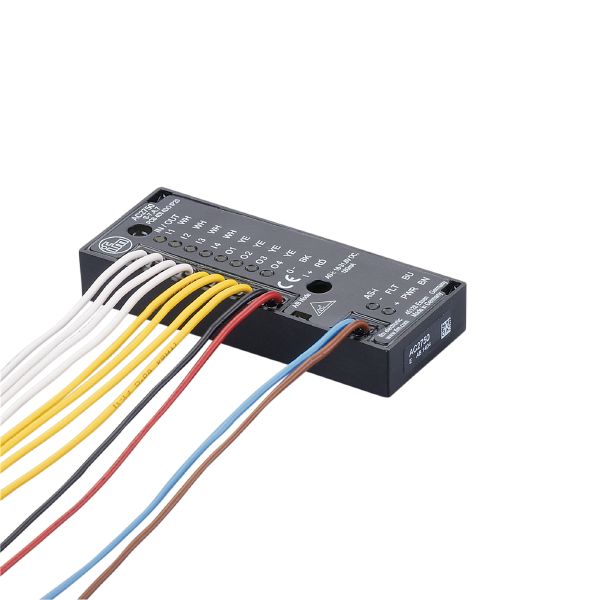

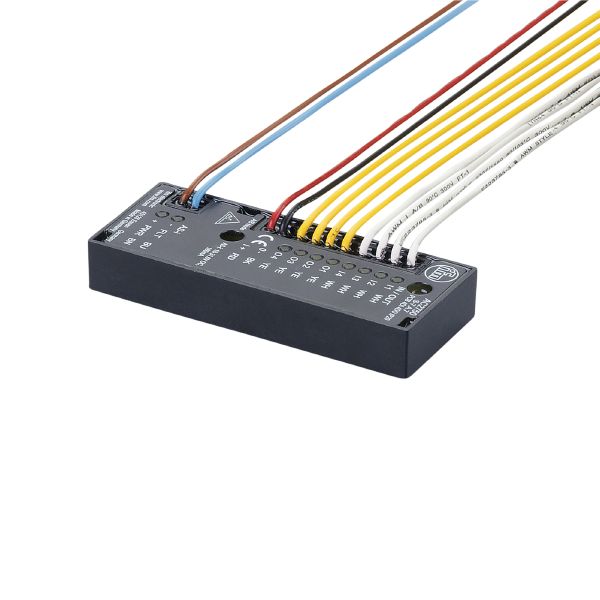

Ifm AC2750 As-Interface Pcb Module

Name: Ifm AC2750 As-Interface Pcb Module
Availability: BackOrder

$170.56 USD

Shipping calculated at checkout.

Ifm AC2750 As-Interface Pcb Module is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Application

Design	Only for operation with AS-i masters with the profile M4
Application	Housing for panel mounting

Electrical data

Operating voltage [V]	18...31.6 DC
Max. current consumption from AS-i [mA]	180; (without sensors: < 30 mA; inputs and outputs active: < 180 mA)
Protection class	III
Max. current load total [A]	0.15; (total current for all inputs and outputs supplied from AS-i: 150 mA)
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4; Number of digital outputs: 4

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Voltage supply [V]	18...30; (DC)
Max. total current rating of inputs [mA]	150
Input current High [mA]	6...10
Input current low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Outputs

Electrical design	PNP
Number of digital outputs	4
Circuit	PNP
Voltage range DC [V]	18...30; (DC)
Max. current load per output [mA]	100; (utilization category DC-13 (control of electromagnets): 2,5 W (IEC 60947-5-1))
Max. current load outputs total [A]	0.15
Short-circuit proof	yes
Electrically separated	yes
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	-25...55
Protection	IP 20

Tests / approvals

EMC

EN 50295

AS-i classification

AS-i version	3.0
Extended addressing mode	yes
AS-i master profile	M4
AS-i profile	S-7.A.7
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.7
AS-i certificate	102301

Mechanical data

Weight [g]	75.5
Type of mounting	Installation in a surface-mounted housing
Dimensions [mm]	31.1 x 12 x 76.6
Material	housing: PC potted

Displays / operating elements

Display

Power	LED, green
errors	LED, red
Function	LED, yellow

Remarks

A watchdog function switches the outputs off if there is no communication on the AS-i line.

Install the unit so that exposed parts cannot be touched.

Installation in a surface-mounted housing with the dimensions of 68 x 136 x 53 mm (LxWxH), e.g. Schneider Electric Harmony XALD03, XALD04

Do not connect any of the following points to an external potential:

0-, I+, I1, I2, I3, I4

The connections are electrically connected with the AS-i cable.

Can be used up to a height of 2000 metres above sea level

Pack quantity

1 pcs.

Electrical connection

	Cable: 0.2 m, PVC
