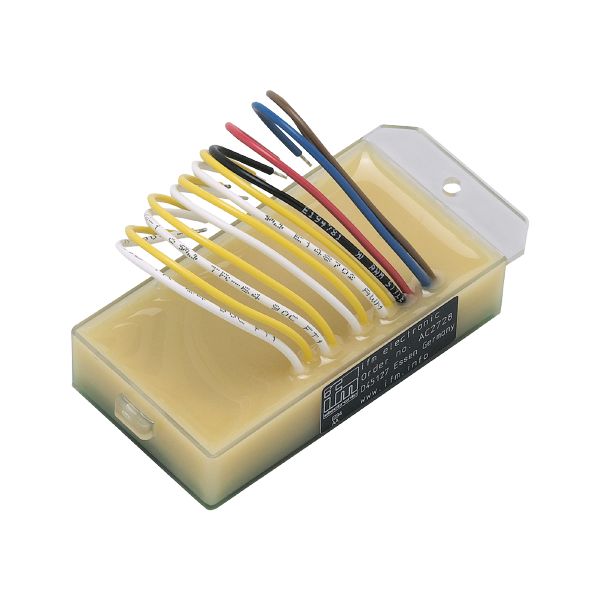

Ifm AC2730 As-Interface Pcb Module
| Application | Housing for panel mounting |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Current consumption [mA] | < 200 |
| Max. current load total [A] | 0.18; (total current for all inputs and outputs supplied from AS-i: 180 mA) |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 3 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Voltage supply [V] | 20...30; (DC) |
| Digital inputs protected against short circuits | yes |
| Electrical design | PNP |
|---|---|
| Number of digital outputs | 3 |
| Voltage range DC [V] | 18...30; (DC) |
| Max. current load per output [mA] | 100; (note current load for all inputs and outputs ) |
| Short-circuit proof | yes |
| Actuator supply outputs | AS-i |
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 20 |
| EMC |
|
|---|
| AS-i version | 2.1 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Extended addressing mode | yes | |||||||||||||||
| AS-i master profile | M2; M3; M4 | |||||||||||||||
| AS-i profile | S-7.A.F | |||||||||||||||
| AS-i I/O configuration [hex] | 7 | |||||||||||||||
| AS-i ID code [hex] | A.F | |||||||||||||||
| Data bits |
|
| Weight [g] | 80 |
|---|---|
| Housing | potted plastic housing |
| Dimensions [mm] | 16 x 88 x 41 |
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Cable: 0.2 m |
