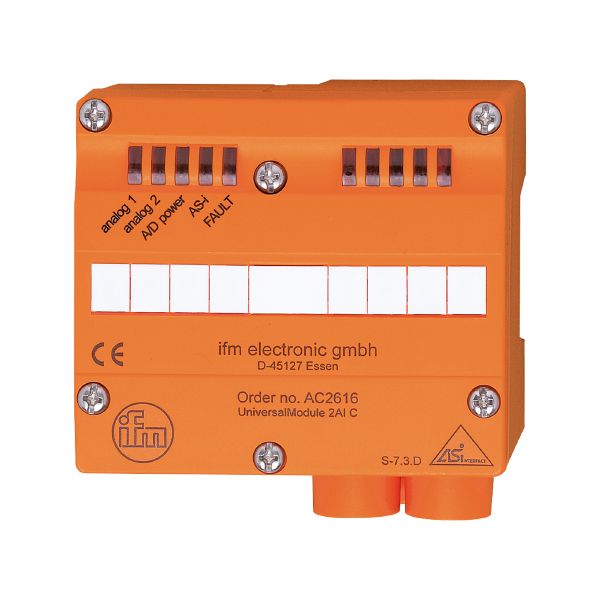

Ifm AC2617 As-Interface Universal Module
| Application | field installation |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 140 |
| Reverse polarity protection | yes |
| Additional voltage supply [V] | 24...30 DC; (AUX) |
| Additional voltage supply | optional |
| Max. current consumption from additional supply [mA] | 550; (AUX) |
| Number of inputs and outputs | Number of analog inputs: 2 |
|---|
| Sensor supply of the inputs | AS-i / AUX |
|---|---|
| Max. total current rating of inputs [mA] | 100 |
| Number of analog inputs | 2; (Anschluss von 2-, 3-, 4-Draht-Sensoren) |
| Analog input (voltage) [V] | 0...10 |
| Analog inputs protected against short circuits | no |
| Resolution of analog input | 16 (1 bit = 1 mV) |
| Precision analog input [%] | 0,5 |
| Ambient temperature [°C] | 0...70 |
|---|---|
| Storage temperature [°C] | -25...85 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 65 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 140 |
| AS-i master profile | M3; M4 | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-i profile | S-7.3.D | |||||||||||||||||||||||||||||||||||
| AS-i I/O configuration [hex] | 7 | |||||||||||||||||||||||||||||||||||
| AS-i ID code [hex] | 3.D | |||||||||||||||||||||||||||||||||||
| Parameter bits |
|
| Weight [g] | 289.5 |
|---|---|
| Type of mounting | AS-i interface to FC-E lower parts |
| Material | PBT |
| Display |
|
|---|
| Module connection | Flat cable |
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | cage clamps: |
|---|
