Ifm | SKU: IF-AC2516-E | Barcode: DOES NOT APPLY

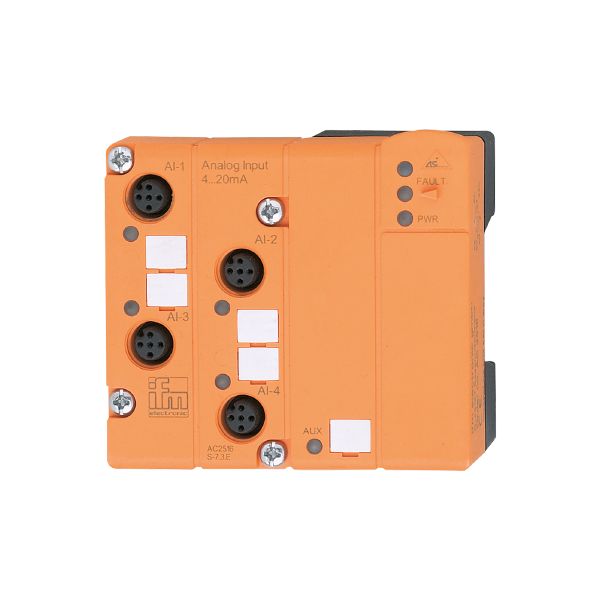

Ifm AC2516 As-Interface Classicline Module

Name: Ifm AC2516 As-Interface Classicline Module
Availability: BackOrder

$865.00 USD

Shipping calculated at checkout.

Ifm AC2516 As-Interface Classicline Module is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	157
Reverse polarity protection	yes
Additional voltage supply [V]	24...30 DC; (AUX)
Additional voltage supply	optional
Max. current consumption from additional supply [mA]	550; (AUX)

Inputs / outputs

Number of inputs and outputs	Number of analog inputs: 4

Inputs

Max. total current rating of inputs [mA]	100
Number of analog inputs	4; (connection of 2-wire, 3-wire and 4-wire sensors)
Analog input (current) [mA]	4...20
Analog inputs protected against short circuits	no
Resolution of analog input	16 (1 bit = 1 µA)
Precision analog input [%]	0,5

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	-20...85
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	2000
Protection	IP 67

Tests / approvals

EMC

EN 50295
EN 61000-6-4	: 2001
EN 61000-6-2	: 2001

MTTF [years]

115

AS-i classification

AS-i addressing	Addressing socket; IR addressing possible
AS-i master profile	M3; M4
AS-i profile	S-7.3.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.E

Mechanical data

Weight [g]	222
Type of mounting	AS-i interface to FC/FC-E lower parts
Material	PBT
Tightening torque [Nm]	0.6...0.8

Displays / operating elements

Display

analog signal	LED, yellow Channels AI1...AI4
diagnosis	LED, yellow
Power	LED, green AS-i, AUX
errors	LED, red

Electrical connection

Module connection	Flat cable

Accessories

Accessories (optional)

Module lower part

Remarks

Pack quantity	1 pcs.

Electrical connection

	Connector: M12; coding: A
