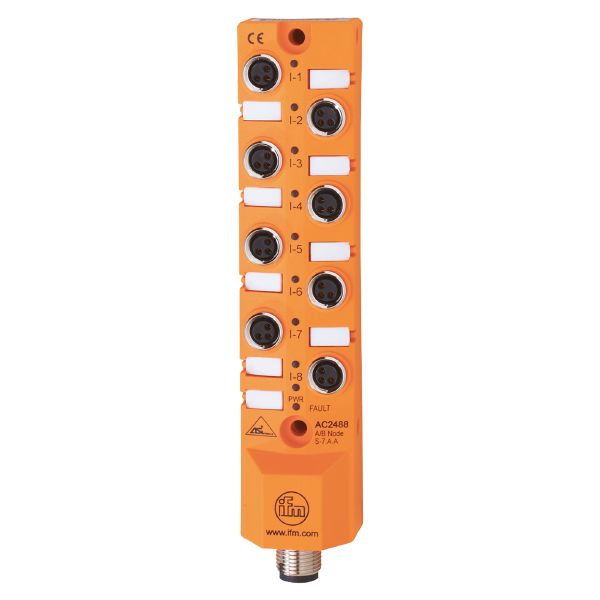

Ifm AC2488 As-Interface Compactline Module
| Design | Only for operation with AS-i masters with the profile M4 |
|---|---|
| Application | field installation |
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 230 |
| Number of inputs and outputs | Number of digital inputs: 8 |
|---|
| Number of digital inputs | 8 |
|---|---|
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs | AS-i |
| Voltage supply [V] | 18...30; (DC) |
| Max. total current rating of inputs [mA] | 180 |
| Switching level high [V] | > 11 |
| Digital inputs protected against short circuits | yes |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -25...60 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 65; IP 67; IP 68 |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 150 | ||||
| UL approval |
|
| AS-i version | 3.0 | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Extended addressing mode | yes | |||||||||||||||||||||||||||||||||||
| AS-i master profile | M4 | |||||||||||||||||||||||||||||||||||
| AS-i profile | S-7.A.A | |||||||||||||||||||||||||||||||||||
| AS-i I/O configuration [hex] | 7 | |||||||||||||||||||||||||||||||||||
| AS-i ID code [hex] | A.A | |||||||||||||||||||||||||||||||||||
| AS-i certificate | 100701 | |||||||||||||||||||||||||||||||||||
| Parameter bits |
|
| Weight [g] | 150.5 |
|---|---|
| Type of mounting | Backplane mounting |
| Dimensions [mm] | 134.5 x 30 x 23.5 |
| Material | PBT |
| Display |
|
|---|
| Module connection | M12 |
|---|
| Items supplied |
|
||||
|---|---|---|---|---|---|
| Accessories (optional) |
|
| Remarks |
|
|||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x M12; coding: A |
| Connector: 8 x M8; coding: A |
