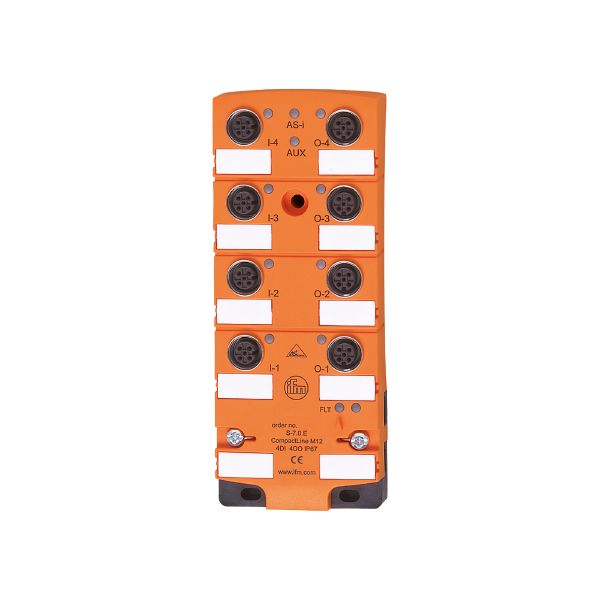

Ifm AC2452 As-Interface Compactline Module

Name: Ifm AC2452 As-Interface Compactline Module
Availability: BackOrder

$518.89 USD

Shipping calculated at checkout.

Ifm AC2452 As-Interface Compactline Module is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	250
Max. current load total [A]	4
Additional voltage supply [V]	10...30 DC; (AUX)
Max. current consumption from additional supply [mA]	4000; (AUX)
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4; Number of digital outputs: 4

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP; (type 2 according to IEC 61131-2)
Sensor supply of the inputs	AS-i
Voltage supply [V]	20...30; (DC)
Max. total current rating of inputs [mA]	200
Input current limitation [mA]	15
Input current High [mA]	6...10
Input current low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	4
Circuit	PNP
Voltage range DC [V]	10...30; (AUX)
Max. current load per output [mA]	2000; (utilization category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Max. current load outputs total [A]	4
Short-circuit proof	yes
Electrically separated	yes
Actuator supply outputs	AUX

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-25...80
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	2000
Protection	IP 67; (when flat cables are used E7400x / E7401x)

Tests / approvals

EMC

EN 61000-6-2
EN 62026-2
EN 50581

MTTF [years]

193

UL approval

voltage supply

Class 2

AS-i classification

AS-i addressing

IR addressing possible

Extended addressing mode

AS-i master profile

M2; M3; M4

AS-i profile

S-7.0.E

AS-i I/O configuration [hex]

AS-i ID code [hex]

0.E

AS-i certificate

46001

Data bits

Data bit	D0	D1	D2	D3
Input	1	2	3	4
Socket	I-1	I-2	I-3	I-4
Pin	2+4	2+4	2+4	2+4
Output	1	2	3	4
Socket	O-1	O-2	O-3	O-4
Pin	4	4	4	4

Mechanical data

Weight [g]	374
Type of mounting	AS-i flat cable connection
Material	PA; Socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); screws: stainless steel (1.4578 / 316Cu); Piercing contacts: CuSn6 nickel-plated and tin-plated; O-ring: EPDM

Displays / operating elements

Display

Switching status	LED, yellow I1...I4, O1...O4
Power	LED, green AS-i, AUX
errors	LED, red

Electrical connection

Module connection	Flat cable

Accessories

Accessories (optional)

stainless steel sleeve, for installation in case of high mechanical stress , E70402

Remarks

Inputs and outputs must be electrically isolated.

Do not connect any of the following points to an external potential:

I-, I+, I1, I2, I3, I4

The connections are electrically connected with the AS-i cable.

Pack quantity

1 pcs.

Electrical connection - Inputs

	Connector: M12; coding: A
