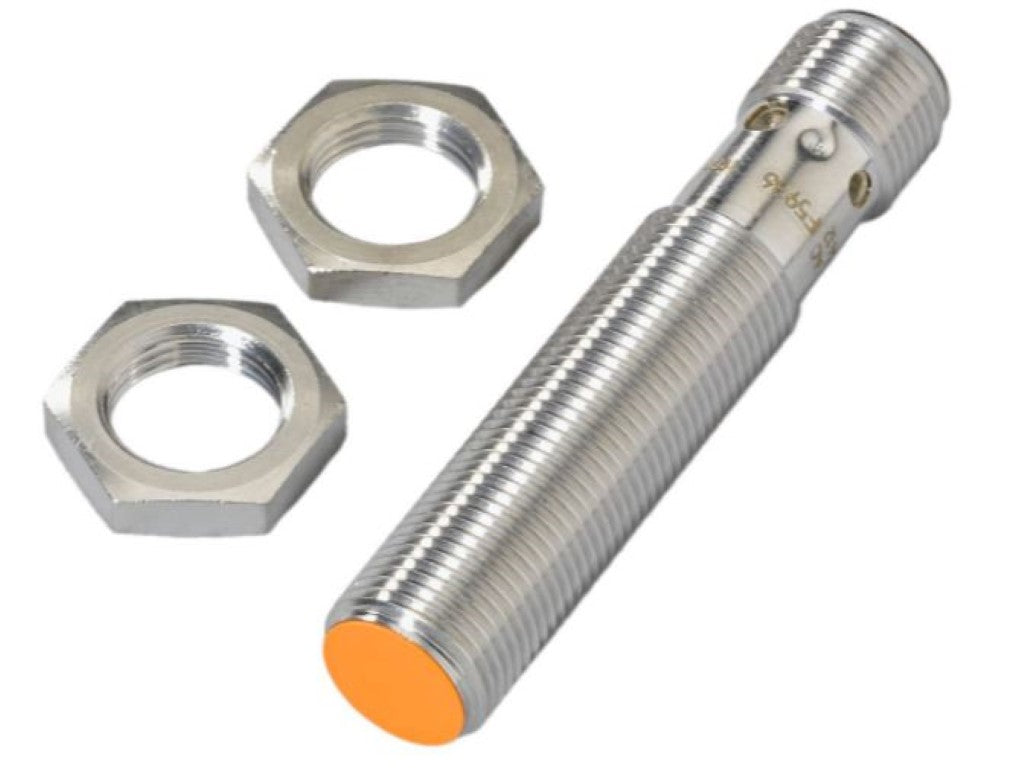

IF5896 Ifm Electronic Inductive sensor M12 Connector; IP 68
IF5896
IFK2004BFRKG/M/2LED/US-104-IRF IFK2004BFRKGM2LEDUS104IRF
Ifm Electronic Inductive sensor
Inductive sensor; M12 x 1 / L = 60 mm; Sensing range 4 mm flush mountable; normally open / normally closed; (selectable); DC PNP/NPN; M12 Connector; IP 68; ("Coolant"); 2-wire; Ambient temperature -25...70 °C; Switching frequency 700 Hz
Robust housing for use in metalworking
Resistant to oils and coolants
Long sensing range for high uptime
Output function normally open / normally closed programmable
With optical mounting and setting aid
| Product characteristics | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical design | PNP/NPN | ||||||||||||
| Output function | normally open / normally closed; (selectable) | ||||||||||||
| Sensing range [mm] | 4 | ||||||||||||
| Housing | threaded type | ||||||||||||
| Dimensions [mm] | M12 x 1 / L = 60 | ||||||||||||
| Application | |||||||||||||
| Special feature | Gold-plated contacts; Increased sensing range; Optical setting aid | ||||||||||||
| Electrical data | |||||||||||||
| Operating voltage [V] | 10...36 DC | ||||||||||||
| Protection class | II | ||||||||||||
| Reverse polarity protection | yes | ||||||||||||
| Outputs | |||||||||||||
| Electrical design | PNP/NPN | ||||||||||||
| Output function | normally open / normally closed; (selectable) | ||||||||||||
| Max. voltage drop switching output DC [V] | 4.6 | ||||||||||||
| Minimum load current [mA] | 4 | ||||||||||||
| Max. leakage current [mA] | 1 | ||||||||||||
| Permanent current rating of switching output DC [mA] | 100 | ||||||||||||
| Switching frequency DC [Hz] | 700 | ||||||||||||
| Short-circuit protection | yes | ||||||||||||
| Type of short-circuit protection | pulsed | ||||||||||||
| Overload protection | yes | ||||||||||||
| Detection zone | |||||||||||||
| Sensing range [mm] | 4 | ||||||||||||
| Operating distance [mm] | 0...3.25 | ||||||||||||
| Increased sensing range | yes | ||||||||||||
| Accuracy / deviations | |||||||||||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4 | ||||||||||||
| Hysteresis [% of Sr] | 1...20 | ||||||||||||
| Operating conditions | |||||||||||||
| Ambient temperature [°C] | -25...70 | ||||||||||||
| Protection | IP 68; ("Coolant") | ||||||||||||
| Tests / approvals | |||||||||||||
| EMC |
|
||||||||||||
| MTTF [years] | 1320 | ||||||||||||
| UL approval |
|
||||||||||||
| Mechanical data | |||||||||||||
| Weight [g] | 27.9 | ||||||||||||
| Housing | threaded type | ||||||||||||
| Mounting | flush mountable | ||||||||||||
| Dimensions [mm] | M12 x 1 / L = 60 | ||||||||||||
| Thread designation | M12 x 1 | ||||||||||||
| Materials | brass white bronze coated; sensing face: PBT orange | ||||||||||||
| Displays / operating elements | |||||||||||||
| Display |
|
||||||||||||
| Optical setting aid | yes | ||||||||||||
| Accessories | |||||||||||||
| Items supplied |
|
||||||||||||
| Remarks | |||||||||||||
| Pack quantity | 1 pcs. | ||||||||||||
| Electrical connection - plug | |||||||||||||

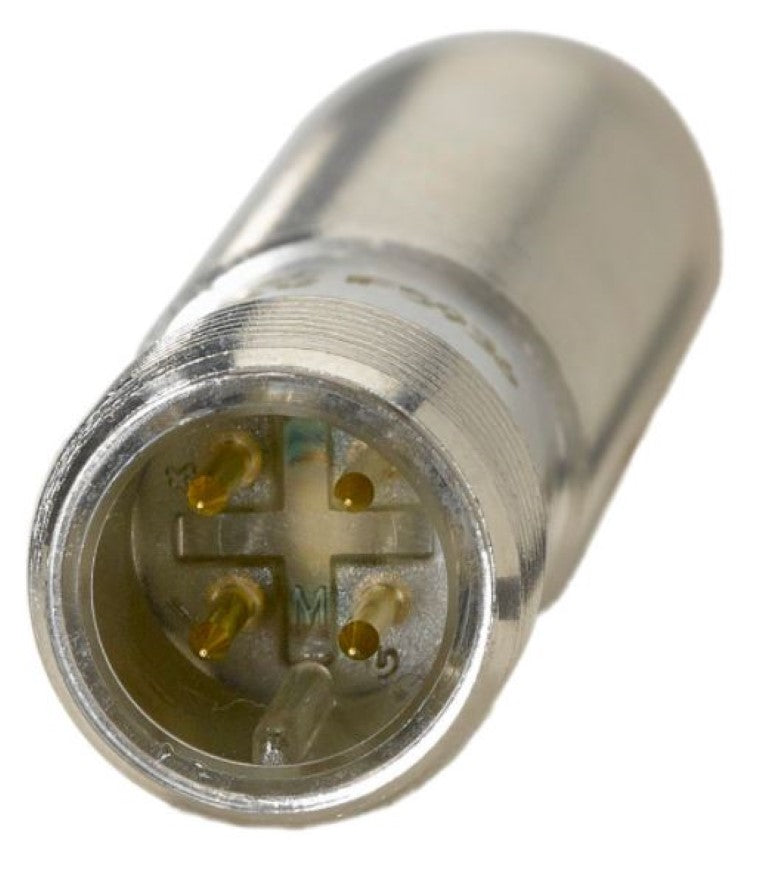

| Connector: 1 x M12; Contacts: gold-plated | |||||||||||||
