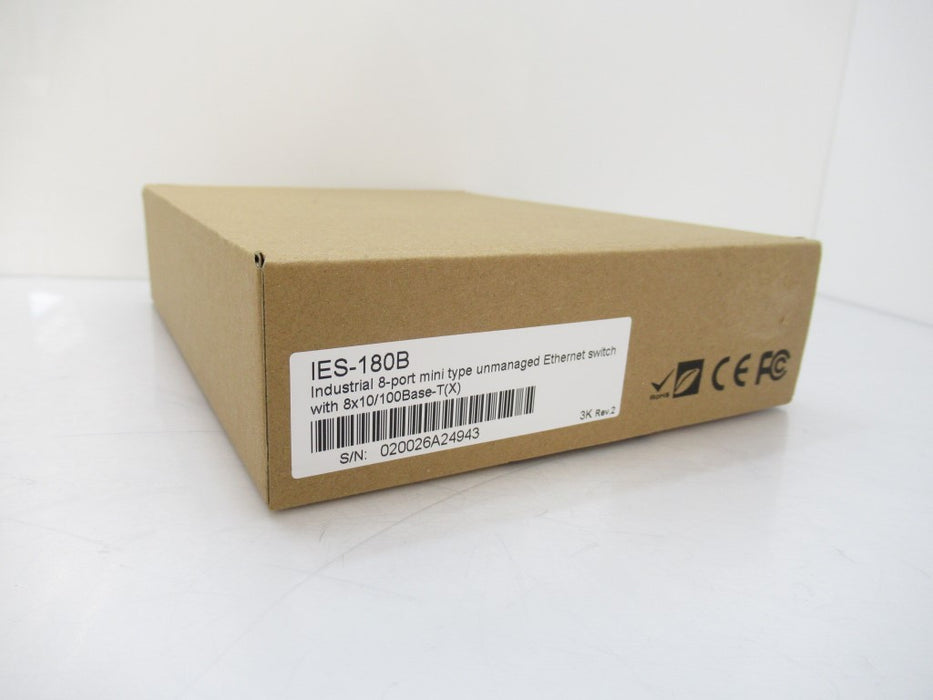

IES-180B ORing Industrial 8-Port Mini Type Unmanaged Ethernet Switch

Product Information

IES180B

Physical Ports

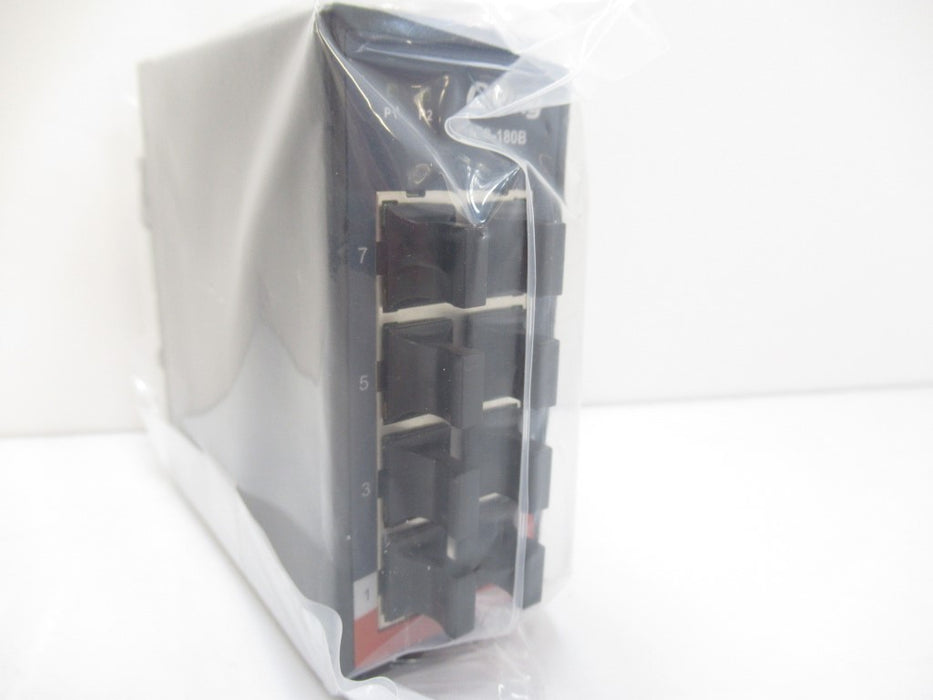

• 10/100Base-T(X) Ports In RJ45 Auto MDI/MDIX: 8

Technology

• Ethernet Standards: IEEE 802.3 For 10Base-T; IEEE 802.3u For 100Base-TX; IEEE 802.3x For Flow Control
• Mac Table: 1k Mac Addresses
• Processing: Store-And-Forward
• Switch Latency: <7us
• Switch Bandwidth: 1Gbps
• Packet Buffer Size: 448k bits

Led Indicators

• Power Indicator: Green; Power Led X 2
• Fault Indicator: Amber; Indicates Power Failure Occurred
• 10/100base-t(X) Rj45 Port Indicator: Upper For Link/Act Indicator, Green For Port Link/Act. Lower For Speed Indicator, Amber For 100Mbps, Off
  For 10Mbps

Fault Contact

• Relay: Relay Output To Carry Capacity Of 1A At 24V DC

Power

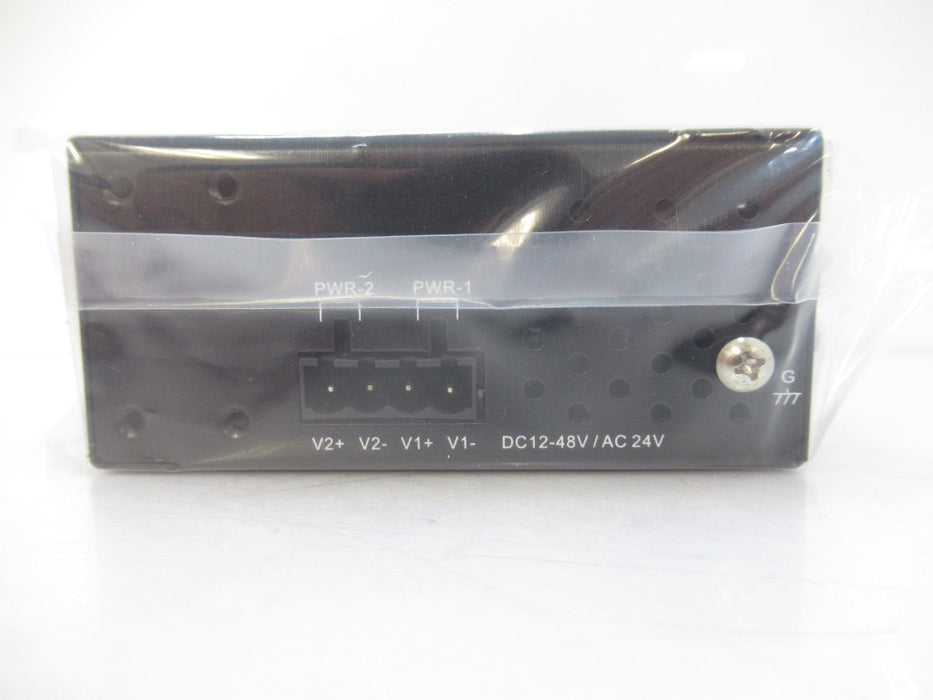

• Input Power: Dual 12-48 V DC Power Input On 4-Pin Terminal Block
• Power Consumption (TYP.): 4 Watts
• Overload Current Protection: Present
• Reverse Polarity Protection: Present

Physical Characteristics

• Enclosure: IP-30
• Dimensions: (W X D X H) 41 (W) X 90 (D) X 95 (H)mm (1.61 X 3.54 X 3.74 Inch)
• Weight (G): 383 G

Environmental

• Storage Temperature: -40 To 85°C (-40 To 185°F)
• Operating Temperature: -40 To 75°C (-40 To 167°F)
• Operating Humidity: 5% To 95% Non-Condensing

Regulatory Approvals

• EMI: FCC Part 15, CISPR (EN55022) Class A
• EMS: IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
• Shock: IEC60068-2-27
• Free Fall: IEC60068-2-32
• Vibration: IEC60068-2-6
• Safety: EN60950-1
