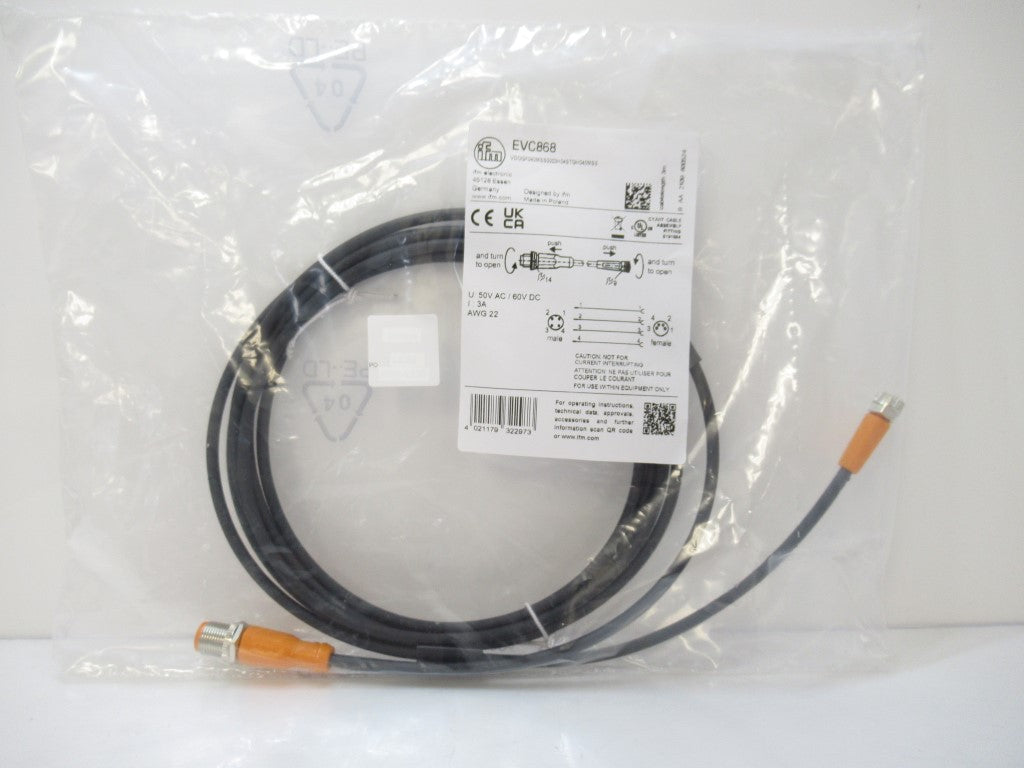

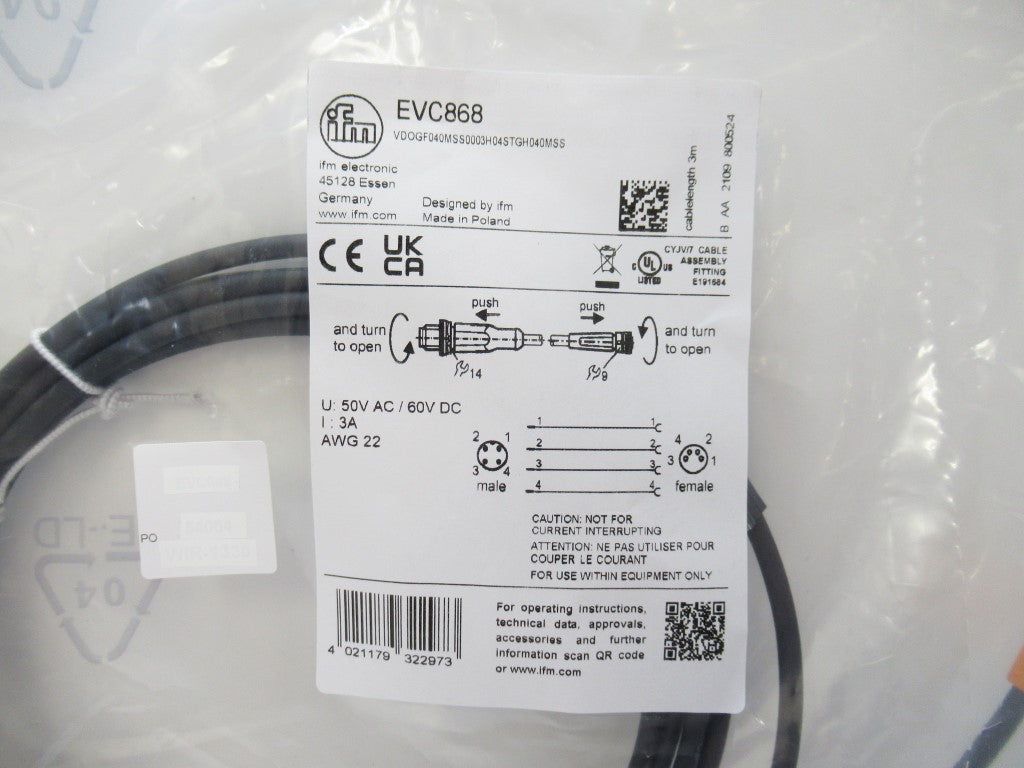

Ifm Electronic EVC868 Connection Cable For Sensors, 4-Pin AWG 22

Name: Ifm Electronic EVC868 Connection Cable For Sensors, 4-Pin AWG 22
Availability: OutOfStock

SKU WIR-1330-E

Sold out

$28.99 USD - $28.99 USD

$28.99 USD

$28.99 USD - $28.99 USD

$28.99 USD

Availability:

Out of stock

Quantity

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product Information

VDOGF040MSS0003H04STGH040MSS

Special Feature: Free From Silicone; Halogen-Free; Gold-Plated Contacts; Drag Chain Suitability
Operating voltage [V]: < 50 AC / < 60 DC
AWG 22
Protection class: III
Max. Current Load Total [A]: 3
Connection Cable: 3 m, PUR, Halogen-Free, Black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

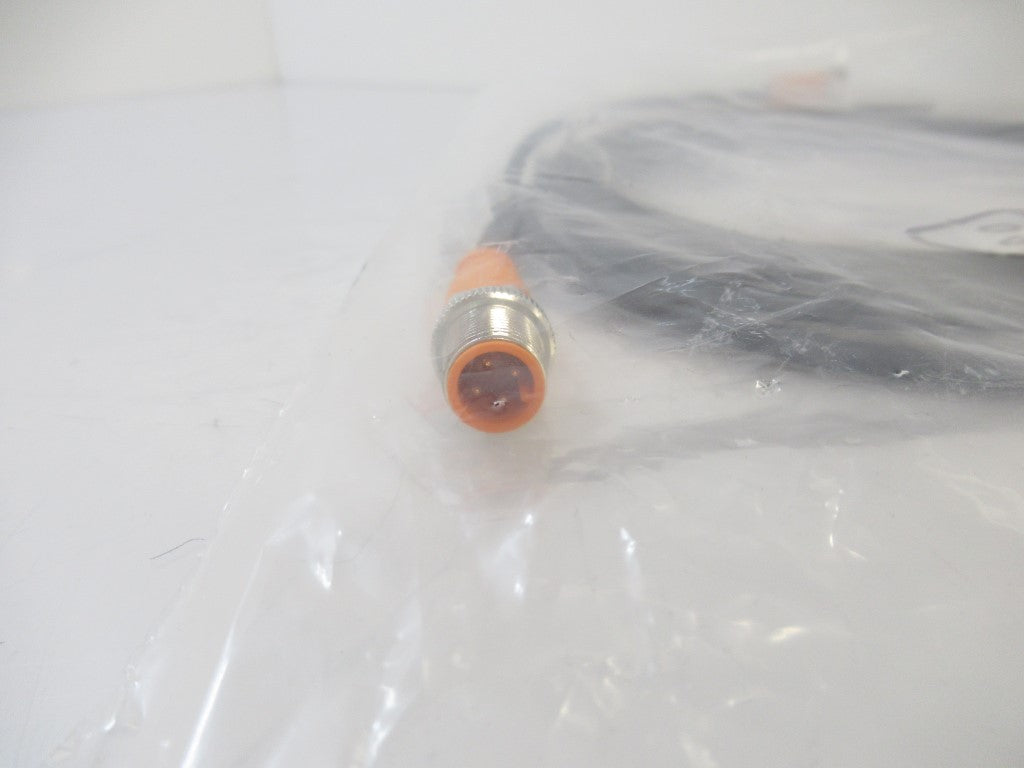

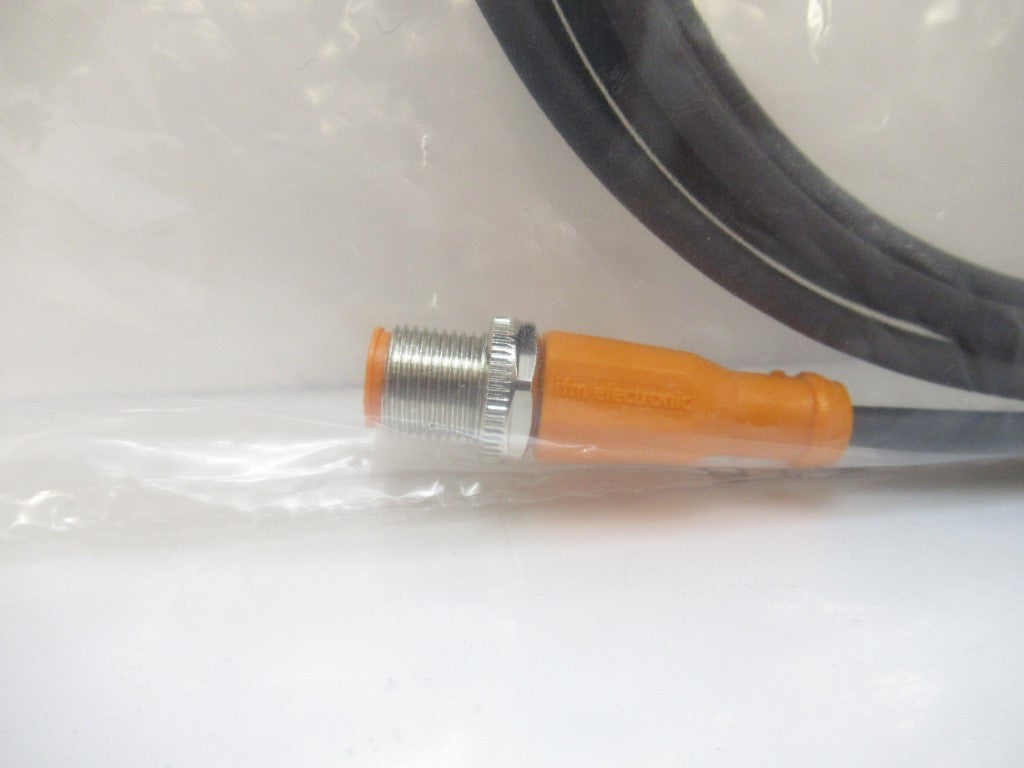

Connection - Plug: Connector 1 x M12, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.6...1.5 Nm

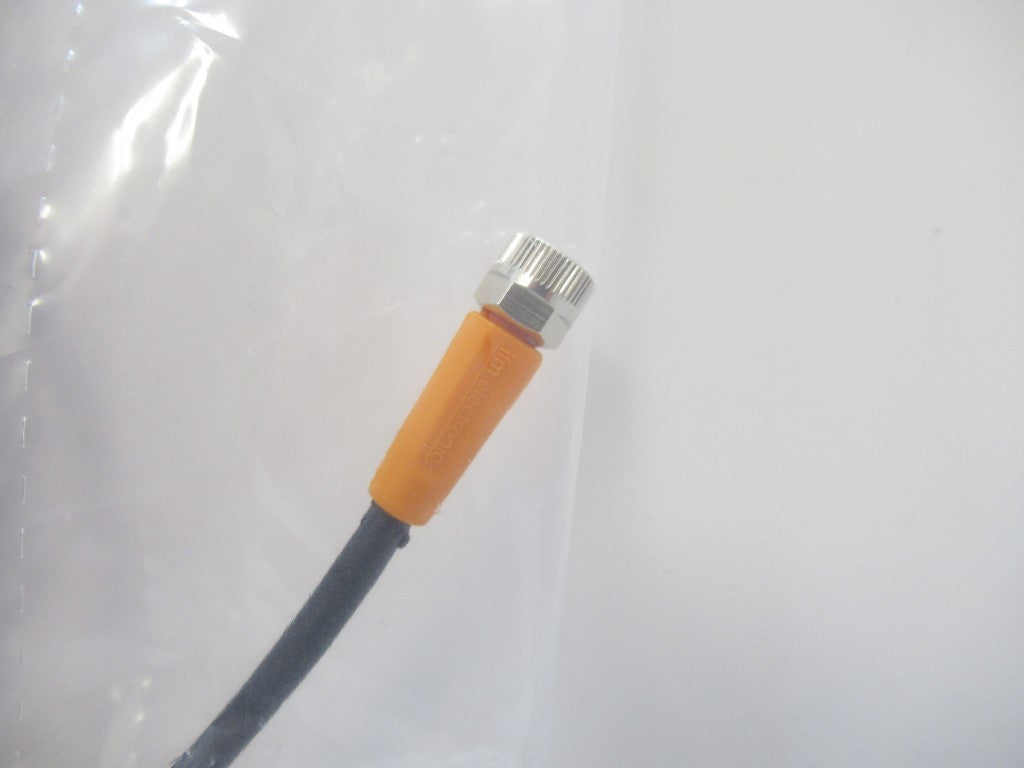

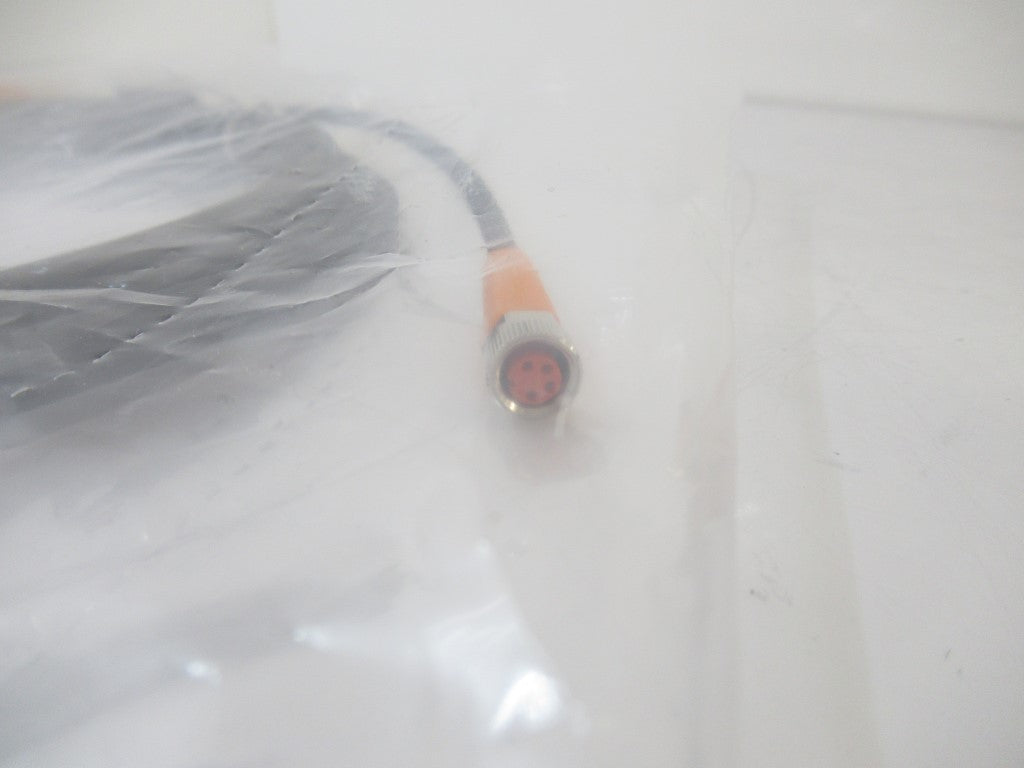

Connectiom - Socket: Connector: 1 x M8, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.3...0.5 Nm

Ifm Electronic EVC868 Connection Cable For Sensors, 4-Pin AWG 22
