ENC06A ADOAH040MSN0010H04/1G/1D Ifm Electronic Connecting Cable

ENC06A ADOAH040MSN0010H04/1G/1D ADOAH040MSN0010H041G1D

Ifm Electronic

Connecting Cable With Socket; 10 m; PUR; Housing Materials Housing: TPU Orange; Sealing: FKM; IP 67; (Outside Hazardous Areas: IP 68 / IP 69K); Free From Silicone Yes; Halogen-Free Yes; Gold-Plated Contacts Yes

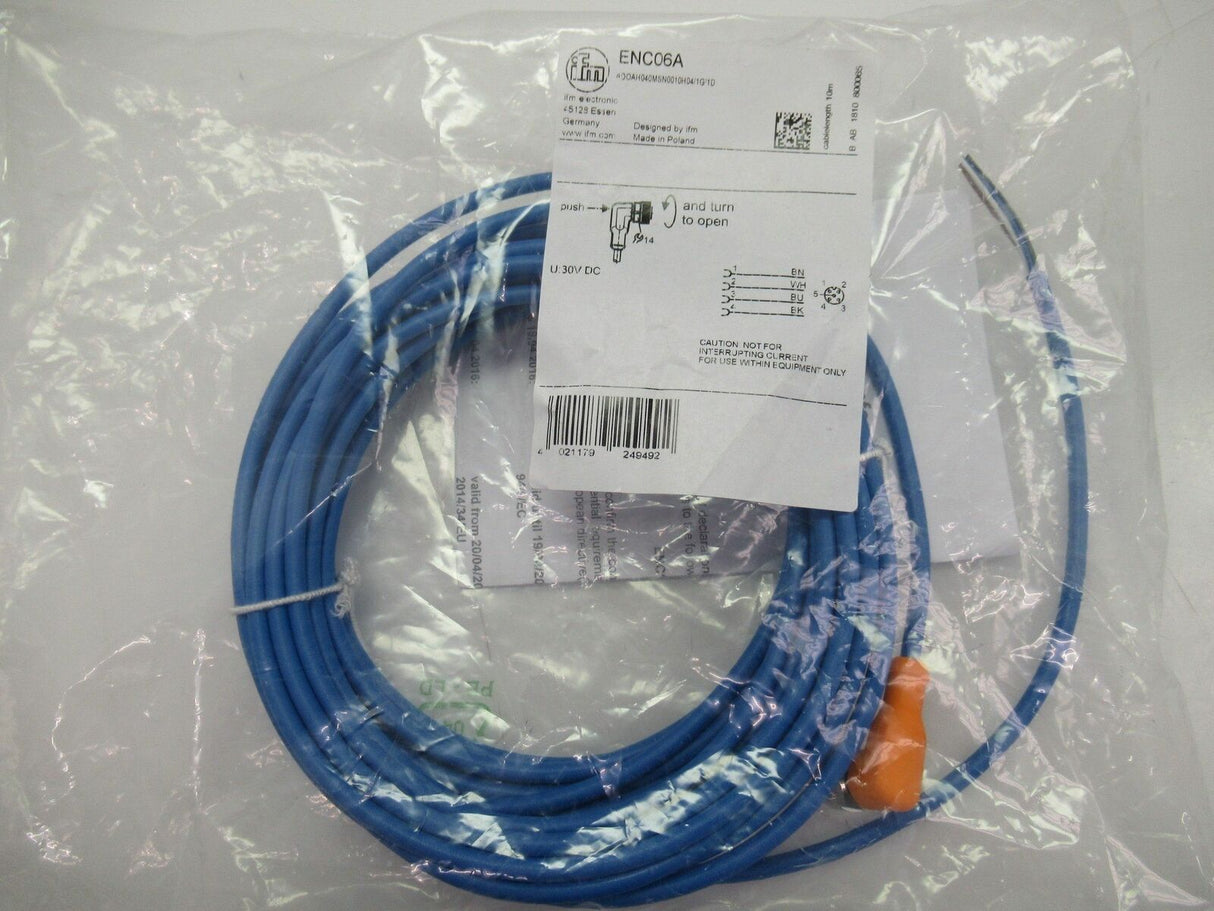

(New In Bag)

• For Applications In Hazardous Areas
• Permanent, Reliable Sealing Even When Mounted Without Tools
• High Protection Rating For The Requirements Of Harsh Industrial Environments
• Vibration And Shock Resistance Thanks To Coupling Ring With Locking Mechanism
• Mechanical End Stop To Protect The O-Ring From Destruction

Description

Application

• Special Feature Free From Silicone; Halogen-Free; Gold-Plated Contacts
• Free From Silicone: Yes
• Compatible With Paint: Yes

Electrical Data

• Operating voltage [V]: < 30 DC
• Protection Class: II
• Max. Input Power [mW]: Group II: 1000; Group IIIB: 1000; Group IIIC: 550 (Ta < 90 °C) / 650 (Ta < 70 °C) / 750 (Ta < 40 °C)
• Max. Current Load Total [A]: 1

Operating Conditions

• Ambient Temperature [°C]: -25...90
• Note On Ambient Temperature: For Use In Hazardous Areas: Ambient Temperature In Accordance With Unit Marking
• Protection: IP 67; (When Used Outside The Hazardous Area: IP 68 / IP 69K)

Mechanical Data

• Weight [g]: 346.7 (0,764 lb)
• Dimensions [mm]: 26.5 x 15.5 x 36.5
• Materials: Housing: TPU Orange; Sealing: FKM
• Material Nut: Brass, Nickel-Plated

Electrical Connection

• Cable: 10 m, PUR, Halogen-Free, Blue, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical Connection - Socket

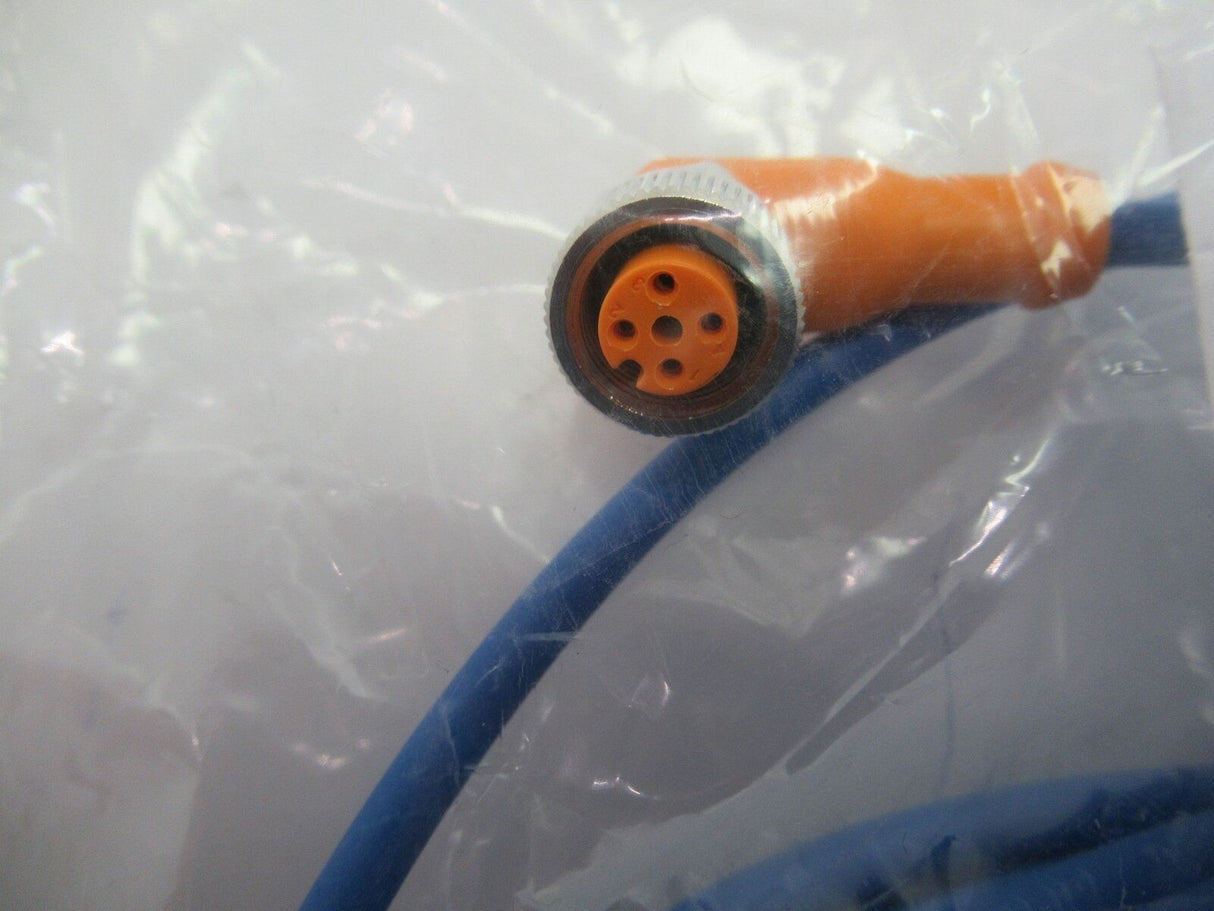

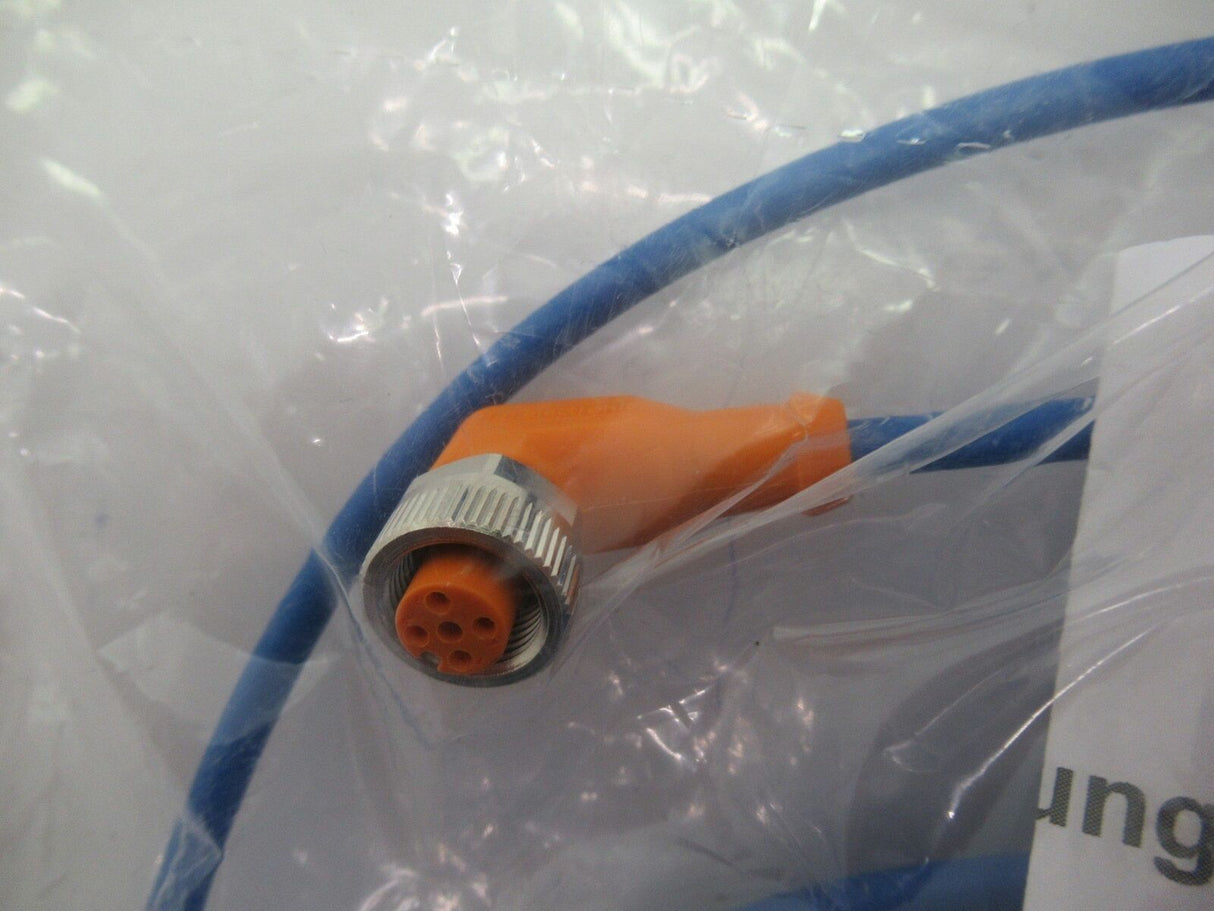

• Connection: Connector: 1 x M12, Angled; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.6...1.5 Nm
