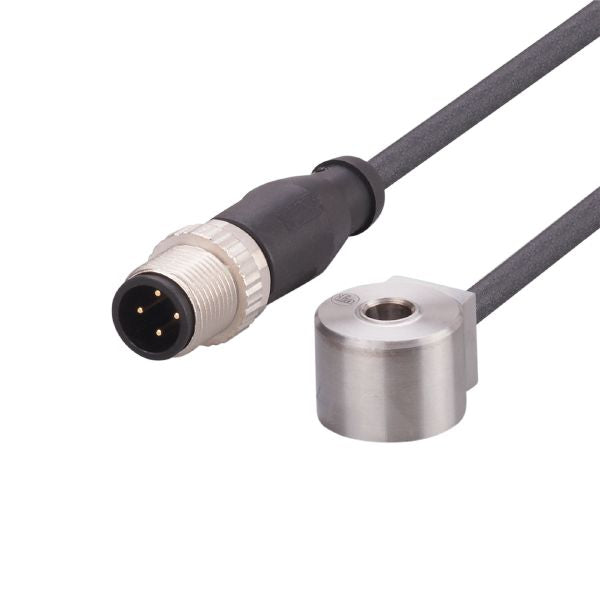

Efector IFM VSA008 Accelerometer
| Measuring range of vibration [g] | -25...25 |
|---|---|
| Frequency range [Hz] | 1...10000 |
| Measuring principle | capacitive |
| System | screened cable; Drag chain suitability |
|---|---|
| Design | for connection to external diagnostic electronics VSE |
| Application | vibration detection |
| Operating voltage [V] | 7.2...10.8 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of sensor | Microelectromechanical system (MEMS) |
| Analog current output [mA] | 0...10 |
|---|---|
| Max. load [Ω] | 300 |
| Measuring range of vibration [g] | -25...25 |
|---|---|
| Frequency range [Hz] | 1...10000 |
| Measuring principle | capacitive |
| Sensitivity [µA/g] | 142 |
| Number of measurement axes | 1 |
| Linearity deviation | 0,2 % |
|---|
| Ambient temperature [°C] | -30...80 |
|---|---|
| Storage temperature [°C] | -20...80 |
| Max. relative air humidity [%] | 80; (40 °C: 50 % non condensing) |
| Protection | IP 67 |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| UL approval |
|
| Weight [g] | 64.2 | ||||
|---|---|---|---|---|---|
| Type of mounting | mounting screw | ||||
| Material | housing: stainless steel (1.4404 / 316L) | ||||
| Tightening torque [Nm] | 5 | ||||
| Mechanische Überlastfestigkeit [g] | 500 | ||||
| Drag chain suitability | yes | ||||
| Drag chain suitability |
|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Cable: 0.5 m, PUR, screened; Maximum cable length: 250 m; 4 x 0.14 mm² | |
| Connector: M12; coding: A |
