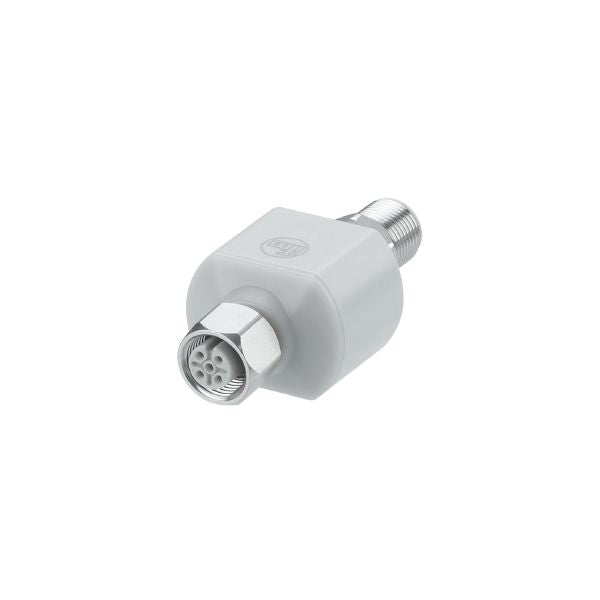

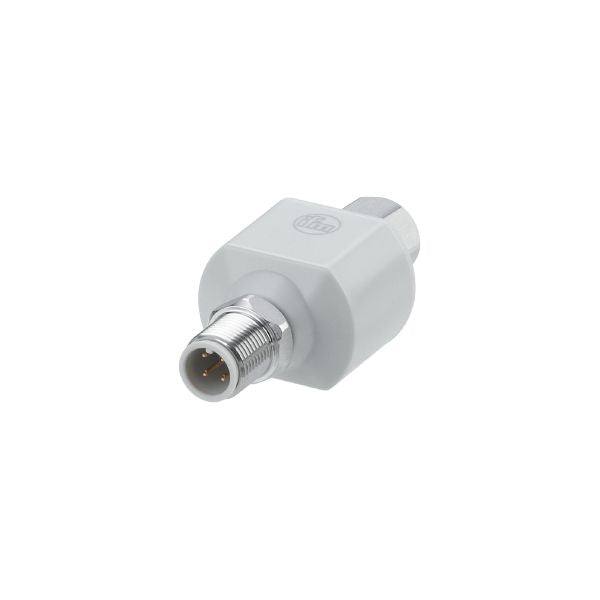

Efector IFM EIO104 Io-Link Master / Converter - 4...20 Ma
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|
| Design | integrated IO-Link master |
|---|
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 30 |
| Max. current load total [A] | 0.83 |
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|
| Number of analog outputs | 2 |
|---|---|
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Precision analog output [%] | 0,25 |
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 1 |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -40...70 |
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Protection | IP 67; IP 69K |
| MTTF [years] | 254 | ||||||
|---|---|---|---|---|---|---|---|
| UL approval |
|
| Weight [g] | 91.45 |
|---|---|
| Material | PA; stainless steel (1.4404 / 316L); FKM |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Notes | This converter only works in combination with appropriately specified ifm sensors (see device catalog under "Downloads") | |
| Pack quantity | 1 pcs. |
