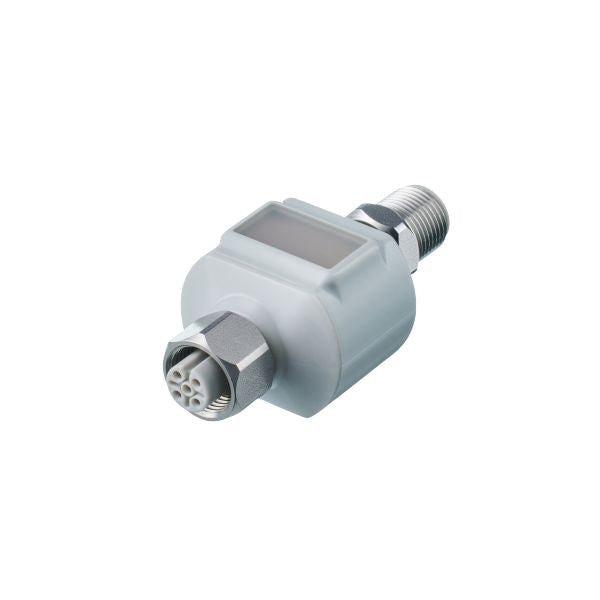

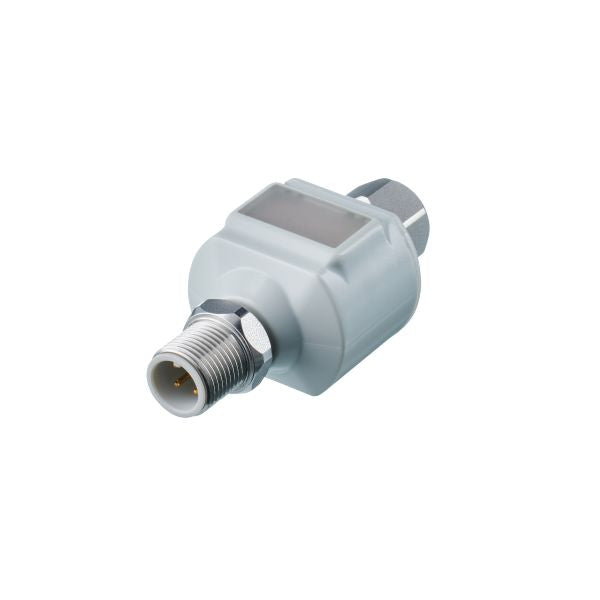

Efector IFM DP3223 Converter Io-Link - 0...10 V
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|---|
| Communication interface | IO-Link |
| Application | analog outputs controllable via IO-Link; for connecting analogously controlled actuators to an IO-Link system; for use in wet environments; indoor use |
|---|
| Operating voltage [V] | 18...30 DC; ((in wet environments: 18...28 V) to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | 300 |
| Max. current load total [A] | 0.2 |
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|
| Number of analog outputs | 2 |
|---|---|
| Analog voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 3000 |
| Precision analog output [%] | 0,25 |
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Smart Sensor | ||||||||
| SIO mode | no | ||||||||
| Required master port class | A/B | ||||||||
| Process data analog | 2 | ||||||||
| Min. process cycle time [ms] | 3.6 | ||||||||
| IO-Link process data (cyclical) |
|
||||||||
| IO-Link functions (acyclical) | application specific tag | ||||||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...70 | |||
|---|---|---|---|---|
| Note on ambient temperature |
|
|||
| Storage temperature [°C] | -25...70 | |||
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) | |||
| Max. height above sea level [m] | 4000 | |||
| Protection | IP 67; IP 69K | |||
| Degree of soiling | 2 |
| MTTF [years] | 432 |
|---|
| Weight [g] | 78.5 |
|---|---|
| Weight (without accessories and packaging) [g] | 26.5 |
| Dimensions [mm] | 63 x 30 x 24.5 |
| Material | housing: PA |
| Material nut | stainless steel (1.4404 / 316L) |
| Sealing material | FKM |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); sealing: FKM |
| Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L) |
