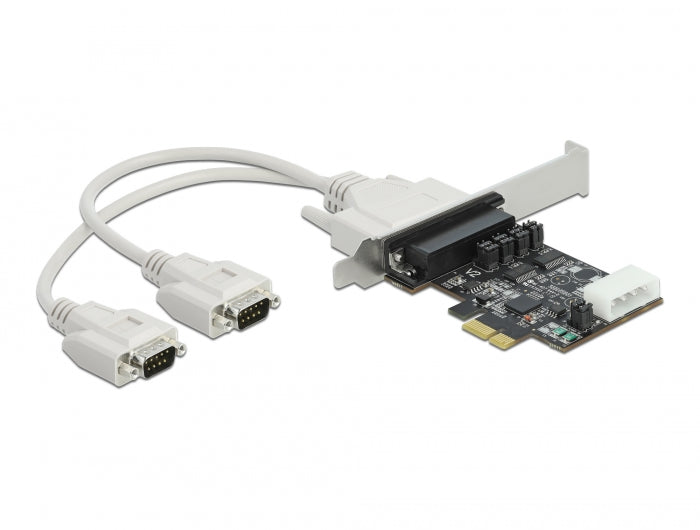

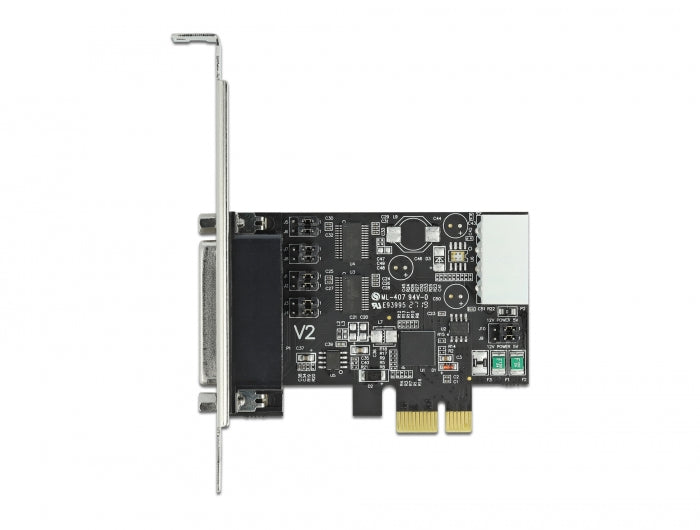

Delock 89909 Pci Express X1 Card To 2 X Serial Rs-232

• Connectors:
internal:
1 x PCI Express x1, V2.0
1 x power connector 4 pin Molex male
external:
1 x DB44 female
connecting cable: DB44 male > 2 x serial RS-232 DB9 male
• Chipset: MaxLinear 17V352
• Compatible with 16C550 UART
• Data transfer rate up to 230.4 Kbps
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• FIFO: 256 byte
• ±15 kV ESD protection on all signal pins
• 5 V or 12 V can be set individually for each port through the jumper (Pin 1/4/8/9)
• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)
• Electrical power per port: max. 18 watt (12 V / 1.5 A)
• I/O address and IRQ assigned by BIOS
• Dimensions (LxW): ca. 80 x 55 mm
