Delock 87750 Displayport 1.4 Switch 2 X 2 Displayport In To 1 X 2 Displayport
Delock 87750 Displayport 1.4 Switch 2 X 2 Displayport In To 1 X 2 Displayport is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Delock 87750 Displayport 1.4 Switch 2 X 2 Displayport In To 1 X 2 D...

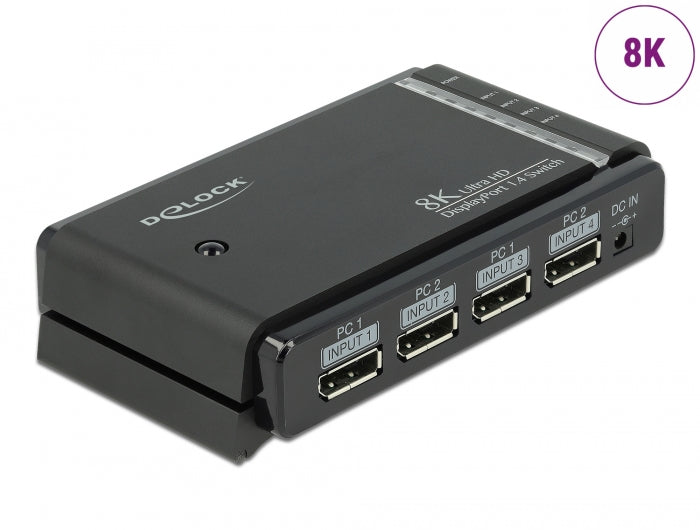

Input:
2 x 2 DisplayPort 20 pin female
1 x DC 5 V power connector

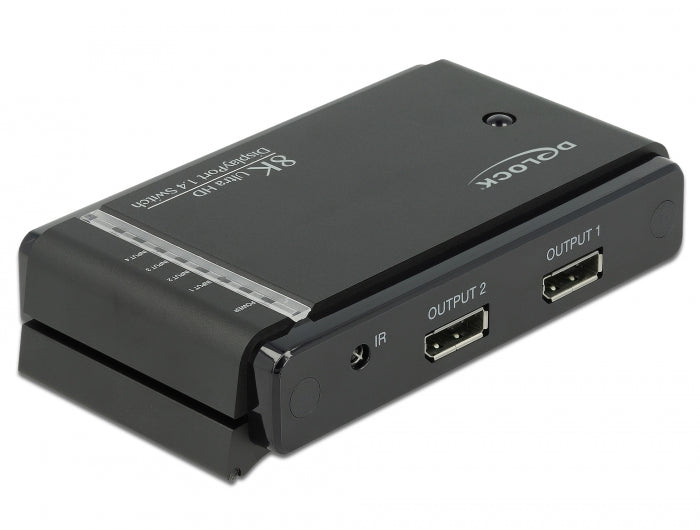

Output:
1 x 2 DisplayPort 20 pin female
• Switching via button or infrared remote control
• LED indicator for active port
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• DisplayPort output supports Dual Mode DP++
• Transmission of audio and video signals
• Resolution up to:
DisplayPort output:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 120 Hz
2560 x 1440 @ 144 Hz
(depending on the system and the connected hardware)
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 130 x 74 x 30 mm

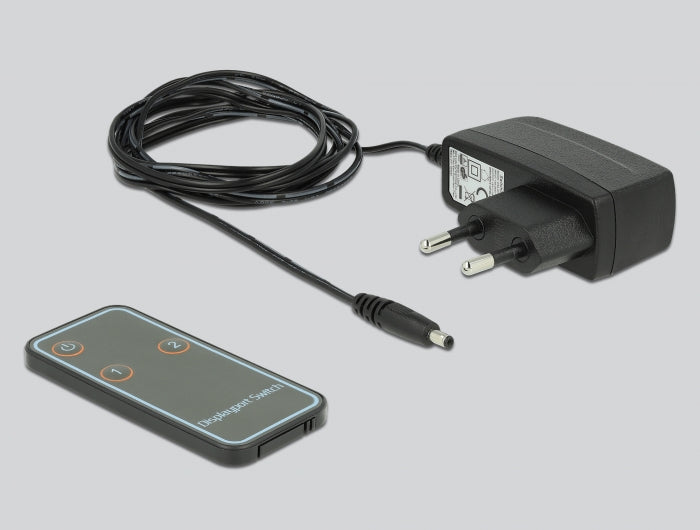

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5.0 V / 1.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 7.0 mm
