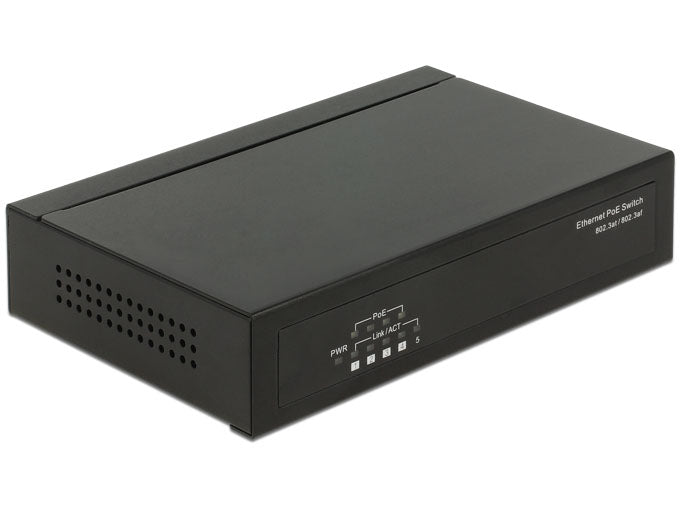

Delock 87682 10/100 Ethernet Switch Poe+ 4+1 Port
Delock 87682 10/100 Ethernet Switch Poe+ 4+1 Port is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
4 x RJ45 jack for 10/100 Mb/s Ethernet (PoE+)
1 x RJ45 jack for 10/100 Mb/s Ethernet (Uplink)
1 x DC jack 5.5 x 2.1 mm (power)
• Data transfer rate up to 100 Mb/s
• LEDs for status monitoring: Power, Link / Activity, PoE
• Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
• Supports IEEE 802.3at (PoE+) and 802.3af (PoE)
• Spare-Pairs power transmission (Mode B, pairs 4/5 and 7/8)
• Power supply: max. 30 W per PoE Port, max. 60 W total
• Power consumption: max. 72 W
• Metal housing
• Fanless
• Dimensions (LxWxH): ca. 141 x 94 x 26 mm

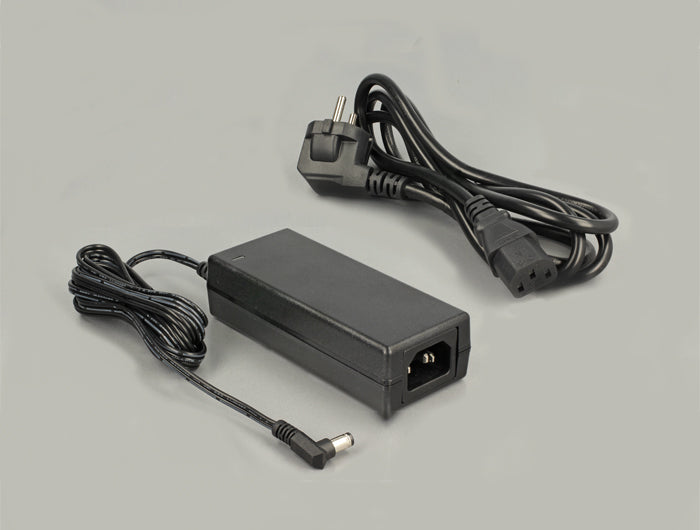

Power supply specification
• Power supply with IEC connector
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 2.0 A
• Output: DC 52 V / 1.38 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
