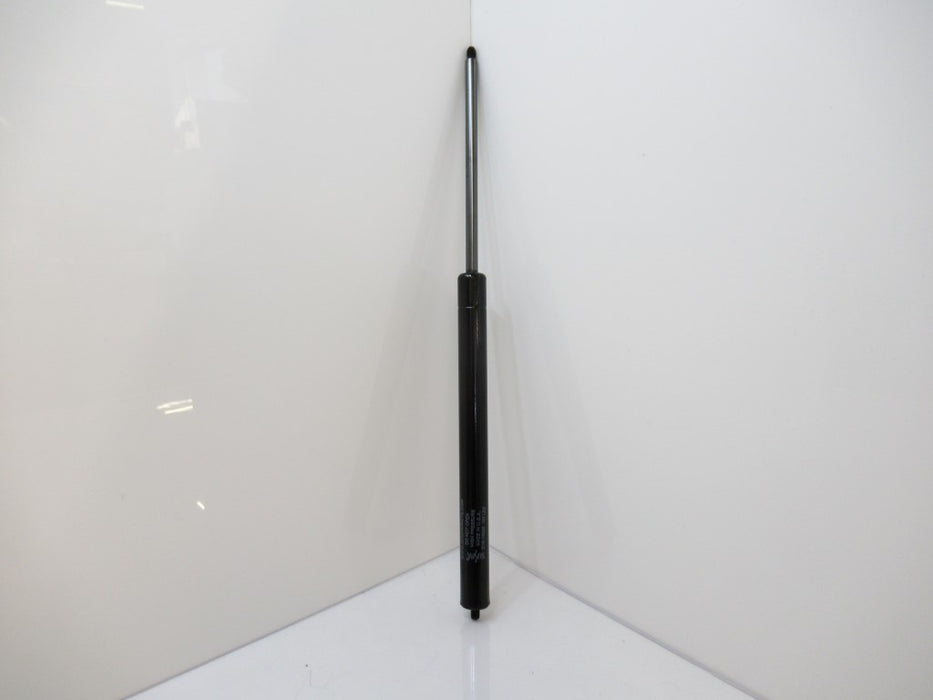

Suspa C16-18828 Gas Spring, 13.74" Extended Length, Ext. Force 100 lbs
Suspa C16-18828 Gas Spring, 13.74" Extended Length, Ext. Force 100 lbs is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Suspa C16-18828 Gas Spring, 13.74" Extended Length, Ext. Force...
Product Information
| Extended Length | 13.74" |
| Compressed Length | 8.27" |
| Stroke Length | 5.47" |
| Compression Force | 122 lbs. |
| Mounting Orientation | Horizontal, Vertical with Rod Down |
| Maximum Cycles per Minute | 6 |
| Maximum Cycles | 25,000 |
| Force Mechanism | Compressed Nitrogen Gas and Oil |
| Refillable | No |
| Lockable | No |
| Body Diameter | 0.73" |
| Body Finish | Steel |
| Seal Material | Rubber |
| Rod | |
| Diameter | 0.31" |
| Thread Size
|
M6
|
| Thread Pitch | 1 mm |
| Material | Steel |
| End Thread Size
|
M6
|
| End Thread Pitch | 1 mm |
| Temperature Range | -22° to 176° F |
| Extension Force | 100 lbs. |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemptions 6(a)-I, 6(b)-II, and 6(c) - Lead as an alloying element in steel and aluminum and in copper alloy |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | No |
| Schedule B | 848790.0080 |
