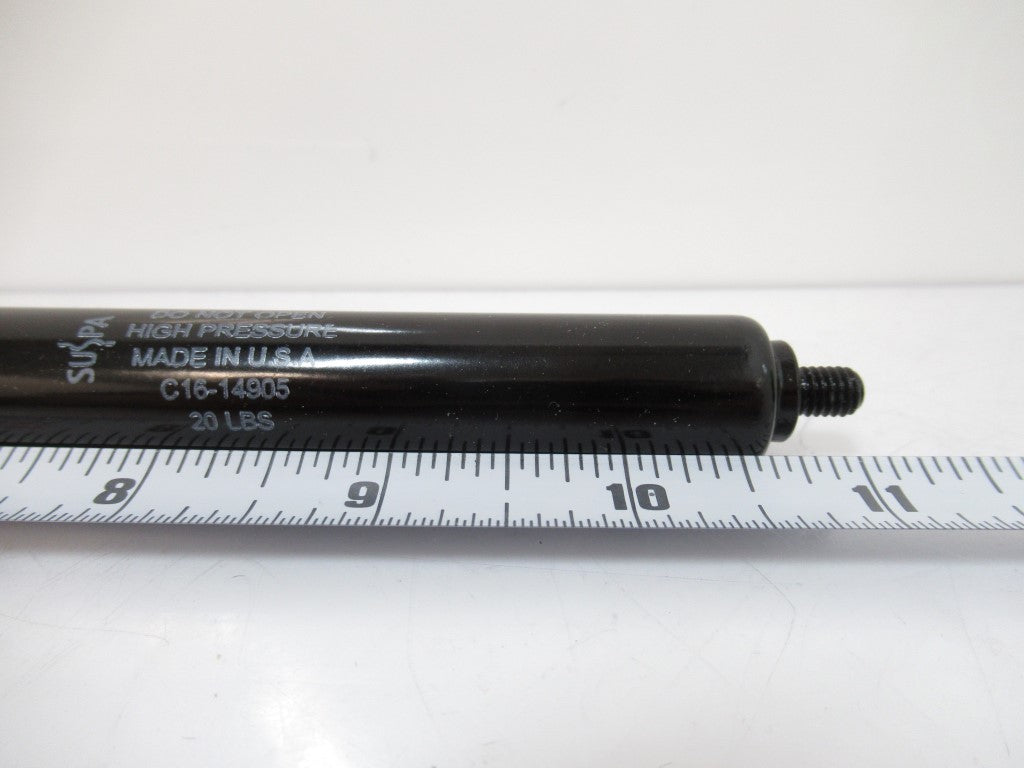

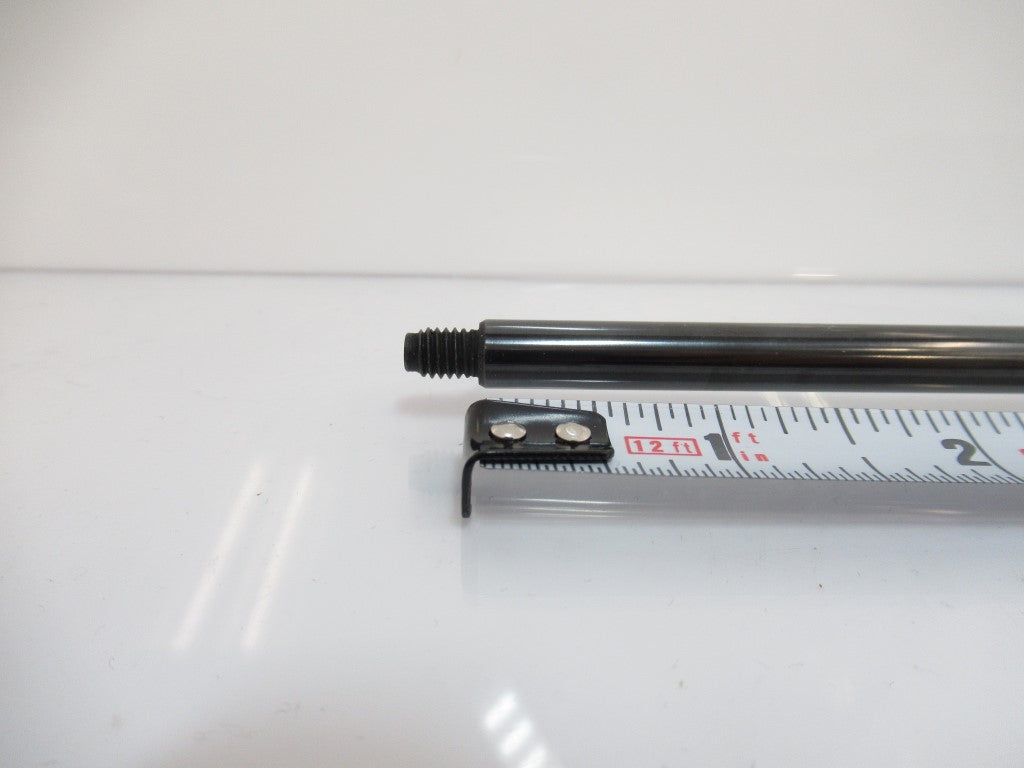

Suspa C16-14905 Gas Spring 10.71" Extended Length, 20 lbs, Sold By Unit

Name: Suspa C16-14905 Gas Spring 10.71" Extended Length, 20 lbs, Sold By Unit
Availability: InStock

SKU QUIN-4974-E

$24.60 USD - $24.60 USD

$24.60 USD

$24.60 USD - $24.60 USD

$24.60 USD

Availability:

Only 4 left!

Quantity

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Suspa

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product Information

C1614905 (20 lbs)

Extended Length	10.71"
Compressed Length	6.77"
Stroke Length	3.94"
Compression Force	24 lbs.
Mounting Orientation	Horizontal, Vertical with Rod Down
Maximum Cycles per Minute	6
Maximum Cycles	25,000
Force Mechanism	Compressed Nitrogen Gas and Oil
Refillable	No
Lockable	No
Body Diameter	0.73"
Body Finish	Steel
Seal Material	Rubber
Rod
Diameter	0.31"
Thread Size	M6
Thread Pitch	1 mm
Material	Steel
End Thread Size	M6
End Thread Pitch	1 mm
Temperature Range	-22° to 176° F
Extension Force	20 lbs.
RoHS	RoHS 3 (2015/863/EU) compliant with exemptions 6(a)-I, 6(b)-II, and 6(c) - Lead as an alloying element in steel and aluminum and in copper alloy
REACH	REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	848790.0080

Suspa C16-14905 Gas Spring 10.71" Extended Length, 20 lbs, Sold By Unit
