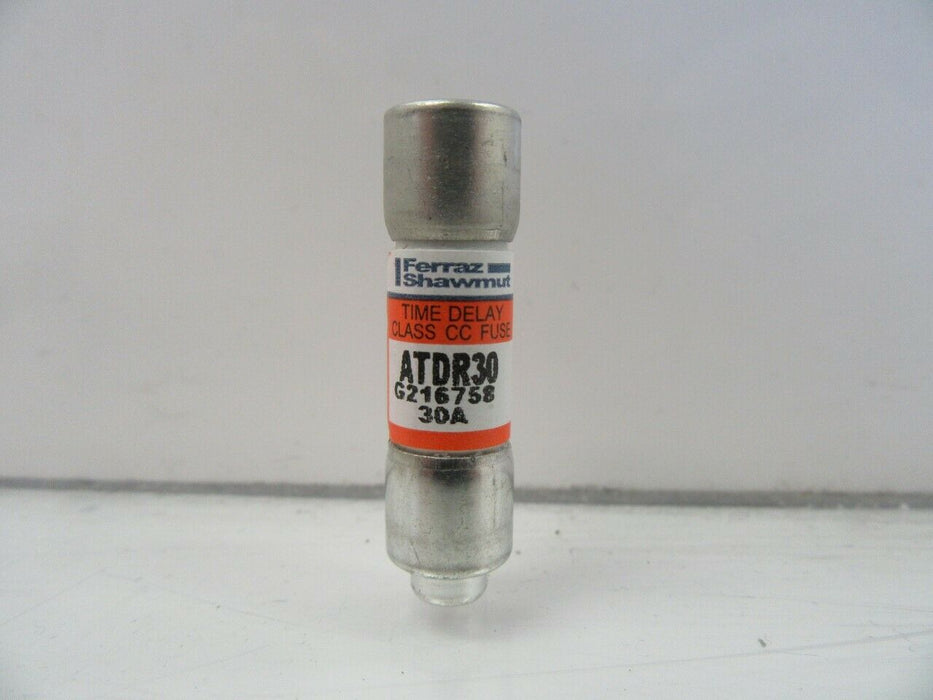

ATDR30 Mersen Ferraz Shawmut Time Delay Fuse 600V AC / 30 A
ATDR30 Mersen Ferraz Shawmut Time Delay Fuse 600V AC / 30 A is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
ATDR30
Mersen Ferraz Shawmut
Description:
Fuse Time-Delay Class CC Current Limiting 200kA AC/100kA DC 600VAC/300VDC 30A
(Sold By Unit, New)
Product Specifications
| Application | Small Motors Contactors Lighting Heaters General Loads | |
| Body Material | Glass | |
| Class | Class CC | |
| Contact Material | Tin-plated Copper | |
| Current Rating | 30 A | |
| Diameter | 0.86 | |
| Length | 2.28 | |
| Primary Type | Single Use Fuses | |
| Series | ||
| Speed | Time Lag | |
| Standards | UL Listed to Standard 248-4, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.4 | |
| Termination | Cartridge | |
| Type | Cylindrical Fuses | |
| Voltage Rating | 600 VAC ; 300 VDC | |
| Weight | 0.1 |
Overview
Amp-Trap 2000® SmartSpot AJT fuses now provide a visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features:
- Solid-State SmartSpot visual blown fuse indicator
- Time-delay for motor starting and transformer inrush
- 300kA interrupting rating - self-certified, UL witnessed tests
- Extremely current-limiting for low peak let-thru current
- Most current-limiting UL class fuse
- Recommended for Arc Flash energy reduction
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique Class J dimensions prevent replacement errors
- High-visibility orange label gives instant brand recognition
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching
- Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
Applications:
- Motor circuits
- Mains
- Feeders
- Branch circuits
- Lighting, heating & general loads
- Transformers
- Control panels
- Circuit breaker back-up
- Bus duct
- Load centers
