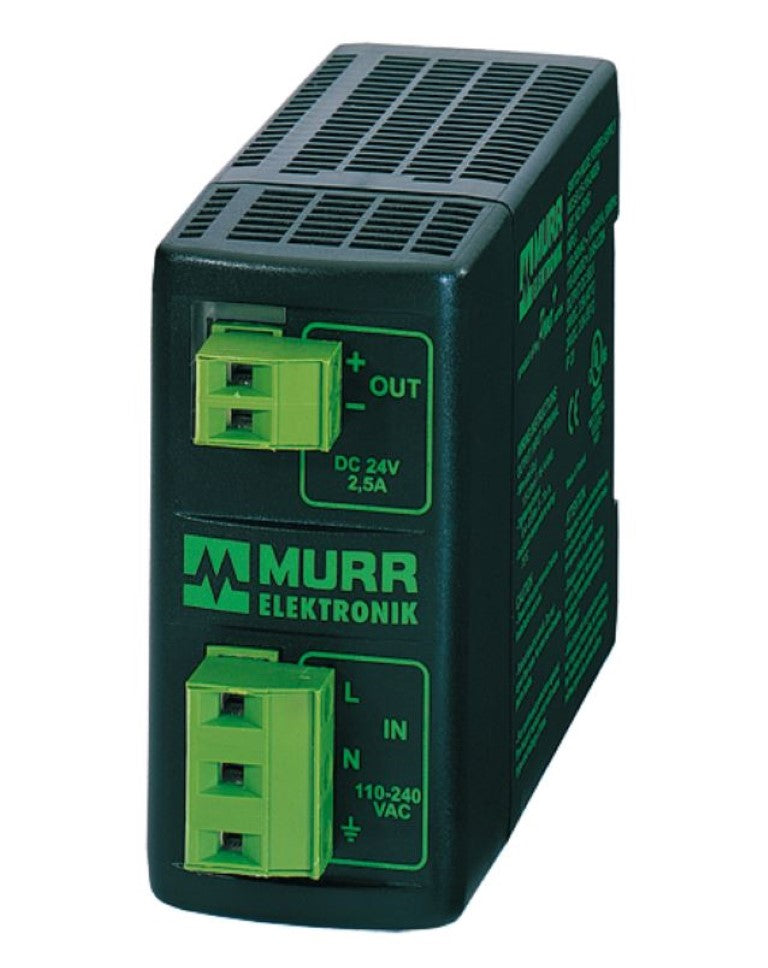

MurrElektronik 85162 MCS-B Power Supply 1 Phase, DIN-Rail Mountable TH35

MurrElektronik 85162 Power Supply 1 Phase, DIN-Rail Mountable TH35

Name: MurrElektronik 85162 Power Supply 1 Phase, DIN-Rail Mountable TH35
Availability: InStock

SKU POW-0054-E

$51.34 USD - $51.34 USD

$51.34 USD

$51.34 USD - $51.34 USD

$51.34 USD

Availability:

Only 1 left!

Quantity

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by MurrElektronik

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product Information

GENERAL DATA

Standards	IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
Relative humidity	5...95%, no condensation
Efficiency	85% (110 V AC); 87% (230 V AC)
Dimensions H×W×D	76×38×108 mm
Mounting method	DIN-rail mountable TH35 (EN 60715)
Temperature range	-25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C)

OUTPUT

Output voltage	24 V DC (SELV), ±1%; 22...28 V adjustable
Output current	2.5 A (+40 °C); 2.0 A (+55 °C)
Mains failure bridging time	min. 15 ms (110 V AC); min. 80 ms (230 V AC)
Ripple	max. 50 mV eff/rms
Spikes	max. 120 mV ss/pp
Unit protection	short-circuit and overload protected
LED display	LED (green) for output voltage
Parallel usage/serial usage	max. 5 units/max. 2 units

INPUT

Input voltage	95...265 V AC; 110...300 V DC
Input current	1.04 A (110 V AC); 0.63 A (230 V AC)
Inrush current after 1 ms	max. 20 A
Primary fusing external	max. 10 A
Frequency	50...60 Hz

MurrElektronik 85162 Power Supply 1 Phase, DIN-Rail Mountable TH35
