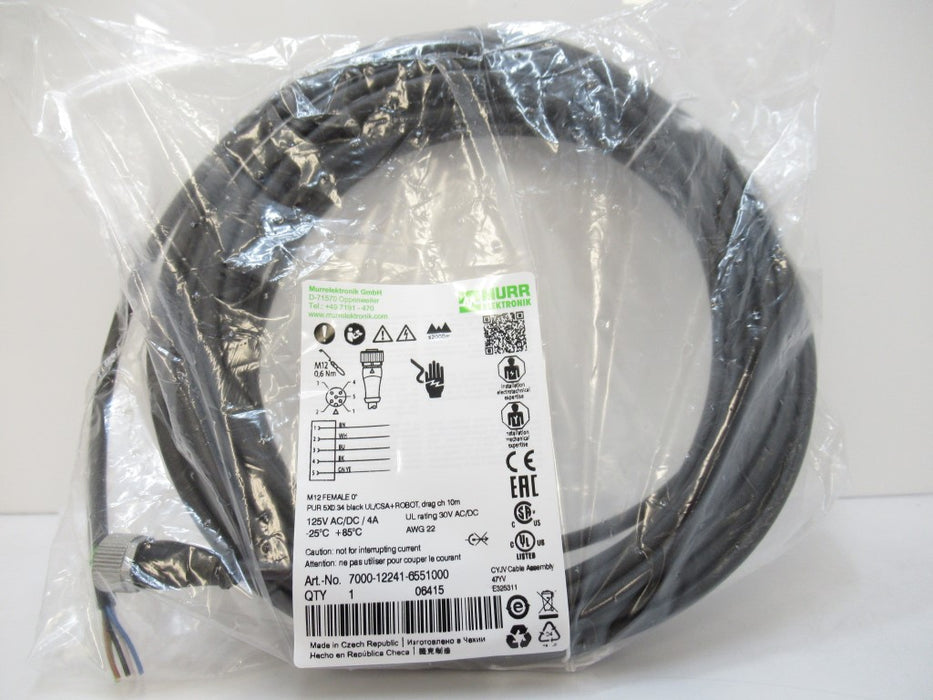

MurrElektronik 7000-12241-6551000 GmbH M12 Female With Cable

SKU WIR-0881-E
Original price $36.00 USD - Original price $36.00 USD
Original price
$36.00 USD
$36.00 USD - $36.00 USD
Current price $36.00 USD
Availability:
Only 1 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

PUR 5X0.34 Black UL / CSA + ROBOT, Drag Ch 10m

  • 7000122416551000
  • Operating Voltage: Max. 125 V AC/DC
  • Operating Voltage (Only Ul Listed): Max. 30 V AC/DC
  • Rated Surge Voltage: 1.5 KV
  • Operating Current Per Contact: Max. 4 A
  • No. Of Poles: 5
  • AWG: Similar To AWG 22
  • Material Group: IEC 60664-1, Category I
  • Coding: A-Coded
  • Led Display: no
  • Locking Of Ports: Screw Thread (M12×1 mm) Recommended Torque 0.6 mm, Self-Securing
  • Compression Gland: M12 (SW13)
  • Protection: IP65, IP66k, IP67 Inserted And Tightened (En 60529)
  • Material: PUR
  • Suitable For Corrugated Tube (Internal Ø): 10 mm
  • Locking Material: Zinc Die Casting, Save-Cover Coated
  • Standards: DIN EN 61076-2-101 (M12)
