3000-33113-3020075 Murrelektronik Miro Safe + E 24

Product Information

3000331133020075

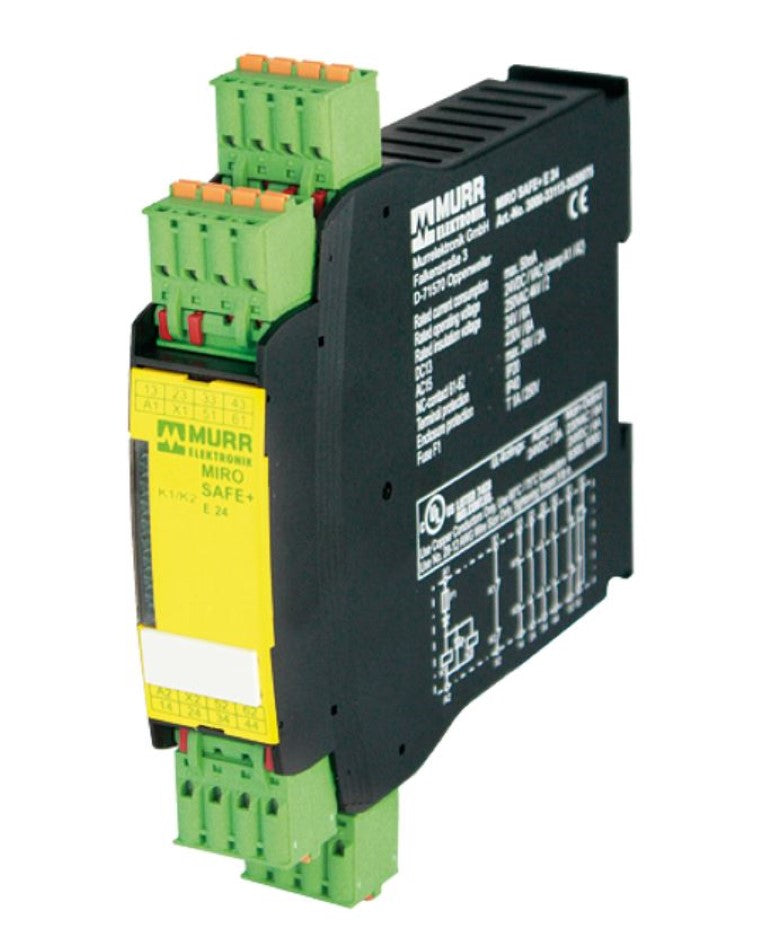

Miro Safe + E 24  24V AC/DC - 4 N/O Contact / 2 N/C Contact

• 6 A
• Expansion Modules

General Data

• Mech./ Elect. Life: 10 000 000 Switching Cycles/Load Dependent
• Connection: Spring Clamp Plug-In Terminals
• Mounting Method Din-Rail Mountable (EN 60715)

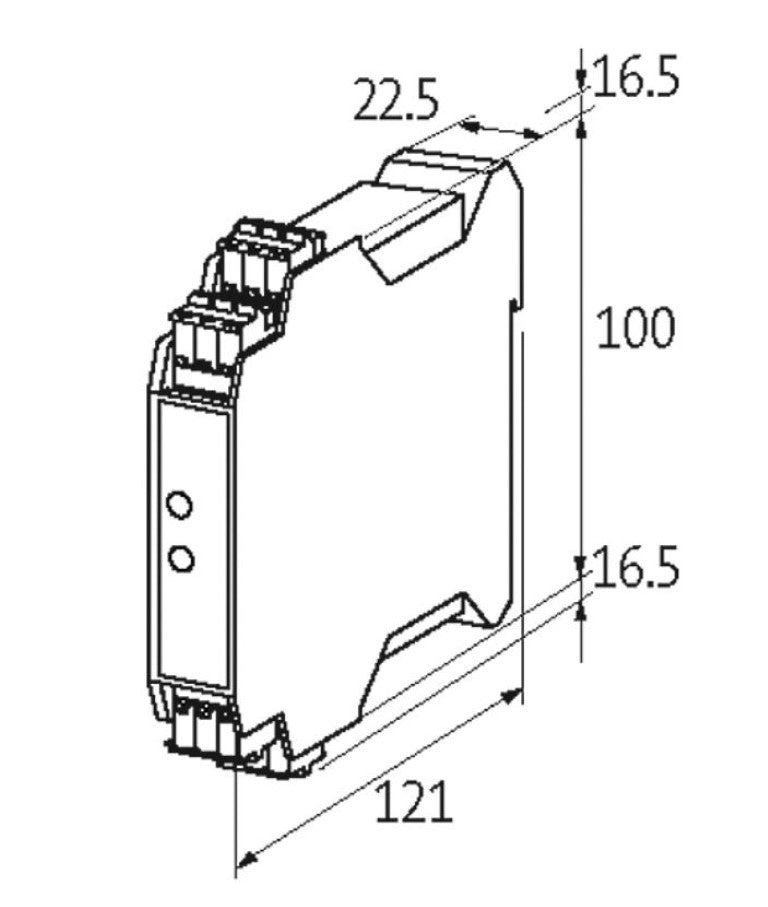

• Dimensions H×W×D: 100×22.5×121 mm
• Temperature Range: -25...+45 °C (Storage Temperature -40...+85 °C)

Output

• Switching Voltage: Max. 250 V AC/DC
• Switching Current Per Output: Max. 6 A

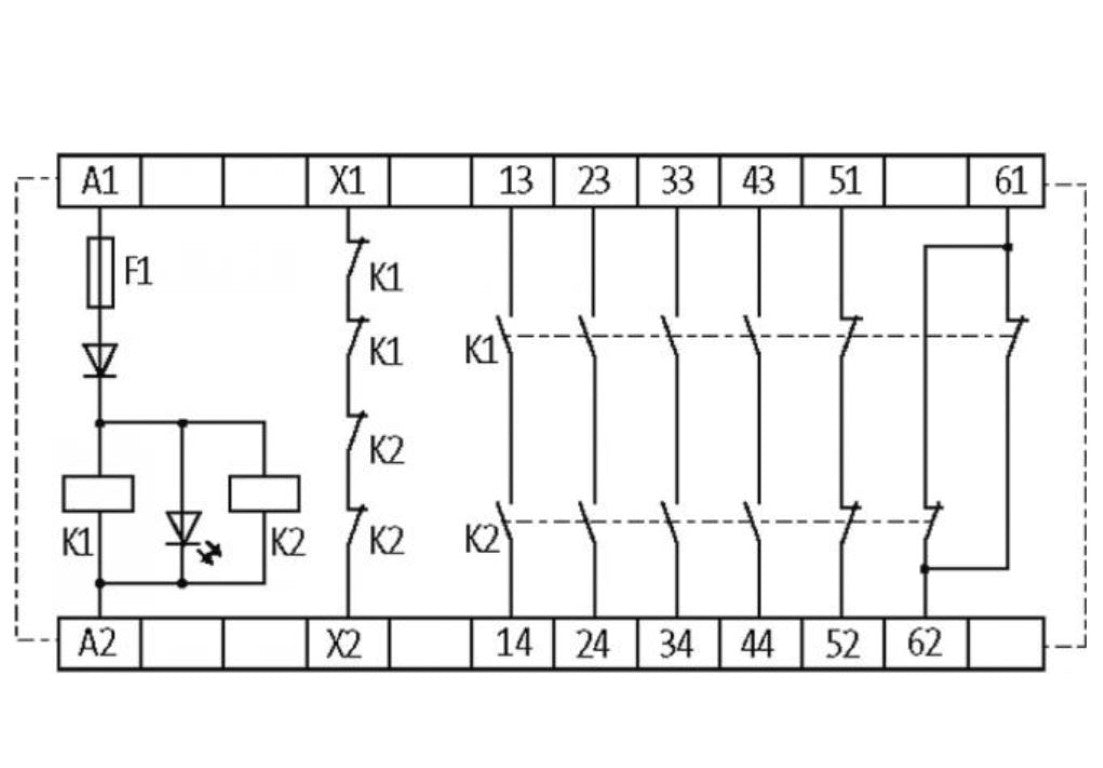

• No. Of Auxiliary Contacts: 2 - (51-52); (61-62)
• No. Of Alarm Outputs: 0
• No. Of Contacts: 4 - (13-14); (23-24); (33-34); (43-44)
• Contact Material: Ag Sn O, Self Cleaning, Positively Driven

Input

• Input Voltage: 24 V DC (-15 +20%), 24 V AC (-15 +10%)
• Input Current: Max. 1.0 VA

Utilization Category

• Safety Contacts (Stop 0): Max. 250 V AC/6 A; Min. 10 V AC/10 mA (Resist./Ind.), At Suitable Suppression
• AC-15: 6 A (230 V AC)
• DC-13: 6 A (24 V DC)

Safety Indicators

• PL: Up To E
• Category: Up To 4
• Sil: Up To 3
• Service Life: 20 Years
