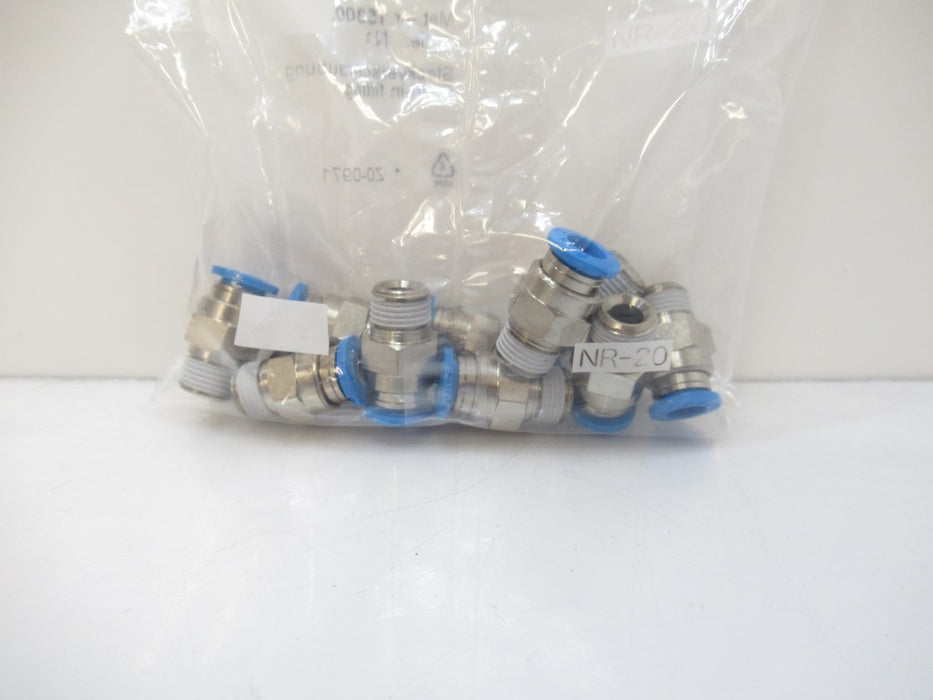

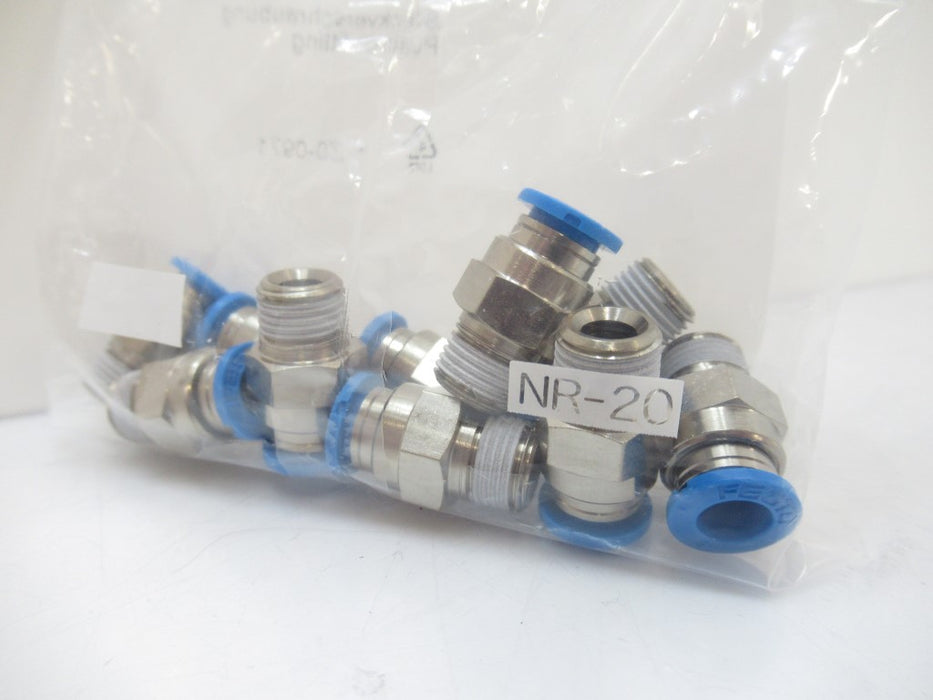

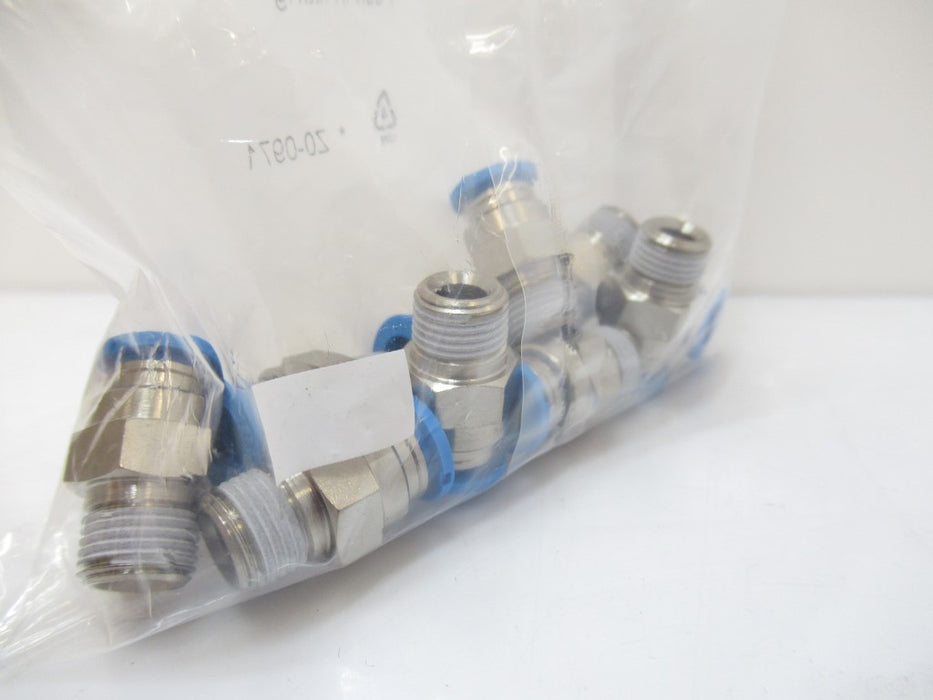

153002 QS-1/8-6 Festo Push-In Fitting

Product Information

Sold Per Pack Of 10

• QS186
• Size: Standard
• Nominal Width: 5 mm
• Type Code: Qs
• Type Of Seal On Screwed Trunnion: Coating
• Mounting Position: Any
• Design: Push-Pull Principle
• Operating Pressure For Entire Temperature Range: -0.95 bar ... 6 bar
• Temperature-dependent Operating Pressure: -0.95 bar ... 14 bar
• Information On Operating And Pilot Media: Operation With Oil Lubrication Possible
• Corrosion Resistance Class (Crc): 1 - Low Corrosion Stress
• Ambient Temperature: -10 °C ... 80 °C
• Product Weight: 8.2 G (0.02 lb)
• Pneumatic Connection 1: External Thread R1/8
• Pneumatic Connection 2: For Pneumatic Tubing Outside Diameter 6 mm
• Releasing Ring Color: Blue
• Note On Materials: Rohs-Compliant
• Housing Material: Brass, Nickel-Plated
• Releasing Ring Material: POM
• Material Of Tubing Seal: NBR
• Material Of Tube Retaining Claw: High-Alloy Stainless Steel
