12540 Century Spring Regular Compression Spring In Steel 4.5 Coils, Sold By Unit

12540 Century Spring Regular Compression Spring In Steel 4.5 Coils

SKU SPG-0149-E
$7.45 USD - $7.45 USD
$7.45 USD
$7.45 USD - $7.45 USD
$7.45 USD
Availability:
9 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Century Spring

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product Information

Sold By Unit

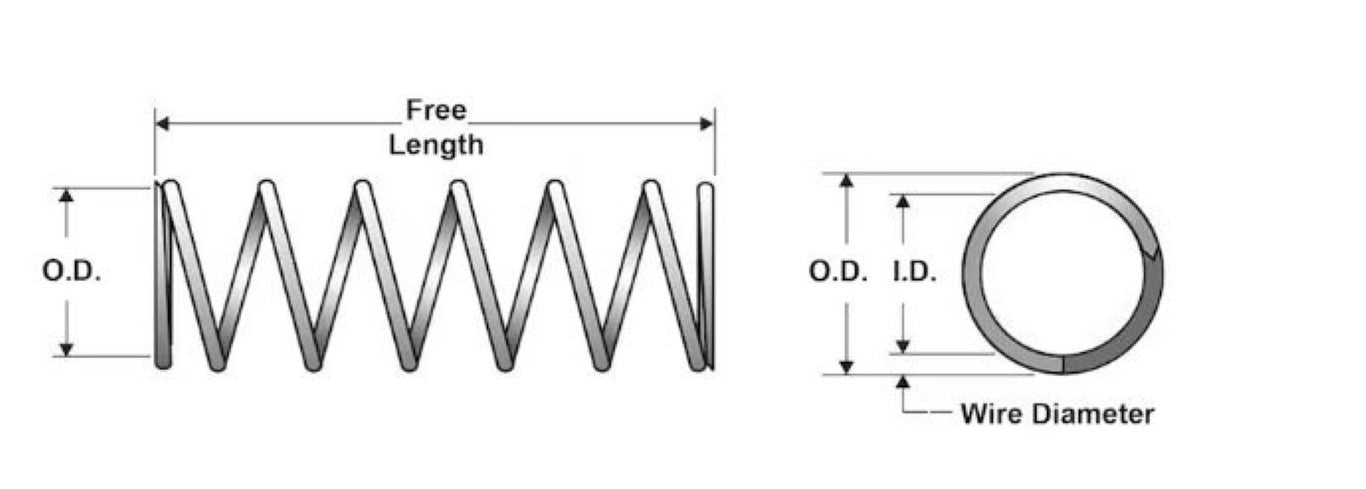

Regular compression spring in Spring Steel with 4.5 total coils and Closed ends. This spring features an O.D. of 1.188 Inch, an I.D. of 1.028 Inch, and a spring rate of 17 Inch Pounds.

Ends Closed
Finish None
Free Length 1.38 in
Inside Diameter 1.028 in
Material Spring Steel
Outside Diameter 1.188 in
Part Type Standard
Rate 17 lbs/in
Solid Length 0.44 in
Suggested Max Deflection 0.86 in
Suggested Max Load 15 lbs
Total Coils 4.5000
Wire Diameter 0.08 in
