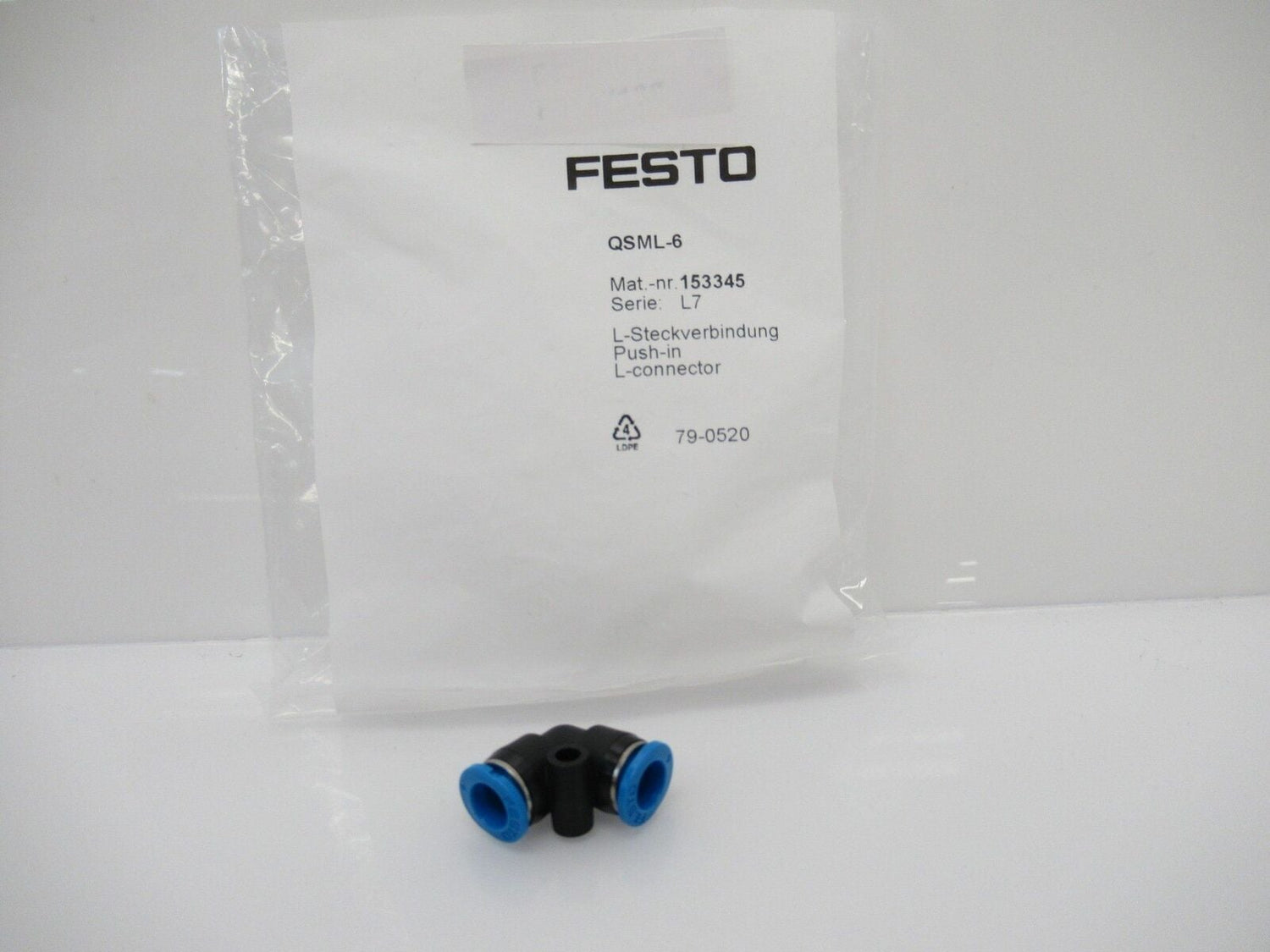

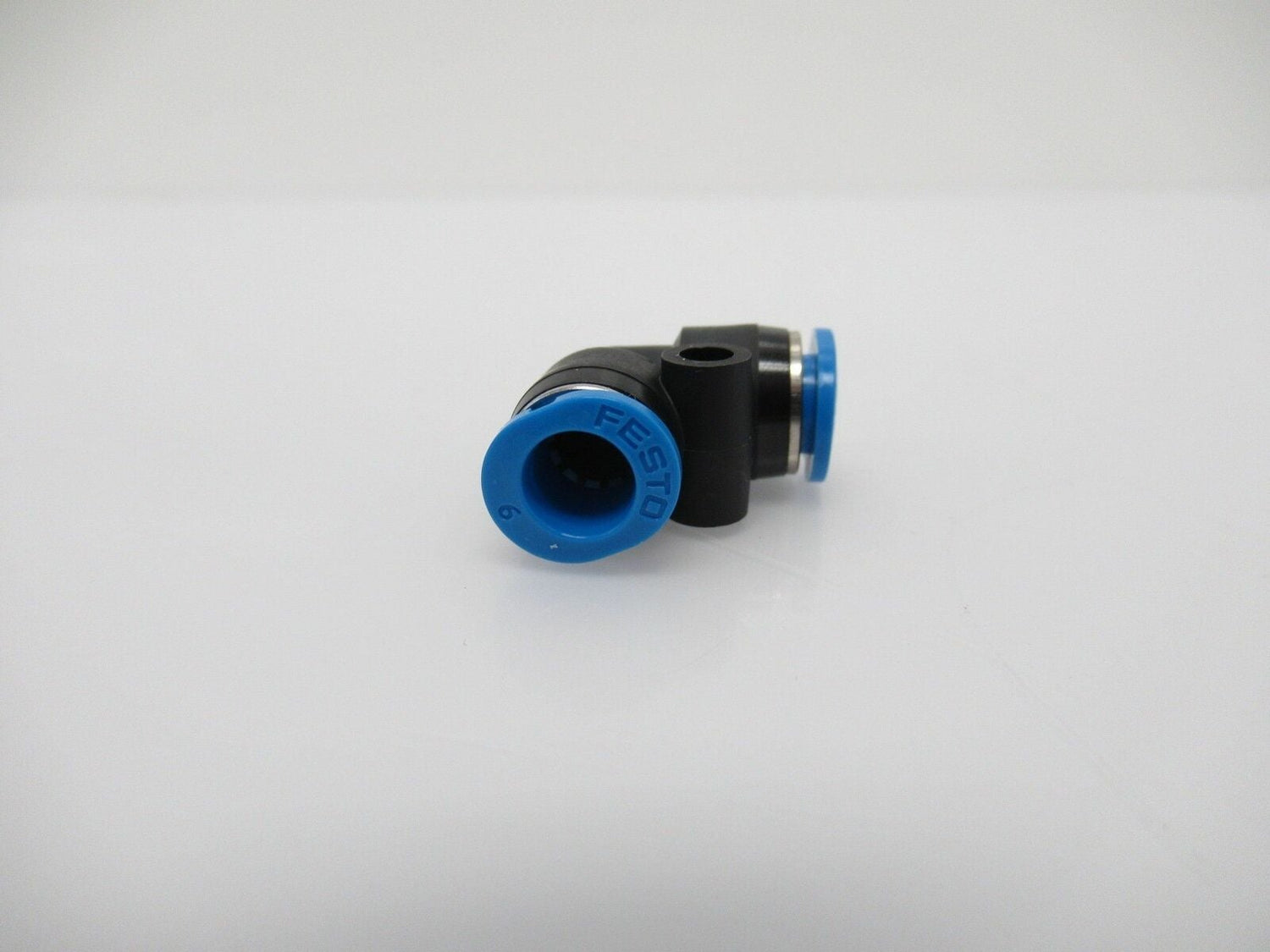

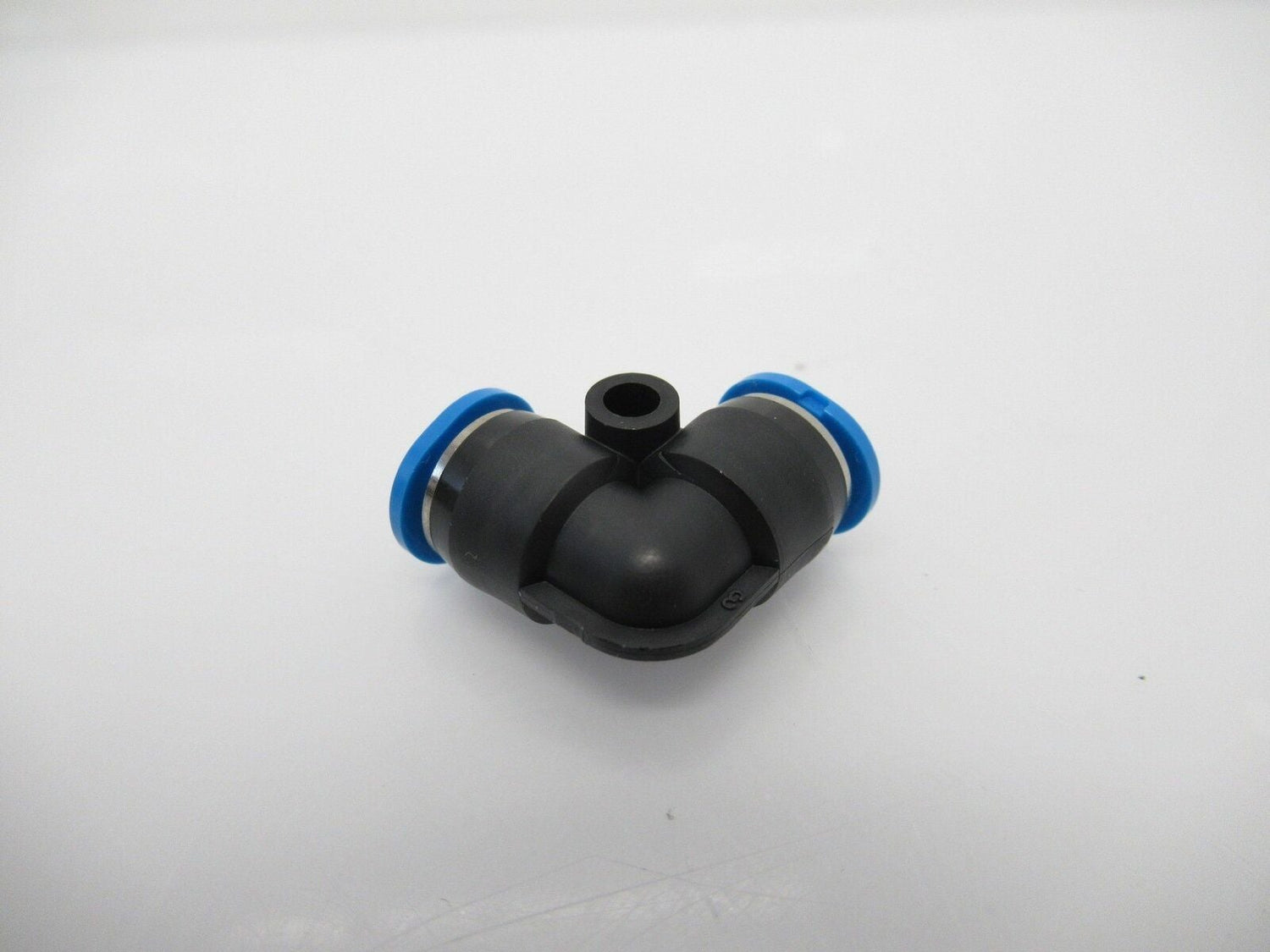

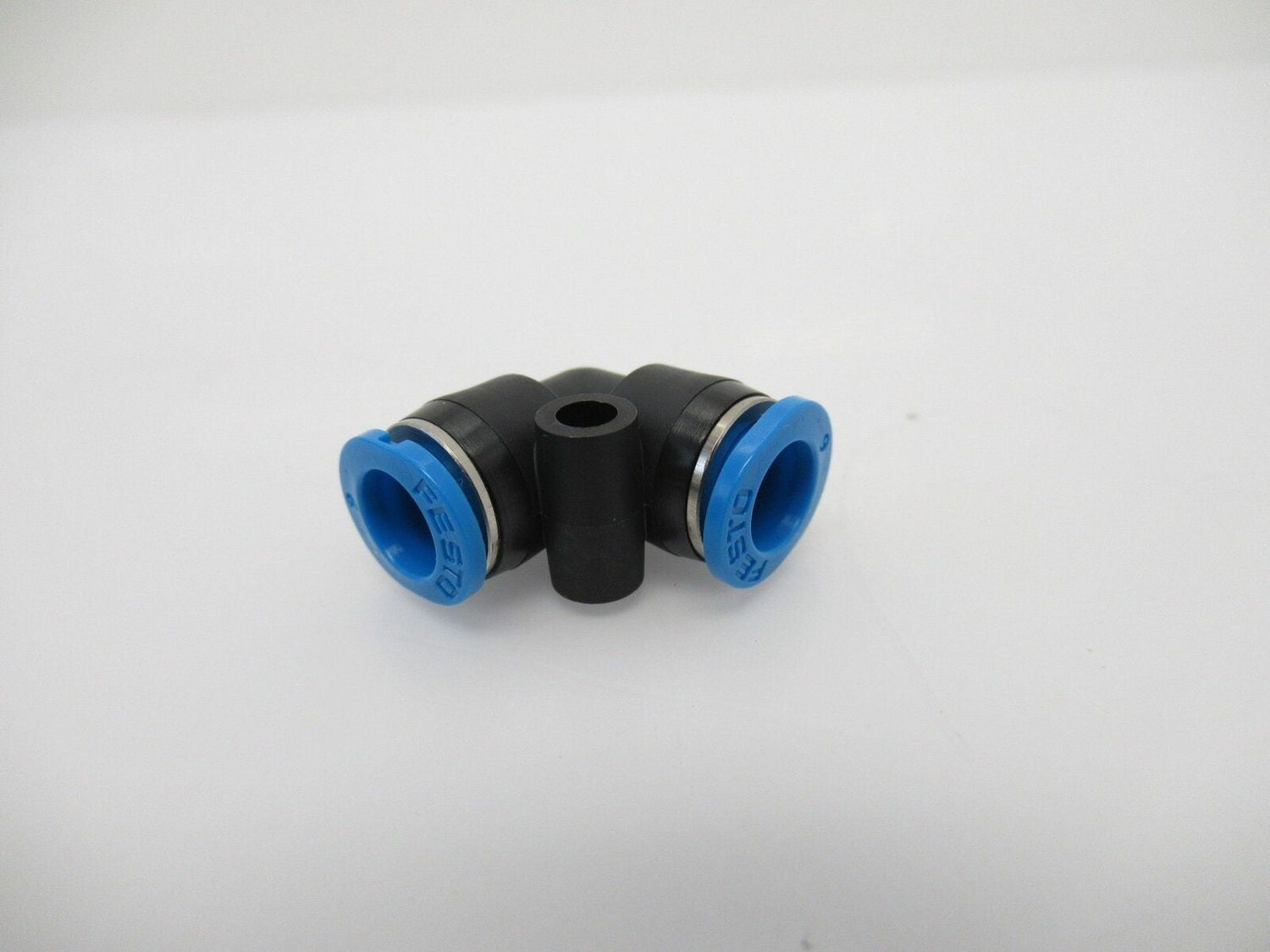

153345 QSML-6 Festo Push-In L-Connector
153345 QSML-6 QSML6
Festo
Push-In L-Connector
(Sold By Unit, New No Box)
Description
- Size: Mini
- Nominal Size: 3.4 mm
- Assembly Position: Any
- Container Size: 10
- Design Structure: Push/Pull Principle
- Operating Pressure Complete Temperature Range: -0.95 ... 6 bar
- Temperature-Dependent Operating Pressure: -0.95 ... 14 bar
- Maritime Classification: See Certificate
- Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:-:-]
- Note On Operating And Pilot Medium: Lubricated Operation Possible
- Corrosion Resistance Classification CRC: 1 - Low Corrosion Stress
- Ambient Temperature: -10 ... 80 °C
- Product Weight: 4 g
- Pneumatic Connection, Port 1: For Tubing Outside Diameter 6 mm
- Pneumatic Connection, Port 2: For Tubing Outside Diameter 6 mm
- Colour Of Release Ring: Blue
- Materials Note: Conforms To RoHS
- Material Housing: PBT
- Material Release Ring: POM
- Material Of Tubing Seal: NBR
- Material Of Tube Retaining Claw: High Alloy Steel, Non-Corrosive
