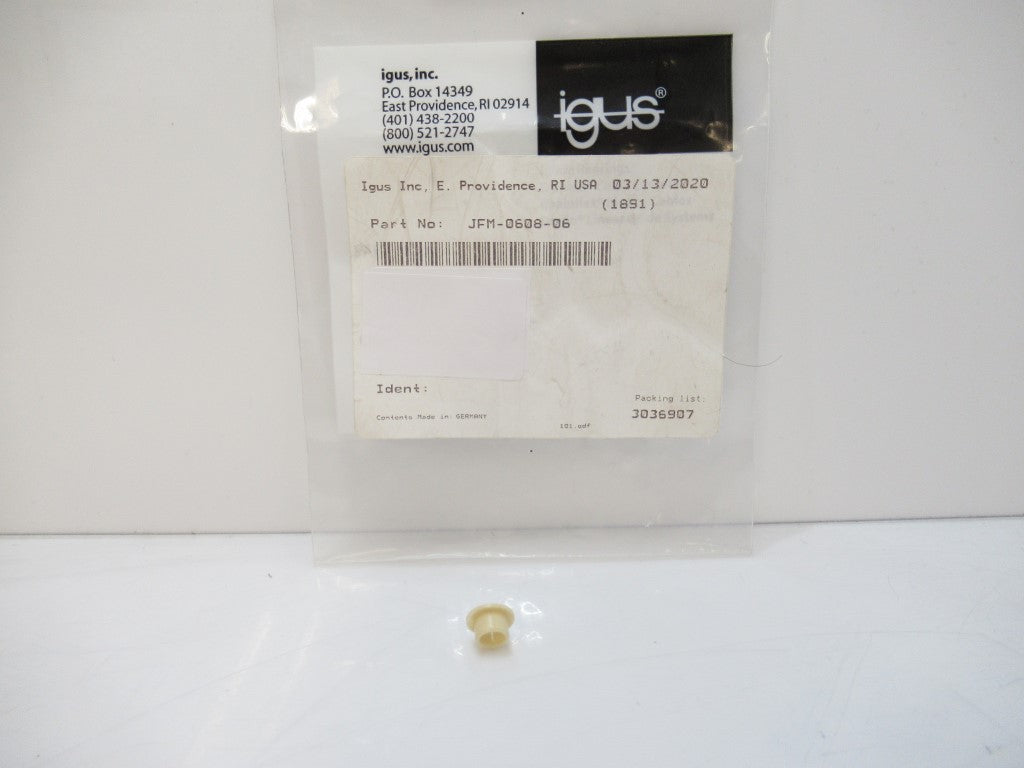

JFM-0608-06 Igus Iglide J, Sleeve Bearing With Flange
Product Information
Sold By Unit
JFM060806
Dimensions
Ø d1: 6.0 mm
Outer diameter d2: 8.0 mm
Flange diameter d3: 12.0 mm
Bearing length b1: 6.00 mm
Flange thickness b2: 1.00 mm
Length of bevel (f): 0.3 mm
Production and installation tolerances
d1-Tolerance bearing: +0.020 +0.068 mm, E10
d3-Tolerance: d13
b1-Tolerance: h13
b2-Tolerance: h13
Housing bore tolerance: 0 +0.015 mm, H7
Tolerance shaft: 0 -0.030 mm. h9
d1 after press-fit (max.): 6.068 mm
d1 after press-fit (min.): 6.020 mm
Housing bore (max.): 8.015 mm
Housing bore (min.): 8.000 mm
Shaft size (max.): 6.000 mm
Shaft size (min.): 5.970 mm
