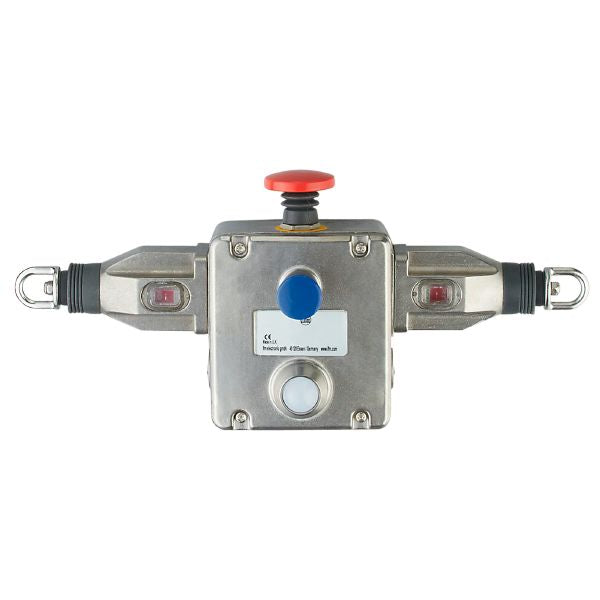

Ifm ZB0070 Safety Rope Emergency Stop Switch
| Operating voltage [V] | 110...240 AC / 5...24 DC; (LED) |
|---|---|
| Rated insulation voltage [V] | 500 |
| Electrical design | snap-action contact; max. switching voltage: 240 V; switching capacity: 720 VA; thermal current: 10 A | ||||
|---|---|---|---|---|---|
| Output function |
|
||||
| Minimum load current [mA] | 5; (5 V DC) | ||||
| Contact rating | 3 A (240 V AC) / 6 A (120 V AC) / 2,5 A (24 V DC); (inductive load) | ||||
| Short-circuit protection | no |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
| Weight [g] | 3149.2 | ||
|---|---|---|---|
| Material | switching contact: silver-plated; housing: stainless steel (1.4401 / 316) | ||
| Information on service life |
|
||
| Mounting orientation | any | ||
| Rope span | 125 m; (per side) | ||
| Activation force [N] | < 125; (tension force: 130 N) |
| Display |
|
|---|
| Required protection | 10 A; fast acting |
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | terminals: ...2.5 mm² |
|---|
