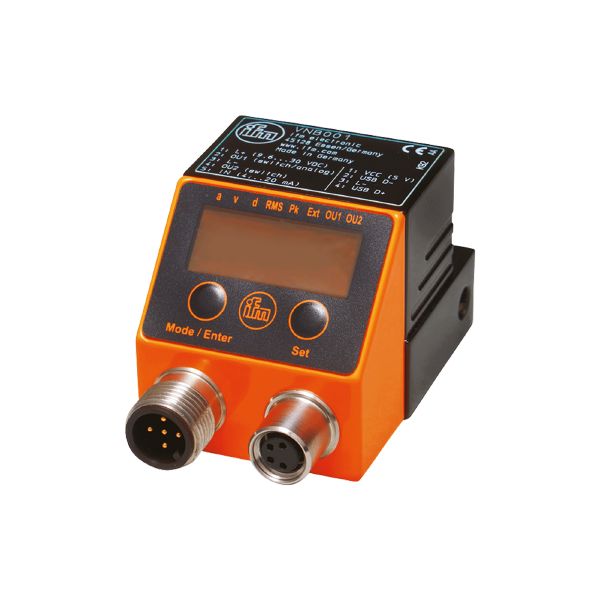

Ifm VNB001 Vibration Sensor
| Measuring range of vibration [mm/s] | 0...500; (depending on the vibration frequency) |
|---|---|
| Frequency range [Hz] | 2...1000 |
| Measuring principle | capacitive |
| Application | Vibration sensor to ISO 10816 |
|---|---|
| Self-test function | yes |
| Heartbeat | yes |
| Operating voltage [V] | 9.6...30 DC; (or via USB (switching outputs not active)) |
|---|---|
| Current consumption [mA] | < 70 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of sensor | micromechanical accelerometer |
| Total number of inputs and outputs | 3; (configurable) |
|---|---|
| Number of inputs and outputs | Number of analog inputs: 1; Number of digital outputs: 2; Number of analog outputs: 1 |
| Number of analog inputs | 1 |
|---|---|
| Analog input (current) [mA] | 4...20 |
| Output signal | switching signal; analog signal | ||||||
|---|---|---|---|---|---|---|---|
| Number of digital outputs | 2 | ||||||
| Max. voltage drop switching output DC [V] | 2 | ||||||
| Minimum load current [mA] | 100 | ||||||
| Number of analog outputs | 1 | ||||||
| Analog current output [mA] | 4...22 | ||||||
| Max. load [Ω] | 9,6...17 V: 150; 17...30 V: 500 | ||||||
| Factory setting |
|
||||||
| Short-circuit protection | yes | ||||||
| Overload protection | yes |
| Measuring range of vibration [mm/s] | 0...500; (depending on the vibration frequency) |
|---|---|
| Frequency range [Hz] | 2...1000 |
| Measuring principle | capacitive |
| Number of measurement axes | 1 |
| Measuring error [% of the final value] | ± 3% |
|---|
| Communication interface | USB |
|---|
| Ambient temperature [°C] | -30...60 |
|---|---|
| Storage temperature [°C] | -30...85 |
| Protection | IP 67 |
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||||
| MTTF [years] | 148 |
| Weight [g] | 226.85 |
|---|---|
| Type of mounting | Mounting set M5 / M8 |
| Dimensions [mm] | 36 x 37.6 x 62.4 |
| Material | housing: diecast zinc nickel-plated |
| Tightening torque [Nm] | 7 |
| Display |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Operating elements |
|
| History memory | yes |
|---|---|
| Data memory type | ring memory; FIFO |
| Real-time clock | yes; UTC, battery buffered |
| Memory location | internal |
| Memory interval | 5 min |
| Memory size | 686774 data records |
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
