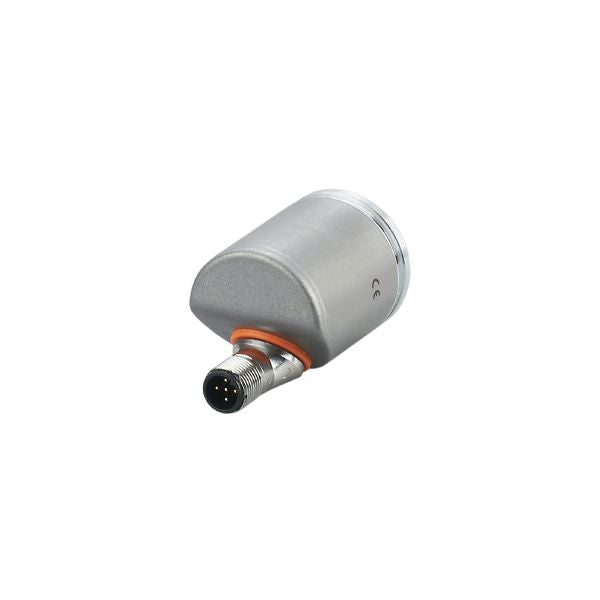

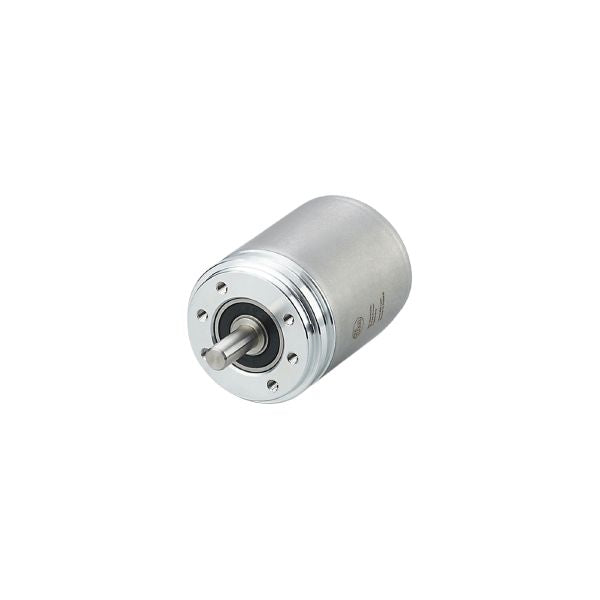

Ifm RMB300 Absolute Multiturn Encoder With Solid Shaft
| Resolution | 65536 steps; 32768 revolutions; 31 bit |
|---|---|
| Communication interface | IO-Link |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 6 |
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
| Operating voltage [V] | 18...30 DC; (; to PELV) |
|---|---|
| Rated insulation voltage [V] | 30 |
| Current consumption [mA] | < 75 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 1000 |
| Max. revolution electrical [U/min] | 12000 |
| Short-circuit protection | yes |
|---|
| Resolution | 65536 steps; 32768 revolutions; 31 bit |
|---|
| Accuracy [°] | 0.1 |
|---|
| Parameter setting options | preset; Zero point; Direction of rotation; rotational speed |
|---|
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM3 (230,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 CDV | ||||||||
| Profiles |
|
||||||||
| SIO mode | no | ||||||||
| Required master port class | A | ||||||||
| Min. process cycle time [ms] | 2.3 | ||||||||
| IO-Link process data (cyclical) |
|
||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; internal temperature; switching cycles counter | ||||||||
| Supported DeviceIDs |
|
||||||||
| Note |
|
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 98; (Condensation not permissible) |
| Protection | IP 65; (on the housing: IP 67; on the shaft: IP 64) |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||
| Shock resistance |
|
||||||||
| Continuous shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| MTTF [years] | 283 | ||||||||
| UL approval |
|
| Weight [g] | 227.2 | |
|---|---|---|
| Dimensions [mm] | Ø 36 / L = 65 | |
| Material | flange: aluminum; housing: stainless steel (1.4521 / 444) | |
| Max. starting torque [Nm] | 1 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 6 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | servo flange; Ø 36 mm |
| Connector: 1 x M12; coding: A; Moulded body: stainless steel (1.4401 / 316) |
