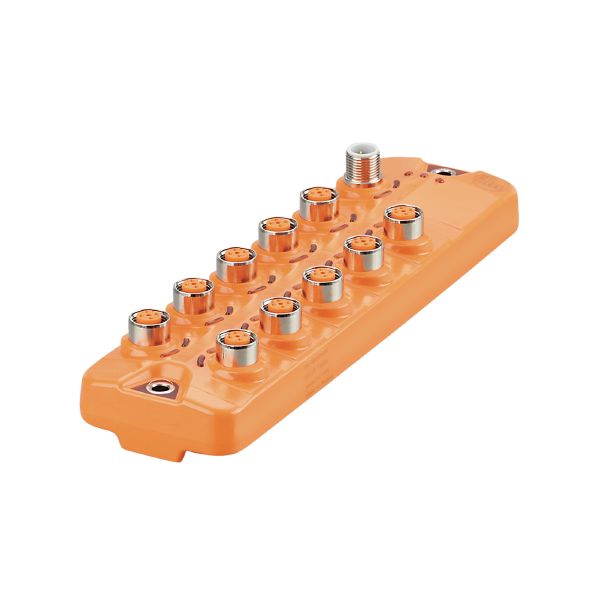

Ifm AL2341 Io-Link Input Module
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | 100...1100; (US) |
| Protection class | III |
| Current rating per port [A] | 0.1 |
|---|
| Number of inputs and outputs | Number of digital inputs: 20 |
|---|
| Number of digital inputs | 20; (10 x 2 PNP type 2 according to IEC 61131-2) |
|---|---|
| Sensor supply of the inputs | IO-Link |
| Voltage supply [V] | 16...30 |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| SDCI standard | IEC 61131-9 | ||||
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SIO mode | no | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 4.3 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...60 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...70 | ||||
| Max. relative air humidity [%] | 90 | ||||
| Max. height above sea level [m] | 2000 | ||||
| Protection | IP 65; IP 67 | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Chemical media |
|
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||
| Vibration resistance |
|
||||||
| MTTF [years] | 140 |
| Weight [g] | 392.5 |
|---|---|
| Material | housing: PA orange; Socket: brass nickel-plated |
| Display |
|
|---|
| Accessories (optional) |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| X1 | Connector: 1 x M12; coding: A |
|---|
| X1.0...X1.9 | Connector: 10 x M12; coding: A |
|---|
