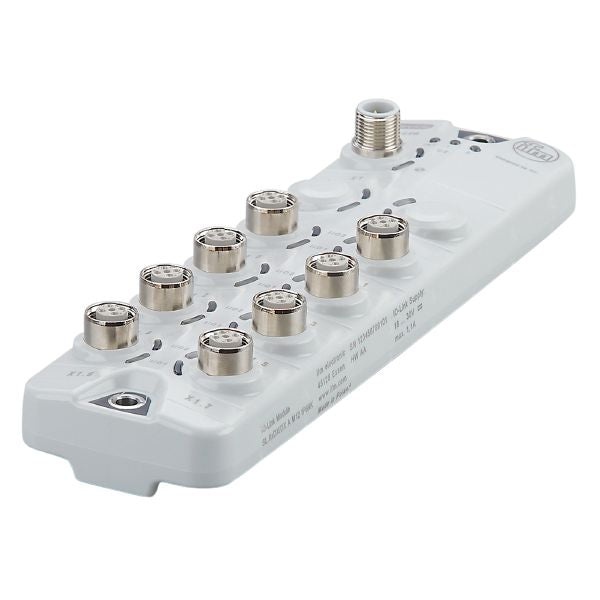

Ifm AL2223 Io-Link Input/Output Module
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | 100; (US) |
| Protection class | III |
| Additional voltage supply [V] | 18...30 DC; (UA) |
| Max. current consumption from additional supply [mA] | 3600; (UA) |
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of digital outputs: 16 |
| Number of digital inputs | 16; (configurable) |
|---|---|
| Input circuit of digital inputs | PNP; (type 3 (IEC 61131-2)) |
| Sensor supply of the inputs | UA |
| Voltage supply [V] | 18...30 |
| Input current High [mA] | 2...15 |
| Input current low [mA] | 0...1.5 |
| Switching level high [V] | 11...28 |
| Switching level low [V] | 0...5 |
| Number of digital outputs | 16; (configurable) |
|---|---|
| Max. current load per output [mA] | 1800 |
| Max. current load outputs total [A] | 3.6; (max. current load per segment: 1800 mA) |
| Short-circuit protection | yes |
| Actuator supply outputs | UA |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| SDCI standard | IEC 61131-9 | ||||
| Transmission type | COM3 (230,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SIO mode | no | ||||
| Required master port class | B | ||||
| Min. process cycle time [ms] | 4 | ||||
| Supported DeviceIDs |
|
||||
| Note |
|
| Ambient temperature [°C] | -25...60 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...70 | ||||
| Max. relative air humidity [%] | 90 | ||||
| Max. height above sea level [m] | 2000 | ||||
| Protection | IP 65; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Degree of soiling | 2 | ||||
| Chemical media |
|
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||
| Vibration resistance |
|
| Weight [g] | 482.326 |
|---|---|
| Dimensions [mm] | 26 x 59.3 x 208 |
| Material | housing: PA grey; Socket: stainless steel (1.4404 / 316L) |
| Sealing material | EPDM |
| Display |
|
|---|
| Accessories (optional) |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| X1 | Connector: 1 x M12; coding: A |
|---|
| X1.0...X1.7 | Connector: 8 x M12; coding: A; sealing: EPDM |
|---|
