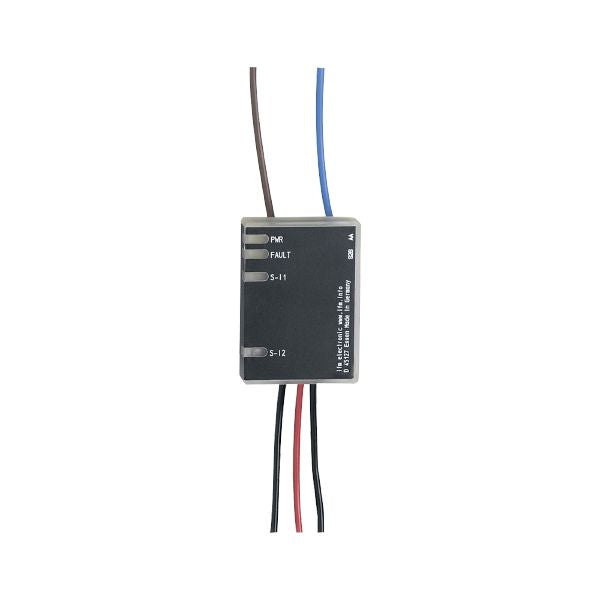

Ifm AC2729 As-Interface Pcb Module
Ifm AC2729 As-Interface Pcb Module is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm AC2729 As-Interface Pcb Module
| Application | Housing for panel mounting |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital inputs: 2 |
|---|
| Number of digital inputs | 2 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Voltage supply [V] | 18...30; (DC) |
| Input current High [mA] | > 5 |
| Digital inputs protected against short circuits | no |
| Electrical design | PNP |
|---|---|
| Voltage range DC [V] | DC |
| Max. current load per output [mA] | 10 |
| Short-circuit proof | no |
| Actuator supply outputs | AS-i |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 20; (depending on the housing) |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 842 |
| AS-i version | 2.11; 3.0 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Extended addressing mode | yes | ||||||||||
| AS-i master profile | M2; M3; M4 | ||||||||||
| AS-i profile | S-7.A.E | ||||||||||
| AS-i I/O configuration [hex] | 7 | ||||||||||
| AS-i ID code [hex] | A.E | ||||||||||
| AS-i certificate | 75101 | ||||||||||
| Data bits |
|
| Weight [g] | 58.5 |
|---|
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Cable: 0.2 m |
