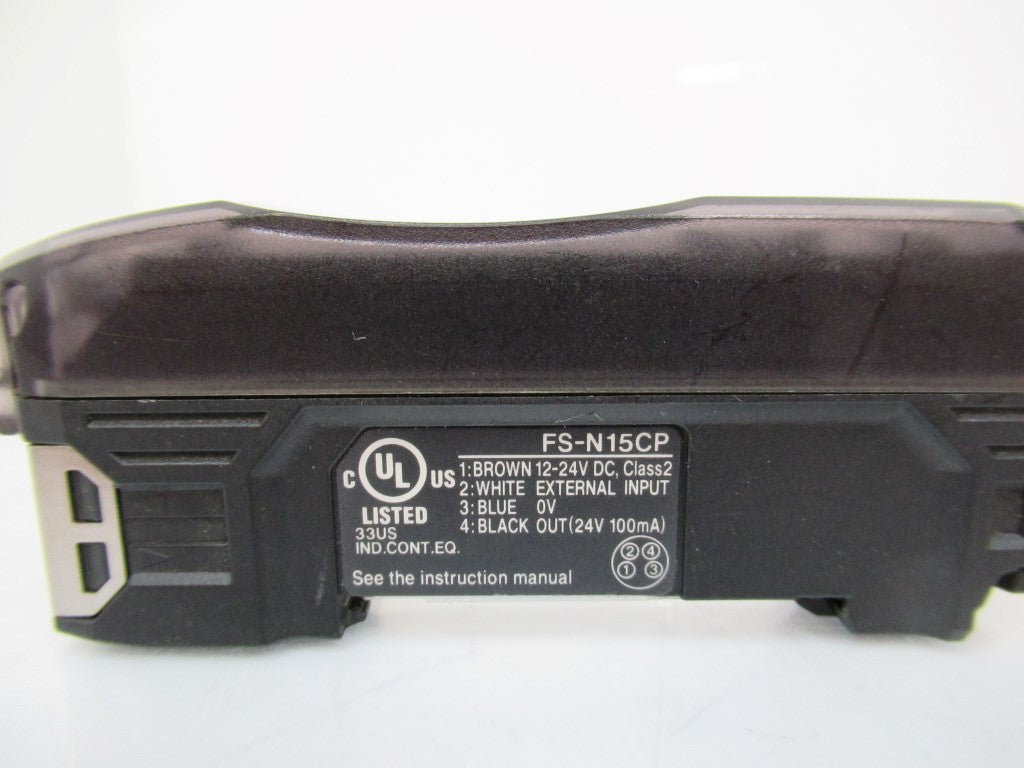

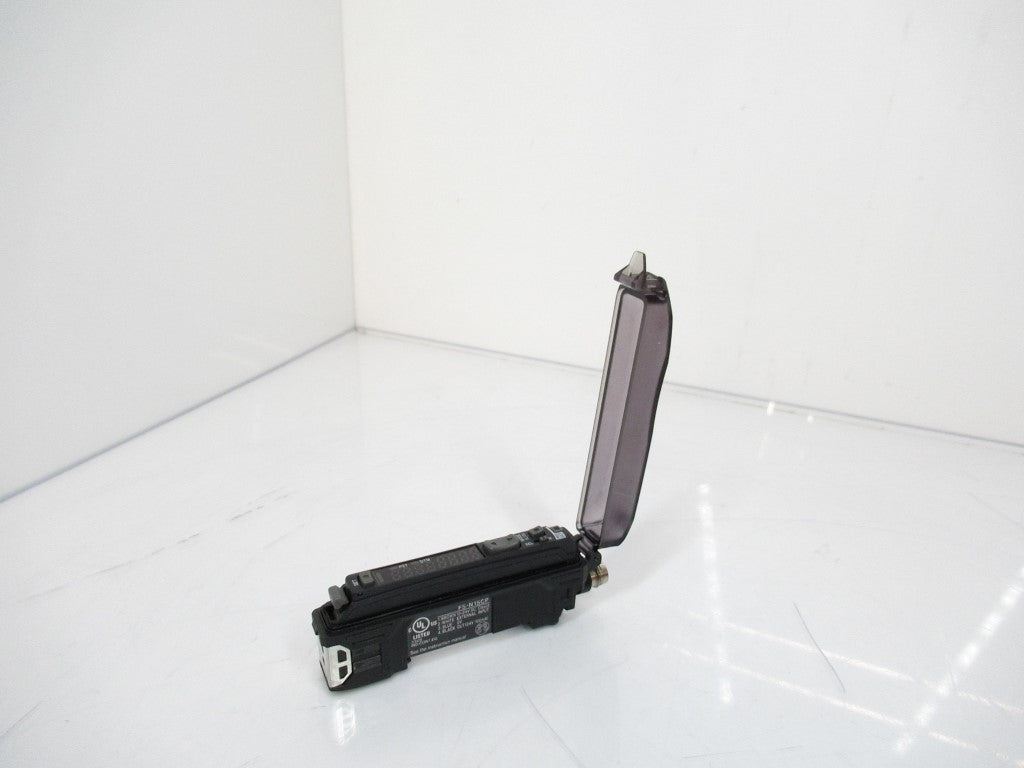

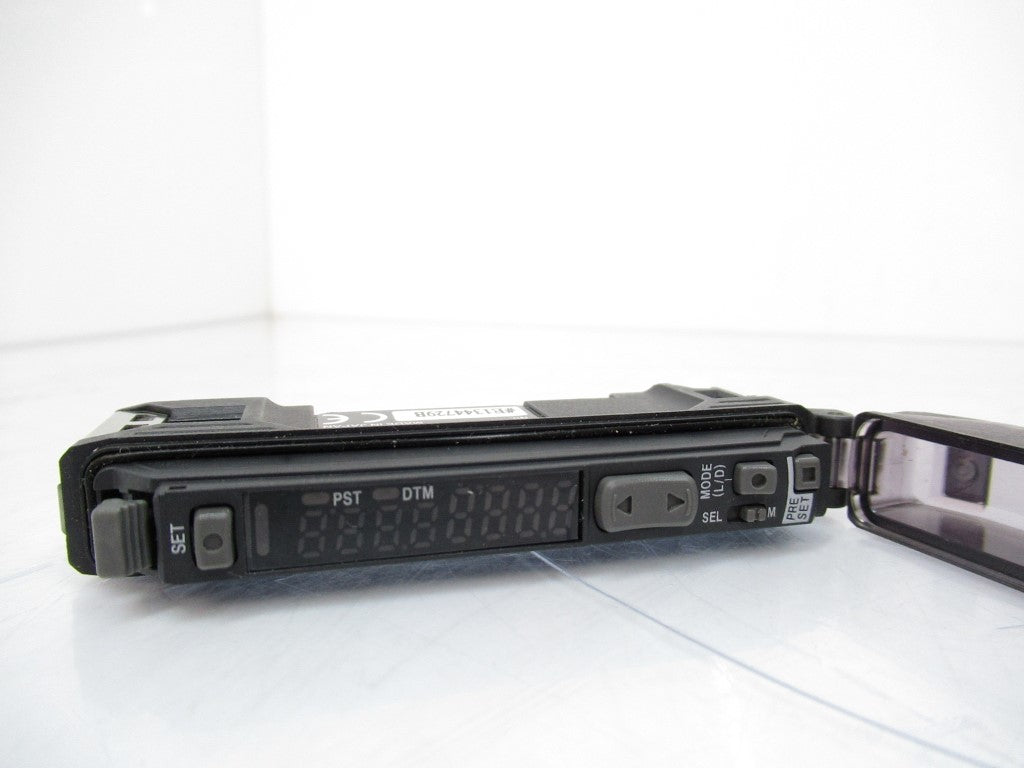

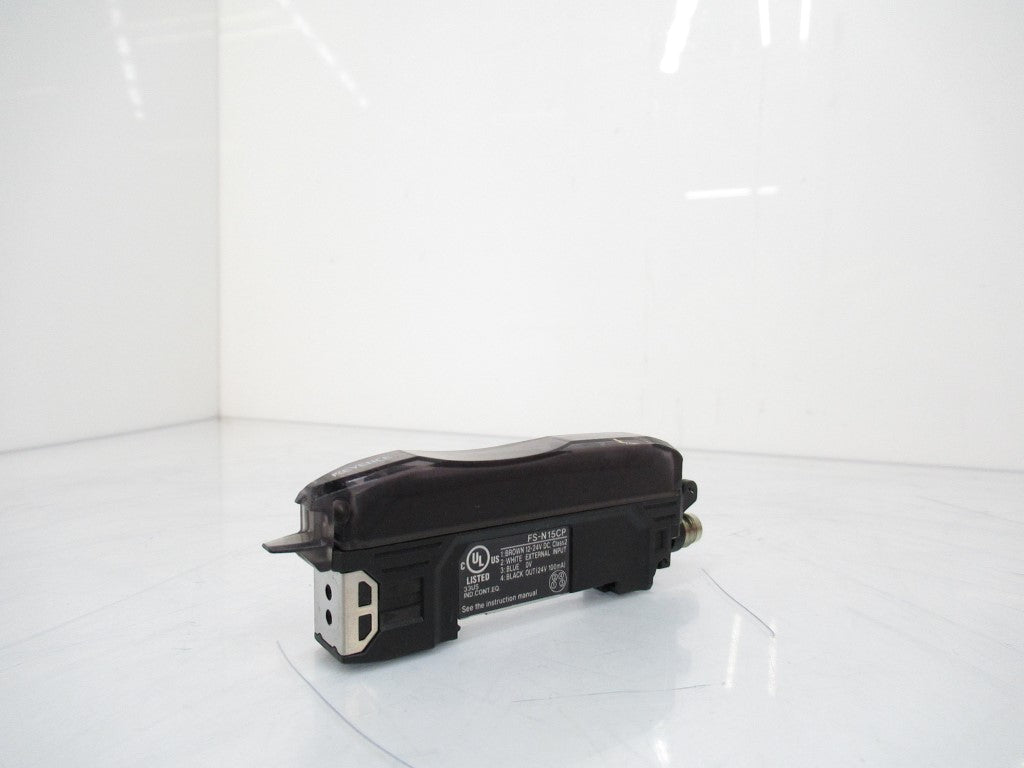

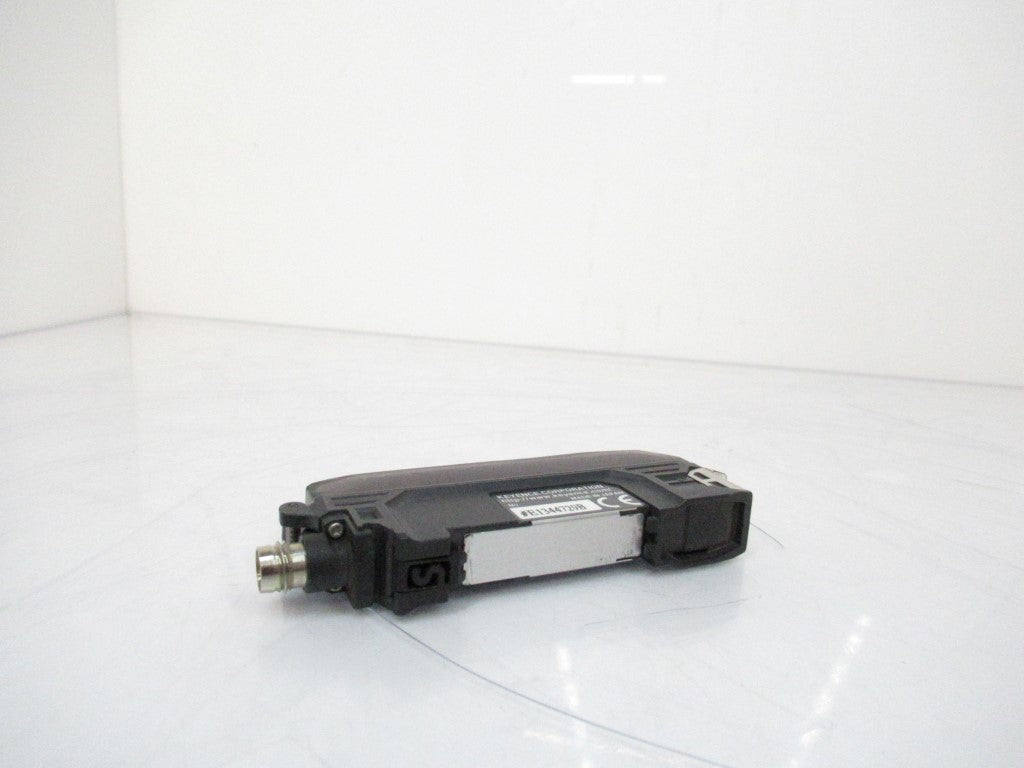

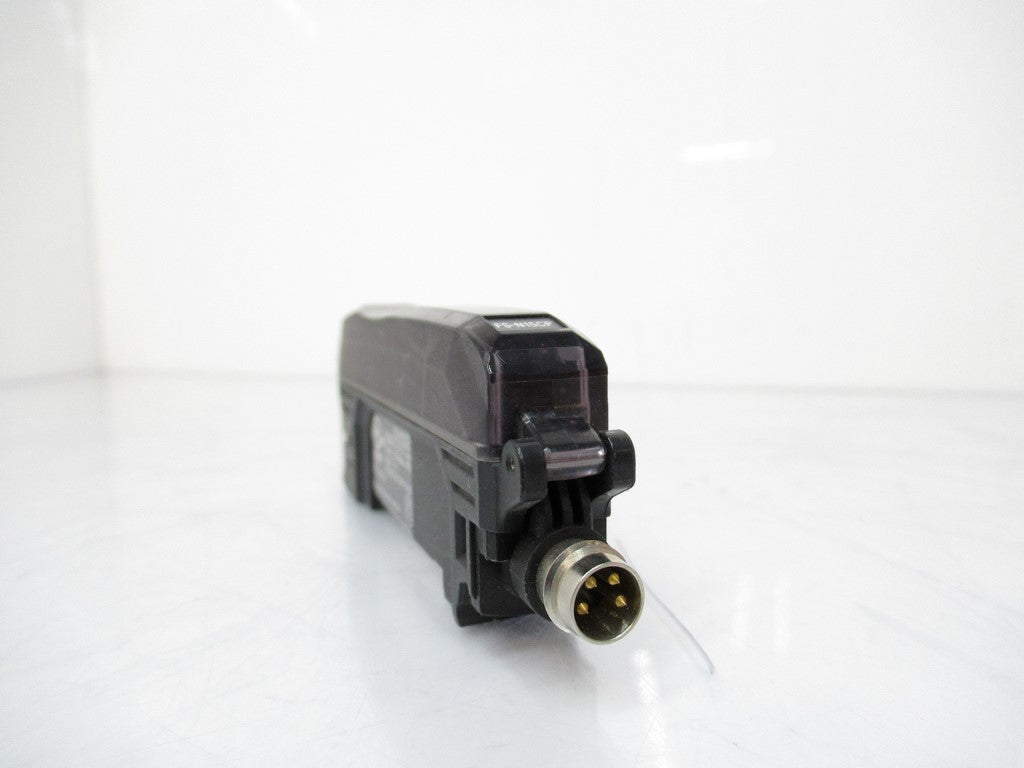

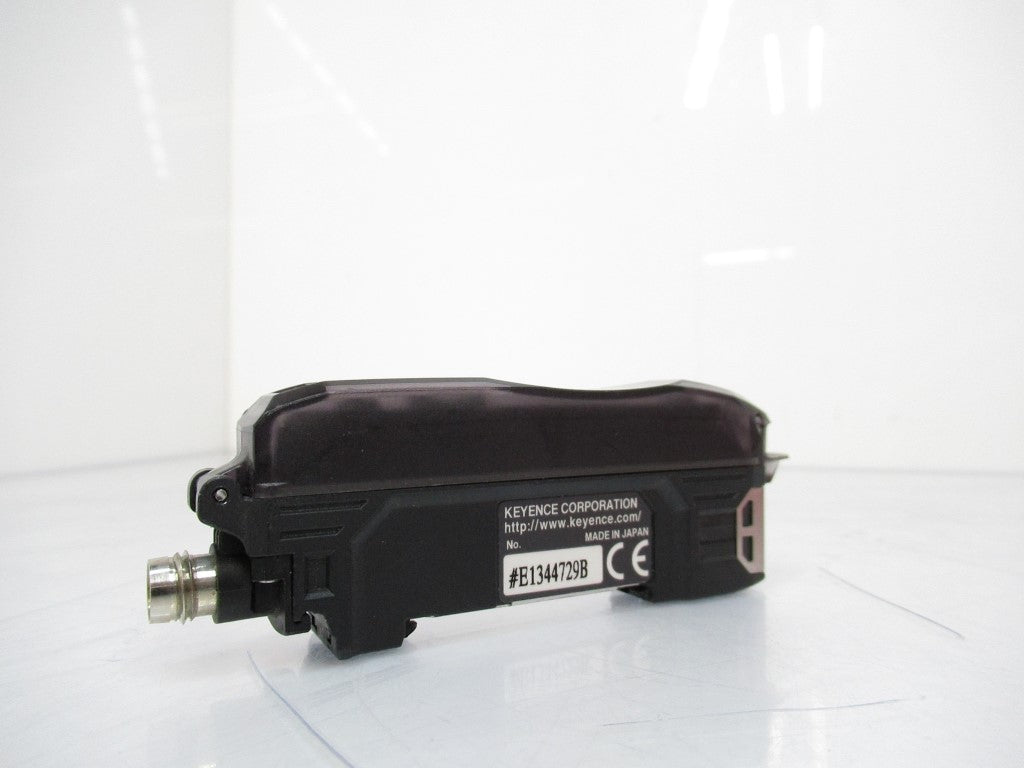

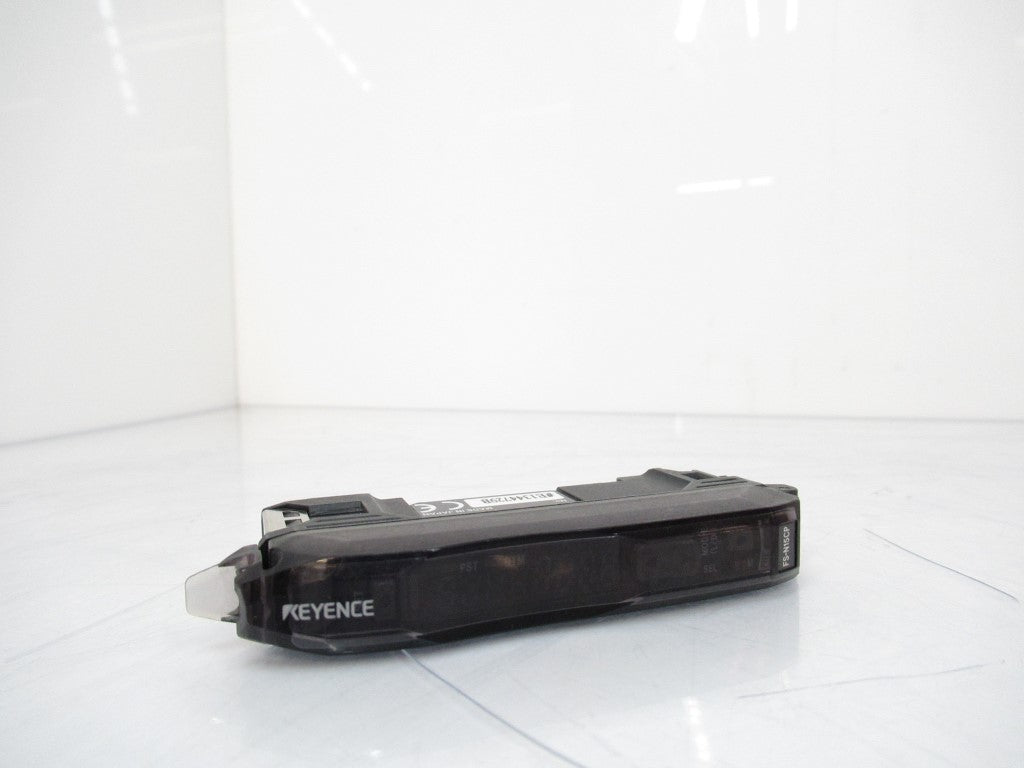

Keyence FS-N15CP Fiber Amplifier, M8 Connector Type, PNP
Keyence FS-N15CP Fiber Amplifier, M8 Connector Type, PNP is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
🌎 No Borders, Just Shipping! We deliver to your doorstep—anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Keyence FS-N15CP Fiber Amplifier, M8 Connector Type, PNP
Product Information
- Type: IP66 Fiberoptic Amplifier, 1 output type
- Output: PNP
- I/O format: M8 connector
- Main unit/expansion unit: Main unit
- Control output: 1 output, PNP open collector 24 V or less; maximum 100 mA or less, residual voltage 1 V or less
- External input: 1, Input time 2 ms (ON)/20 ms (OFF) or more (25 ms or more (ON/OFF) when external calibration is selected.)
- Output toggle: Light-ON/Dark-ON switchable
- Light source LED: Red 4-element LED (wavelength 630 nm)
- Timer function: Timer OFF/OFF delay/ON delay/One-shot
- Response time: 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA)
- Number of interference prevention units: 0 units (expansion not possible)
- Case size: H30.3mm 1.19" x W9.8mm 0.39" x L71.8mm 2.38"
- Unit expansion: 0 units (expansion not possible)
- Protection circuit: Reverse polarity protection, Over-current protection, Surge absorber
- Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Material Adapter: Glass-reinforced PBT
