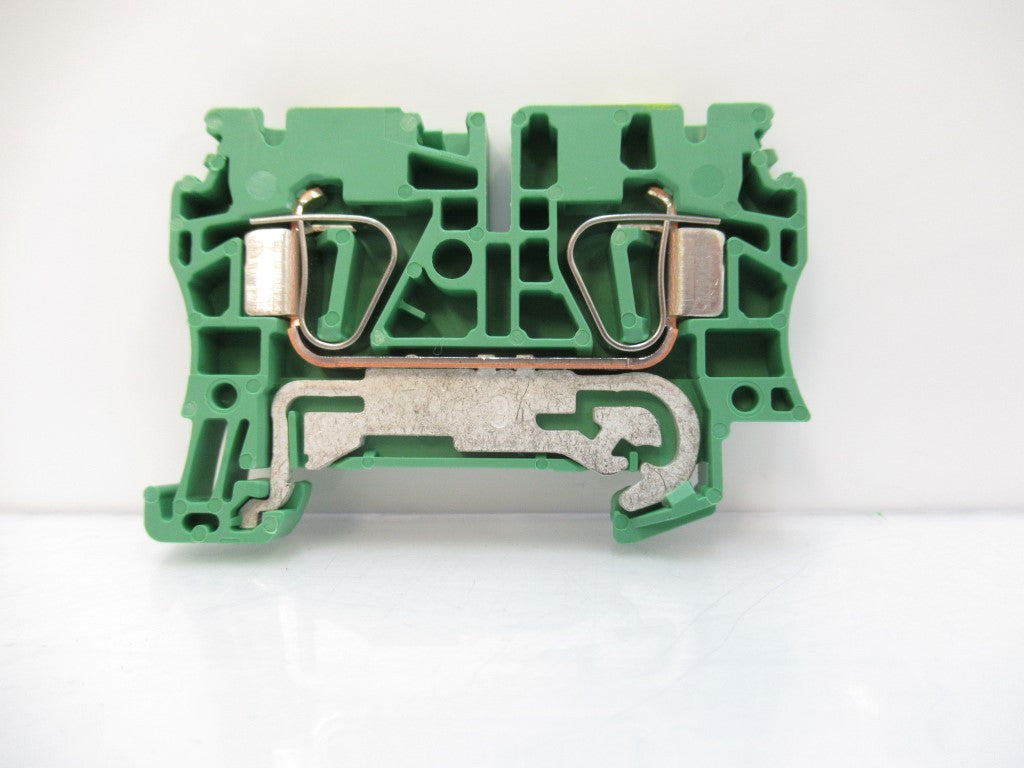

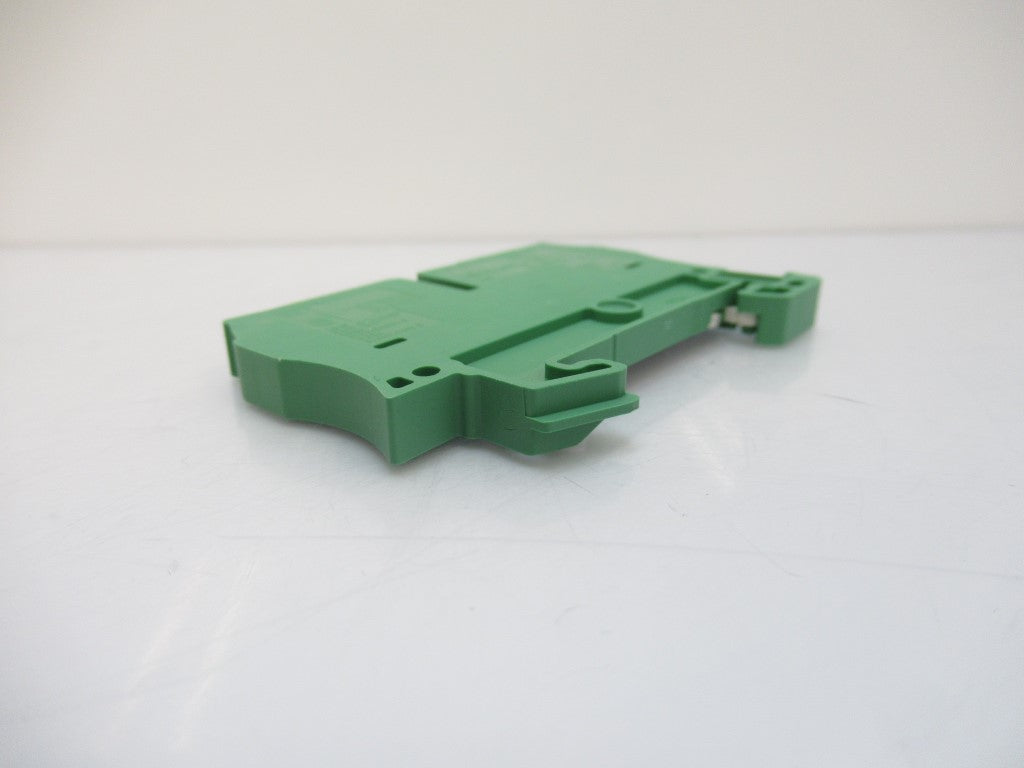

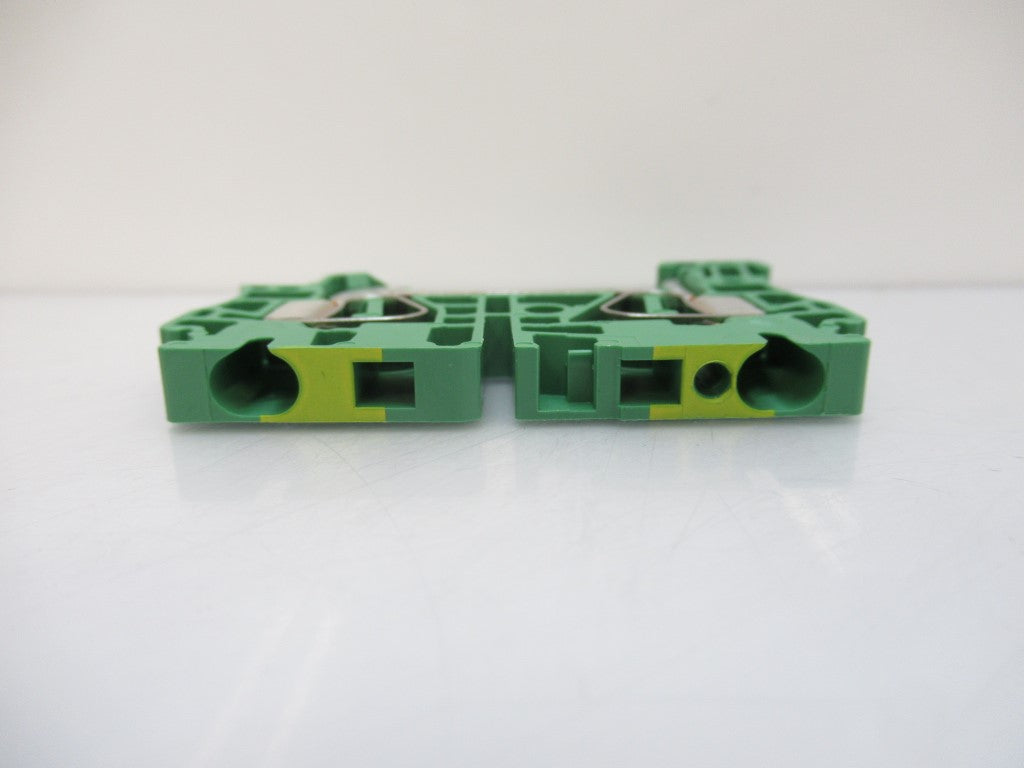

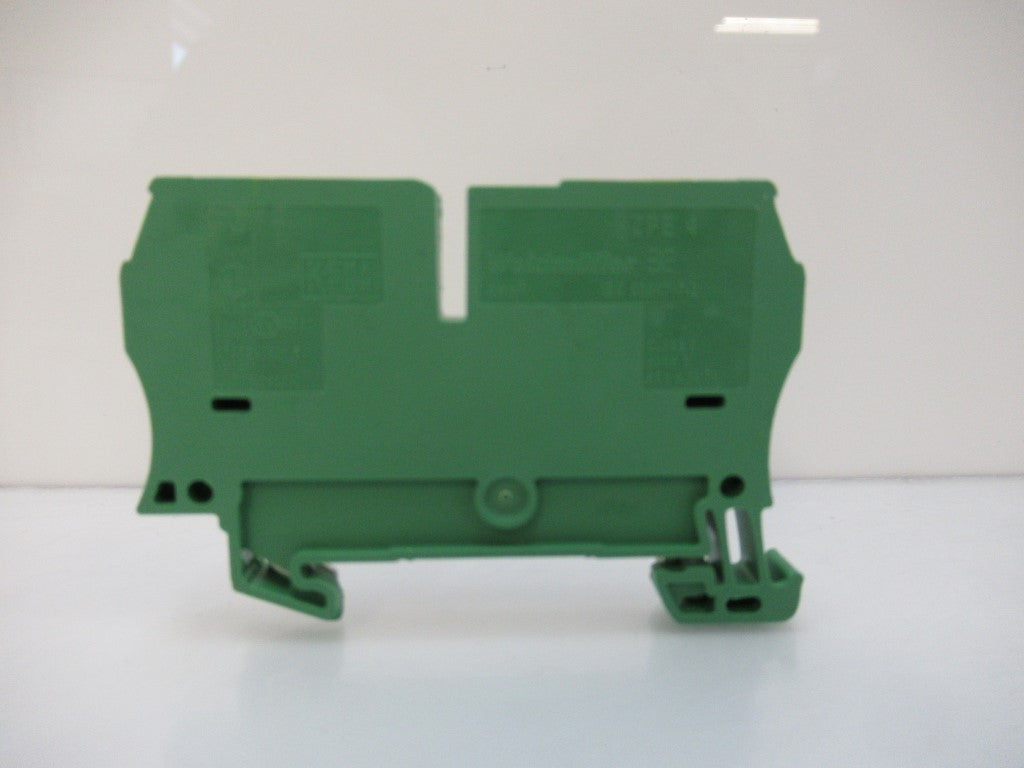

ZPE 4 Weidmuller PE Terminal Block, Tension-Clamp Connection

Name: ZPE 4 Weidmuller PE Terminal Block, Tension-Clamp Connection
Availability: InStock

SKU TER-0111-E

$2.23 USD - $2.23 USD

$2.23 USD

$2.23 USD - $2.23 USD

$2.23 USD

Availability:

13 in stock, ready to be shipped

Quantity

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Weidmuller

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product Information

Sold By Unit

ZPE4

Dimensions And Weights

Depth	43 mm
Depth (inches)	1.693 inch
Depth including DIN rail	43.5 mm
Height	64 mm
Height (inches)	2.52 inch
Net weight	14.04 g
Width	6.1 mm
Width (inches)	0.24 inch

Temperatures

Storage temperature	-25 °C...55 °C
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material Data

Material	Wemid
Colour	Green/yellow
UL 94 flammabilityrating	V-0

General

Rail	TS 35
Standards	IEC 60947-7-2
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 26
