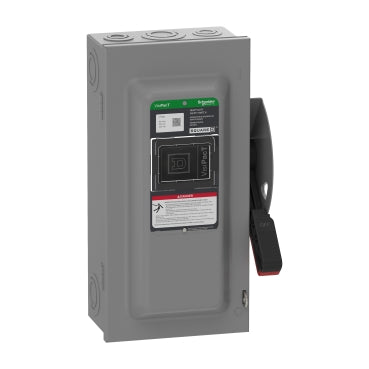

Schneider Eletric Square D VH362 Safety Switch, 600V

Single Throw Safety Switch Specifications

• Product Type: Single Throw Safety Switch
• Duty Rating: Heavy Duty
• Device Application: Heavy Application
• Disconnect Type: Fusible Disconnect
• Neutral Installation:
  • Factory Installed
  • Field Installed Kit Available
• Number of Poles: 3
• Current Rating: 60 A
• Voltage Rating: 600 V AC/DC
• Enclosure Rating: NEMA 1 Steel

Motor Power Ratings

• At 480 V AC (50...60 Hz) for 3-Phase Motors:
  • 15 hp
  • 30 hp
• At 600 V AC (50...60 Hz) for 3-Phase Motors:
  • 15 hp
  • 50 hp
• At 600 V DC:
  • 30 hp

Short-Circuit Current Ratings

• Without Fuse Rejection Clips:
  • 10 kA for H, K, J, or R
• With Fuse Rejection Clips:
  • 200 kA for R
  • 200 kA for J

Fuse Types

• H or K
• R or J

Mounting and Electrical Specifications

• Mounting Type: Surface
• Electrical Connection: Lugs
• Wiring Configuration: 3-Wire
• Wire Size:
  • AWG 14...AWG 3 (Copper)
  • AWG 12...AWG 3 (Aluminum)

Tightening Torque

• AWG 3: 50 lbf.in (5.6 N·m)
• AWG 6...AWG 4: 45 lbf.in (5.08 N·m)
• AWG 8: 40 lbf.in (4.5 N·m)
• AWG 14...AWG 10: 50 lbf.in (5.6 N·m) for 0.003…0.008 in² (2.06…5.261 mm²)

Dimensions

• Depth: 7.04 in (178.82 mm)
• Width: 8.91 in (226.31 mm)
• Height: 18.184 in (461.874 mm)
