5IK100VEST2-9A Oriental Motor Induction Gear Motor Ratio 9:1, 3-Phase

5IK100VEST2-9A 5IK100VEST29A

5GVR9A

Oriental Motor

100 W (1/8 HP) Induction Gear Motor (9:1 Gear Ratio, Three-Phase 220/230 VAC)

(New In Box)

Description

• Motor Type: Induction
• Frame Size: 3.54 in
• Output Power: 100 W (1/8 HP)
• Voltage (VAC): Three-Phase 220/230 VAC
• Frequency (Hz): 60/50
• Current: 0.55 A [220 VAC, 50 Hz]; 0.57 A [230 VAC, 50 Hz]; 0.48 A [60 Hz]
• Type: Terminal Box
• Electromagnetic Brake: Not Equipped

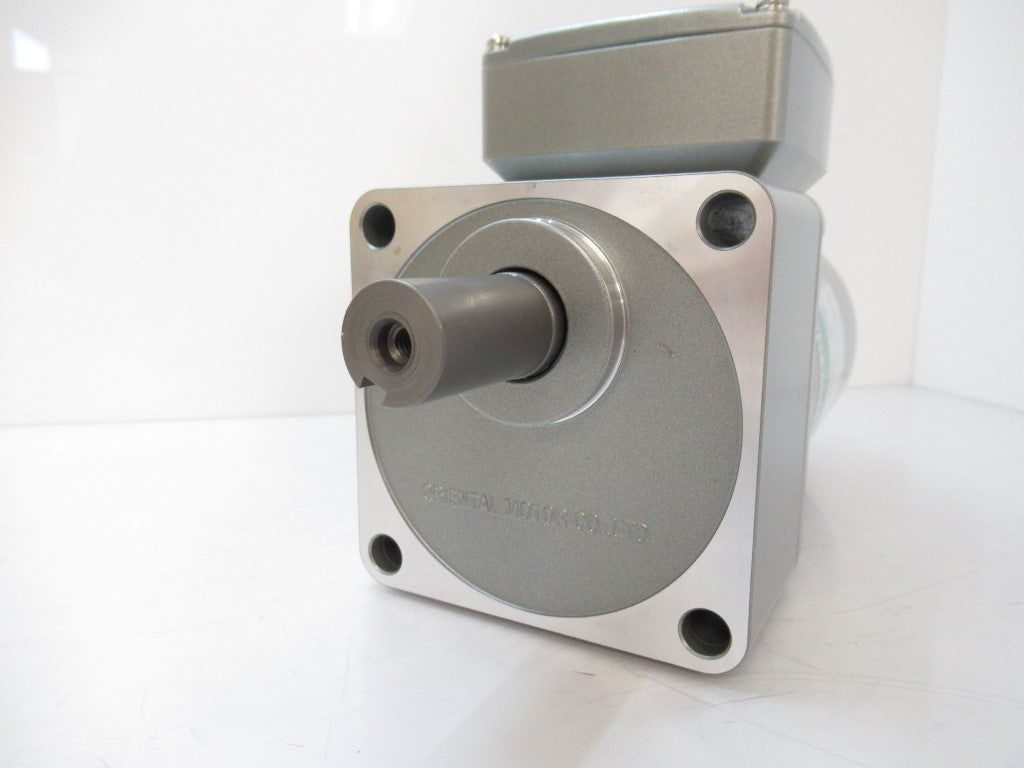

• Shaft/Gear Type: Parallel Shaft Gearhead
• Gear Ratio (X:1): 9 :1
• Output Shaft Diameter: 3/4 in.
• Rated Torque: 40 lb-in [60 Hz]; 49 lb-in [50 Hz]
• Rated Speed (rpm): 200 [60 Hz]; 166 [50 Hz]
• Permissible Load Inertia: 486 oz-in²
• Permissible Overhung Load; 0.39 in. From Shaft End = 90 lb; 0.79 in. From Shaft End = 112 lb
• Permissible Thrust Load: 33 lb
