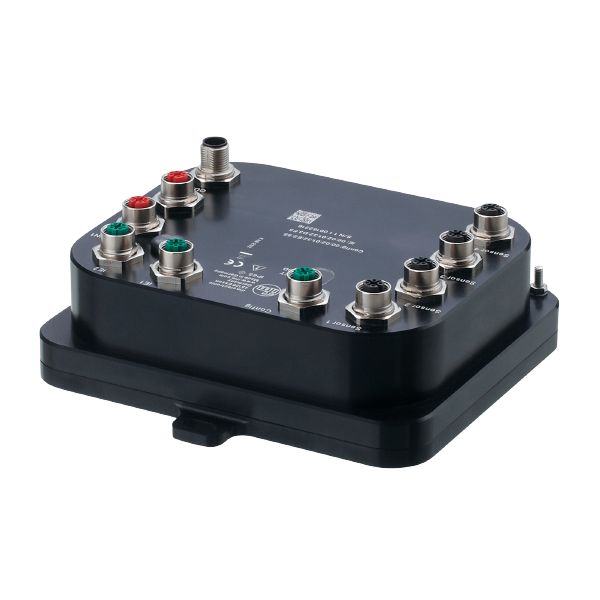

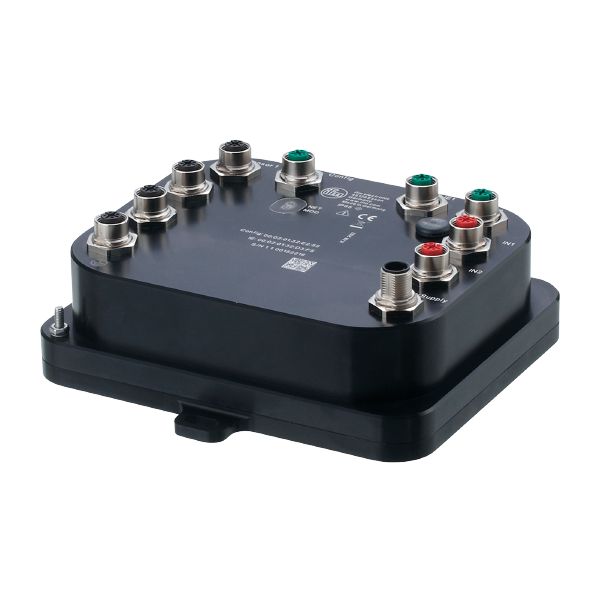

Ifm VSE953 Diagnostic Electronics For Vibration Sensors

Ifm VSE953 Diagnostic Electronics For Vibration Sensors

SKU IF-VSE953-E
$1,831.11 USD - $1,831.11 USD
$1,831.11 USD
$1,831.11 USD - $1,831.11 USD
$1,831.11 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Frequency range [Hz] 0.1...12000
Communication interface Ethernet
Application
Design parameter setting via PC software VES004
Electrical data
Operating voltage tolerance [%] 20
Operating voltage [V] 24 DC
Current consumption [mA] 200; ((24 V DC))
Protection class III
Inputs / outputs
Total number of inputs and outputs 8; (configurable)
Number of inputs and outputs Number of digital inputs: 1; Number of analog inputs: 1; Number of dynamic inputs: 4; Number of digital outputs: 2; Number of analog outputs: 1
Inputs
Total number of inputs 6
Number of digital inputs 1
Digital input - frequency range [Hz] 0,1...100000
Number of analog inputs 1; (static)
Analog input (current) [mA] 0...20
Resolution of analog input 12
Number of dynamic inputs 4
Dynamic input - signal 0...20 mA
Dynamic input - resolution [bit] 16
Dynamic input - frequency range [Hz] 0...12000
Dynamic input - sampling rate [kSamples] 100
Outputs
Total number of outputs 2
Output signal switching signal; analog signal
Electrical design PNP
Number of digital outputs 2; (configurable)
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 100
Number of analog outputs 1; (configurable)
Analog current output [mA] 0...22
Max. load [Ω] 500
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Frequency range [Hz] 0.1...12000
Interfaces
Communication interface Ethernet
Type of connector M12
Protocol Modbus TCP
Operating conditions
Ambient temperature [°C] 0...60
Storage temperature [°C] 0...60
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV contact discharge / 15 kV air discharge
EN 61000-4-3 10 V/m (80...2700 MHz)
EN 61000-4-4 Burst 4 kV capacitive coupling probe, earthed
EN 61000-4-6 10 V 0,15...80 MHz
EN 61000-6-4 industrial environments
UL approval
UL approval number L004
File number UL E251902
Mechanical data
Weight [g] 1369.5
Housing aluminum
Type of mounting Backplane mounting
Dimensions [mm] 175 x 172 x 66.6
Material EN AW-5083: black anodized
Data memory
Real-time clock yes
Accessories
Accessories (optional)
cross-over Ethernet patch cable for the direct connection to the PC
Remarks
Pack quantity 1 pcs.
