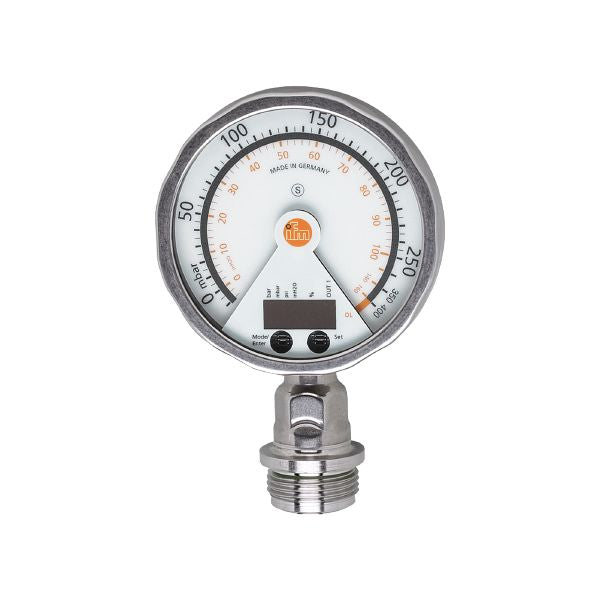

Ifm PG2798 Flush Pressure Sensor With Analog Display

Name: Ifm PG2798 Flush Pressure Sensor With Analog Display
Availability: BackOrder

SKU IF-PG2798-E

$893.33 USD - $893.33 USD

$893.33 USD

$893.33 USD - $893.33 USD

$893.33 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Number of inputs and outputs

Number of digital outputs: 1; Number of analog outputs: 1

Measuring range

-0.0124...0.25 bar

-12.4...250 mbar

-5...100.4 inH2O

Process connection

threaded connection G 1 external thread Aseptoflex Vario

Application

System

gold-plated contacts

Application

flush mountable for the food and beverage industry

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-25...125; (145 max. 1h)

Min. bursting pressure

30000 mbar

12043 inH2O

Pressure rating

6000 mbar

2400 inH2O

Type of pressure

relative pressure

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 70; (24 V)
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	6
Measuring principle	hydrostatic
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analog outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analog signal; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	1
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	50
Number of analog outputs	1
Analog current output [mA]	4...20, invertible; (scalable)
Max. load [Ω]	(Ub - 10 V) / 20 mA
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Measuring/setting range

Measuring range

-0.0124...0.25 bar

-12.4...250 mbar

-5...100.4 inH2O

Set point SP

-12...400 mbar

-4.8...160.6 inH2O

Reset point rP

-12.4...399.6 mbar

-5...160.4 inH2O

Analog start point

-12.4...337.6 mbar

-5...135.5 inH2O

Analog end point

50...400 mbar

20.1...160.6 inH2O

In steps of

0.2 mbar

0.1 inH2O

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,2; (Turn down 1:1)
Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15; (Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15; (Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,05; (0...70 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,15; (0...70 °C)

Reaction times

Response time [ms]	< 10
Damping process value dAP [s]	0.01...30
Damping for the analog output dAA [s]	0.01...30
Step response time analog output [ms]	25

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5/1 kV
EN 61000-4-6 HF conducted	10 V

Shock resistance
