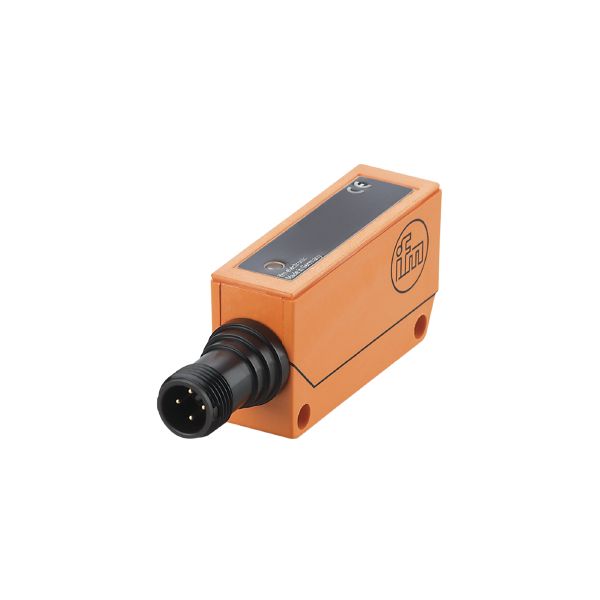

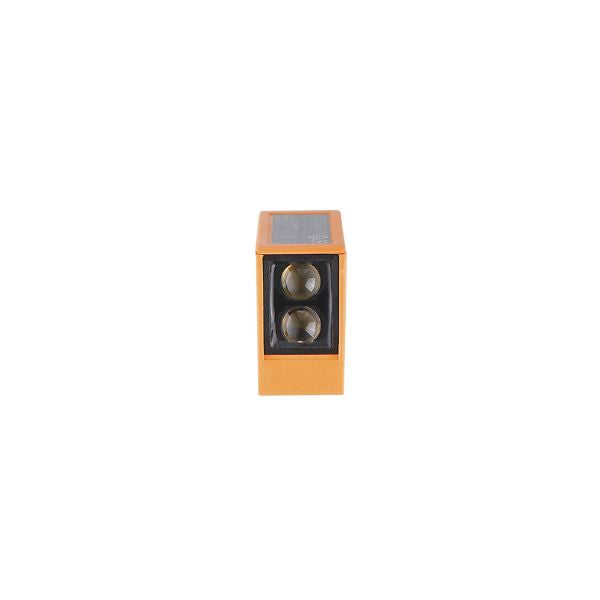

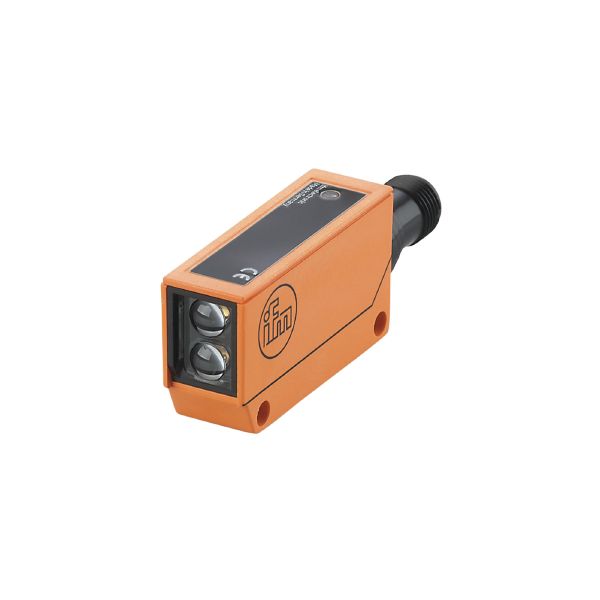

Ifm OU5064 Retro-Reflective Sensor

Ifm OU5064 Retro-Reflective Sensor

SKU IF-OU5064-E
$381.11 USD - $381.11 USD
$381.11 USD
$381.11 USD - $381.11 USD
$381.11 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Type of light red light
Housing rectangular
Application
System polarization filter
Function principle Retro-reflective sensor
Electrical data
Operating voltage [V] 10...55 DC
Current consumption [mA] 30; ((24 V))
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 660
Outputs
Electrical design PNP
Output function dark-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 160
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range referred to prismatic reflector [m] 0.15...1.5; (Prismatic reflector Ø 80 E20005)
Range adjustable yes
Max. light spot diameter [mm] 475
Light spot dimensions refer to at maximum range
Polarization filter available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 687
Mechanical data
Weight [g] 75
Housing rectangular
Dimensions [mm] 28 x 16 x 51
Material PPO modified
Lens material
glass
Lens alignment Side sensing
Displays / operating elements
Display
Switching status 1 x LED, yellow
Accessories
Items supplied
Angle bracket: 1, E20211
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Diagrams and graphs
excess gain graph
