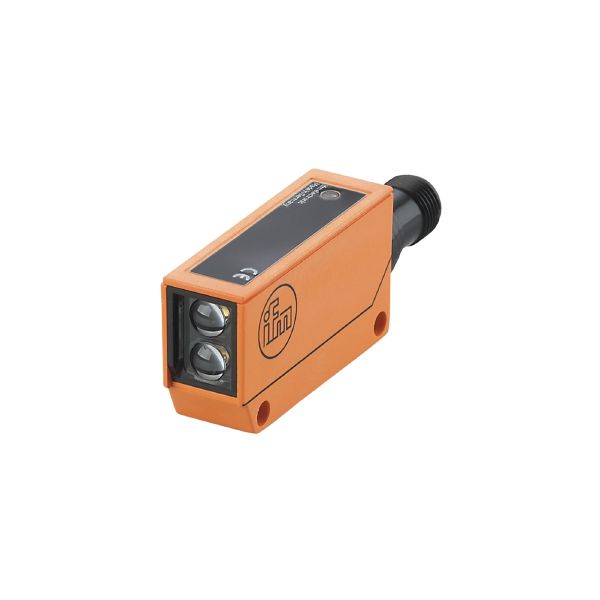

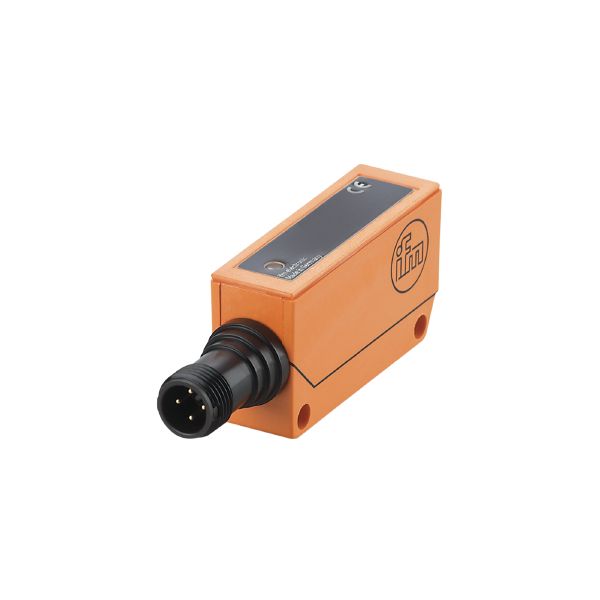

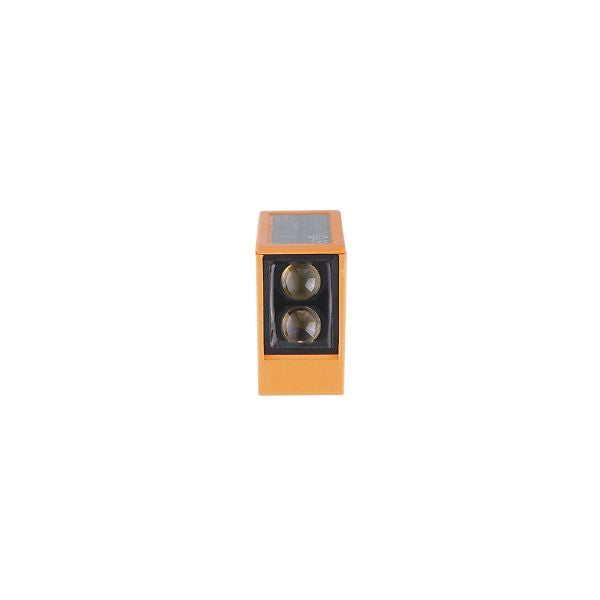

Ifm OU5035 Diffuse Reflection Sensor

Name: Ifm OU5035 Diffuse Reflection Sensor
Availability: BackOrder

SKU IF-OU5035-E

$341.11 USD - $341.11 USD

$341.11 USD

$341.11 USD - $341.11 USD

$341.11 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Type of light	Infrared light
Housing	rectangular

Application

Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...55 DC
Current consumption [mA]	35; ((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	Infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	160
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Range [mm]	1...200; (white paper 200 x 200 mm)
Range adjustable	yes
Max. light spot diameter [mm]	180
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF [years]

685

Mechanical data

Weight [g]

74.5

Housing

rectangular

Dimensions [mm]

28 x 16 x 51

Material

PPO modified

Lens material

glass

Lens alignment

Side sensing

Displays / operating elements

Display

Switching status

1 x LED, yellow

Accessories

Items supplied

Angle bracket: 1, E20211

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph
