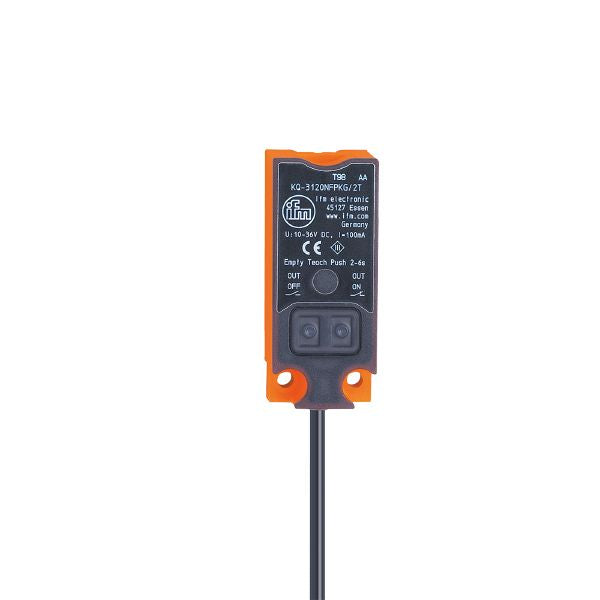

Ifm KQ6006 Capacitive Sensor

Name: Ifm KQ6006 Capacitive Sensor
Availability: BackOrder

SKU IF-KQ6006-E

$144.44 USD - $144.44 USD

$144.44 USD

$144.44 USD - $144.44 USD

$144.44 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Electrical design	NPN
Output function	normally open / closed; (selectable)
Sensing range [mm]	12
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	20 x 14 x 48

Application

Installation	detection through non-metallic container wall or on bypass pipes
Media	dry bulk material; liquids

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 17
Protection class	III
Reverse polarity protection	yes
Measuring principle	capacitive

Outputs

Electrical design	NPN
Output function	normally open / closed; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	10
Short-circuit protection	yes
Overload protection	yes

Monitoring range

Sensing range [mm]	12
Real sensing range Sr [mm]	12 ± 10 %

Accuracy / deviations

Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-20...20

Interfaces

Communication interface

IO-Link

Transmission type

COM1 (4,8 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor

SIO mode

yes

Supported DeviceIDs

Type of operation	DeviceID
default	371

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 67; IP 69K

Tests / approvals

EMC

EN 61000-4-2	4 kV CD / 8 kV AD
EN 61000-4-3	3 V/m
EN 61000-4-4	2 kV
EN 61000-4-6	3 ms
EN 55011	class B

Vibration resistance

(10...55 Hz) / 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz

Shock resistance

30 g 6 shocks / 11 ms half-sine (x, y, z)

MTTF [years]

623

UL approval

Ta	-25...80 °C
Enclosure type	Type 1
voltage supply	Limited Voltage/Current

Mechanical data

Weight [g]	46.5
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	20 x 14 x 48
Material	housing: PBT reinforced glass-fiber; Pushbuttons: TPE-U; cover: PC reinforced glass-fiber

Displays / operating elements

Display

Switching status

1 x LED, yellow

Teach function

yes

Electronic lock

yes

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.14 mm²
