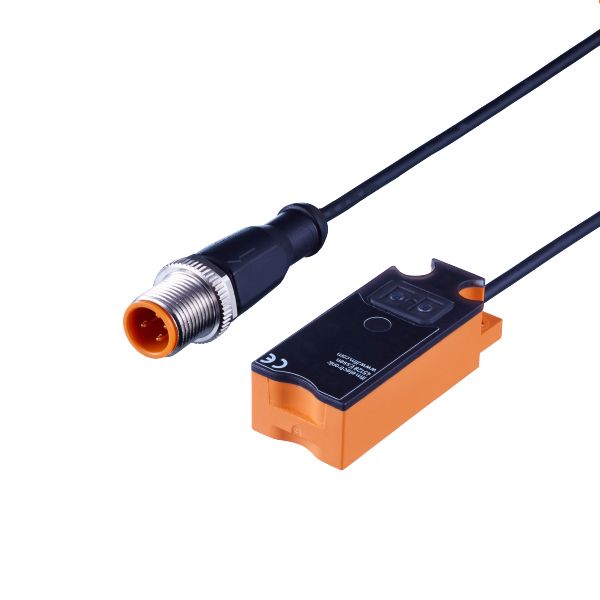

Ifm KQ6005 Capacitive Sensor

Ifm KQ6005 Capacitive Sensor

SKU IF-KQ6005-E
$144.44 USD - $144.44 USD
$144.44 USD
$144.44 USD - $144.44 USD
$144.44 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design PNP
Output function normally open / closed; (selectable)
Sensing range [mm] 12
Communication interface IO-Link
Housing rectangular
Dimensions [mm] 20 x 14 x 48
Application
Installation detection through non-metallic container wall or on bypass pipes
Media dry bulk material; liquids
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 17
Protection class III
Reverse polarity protection yes
Measuring principle capacitive
Outputs
Electrical design PNP
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 10
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Sensing range [mm] 12
Real sensing range Sr [mm] 12 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -20...20
Interfaces
Communication interface IO-Link
Transmission type COM1 (4,8 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
SIO mode yes
Min. process cycle time [ms] 100.8
Supported DeviceIDs
Type of operation DeviceID
default 371
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65; IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 3 V
EN 55011 class B
Shock resistance
EN 60068-2-27 30 g 6 shocks / 11 ms half-sine (x, y, z)
Vibration resistance
EN 60068-2-6 (10...55 Hz) / 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz
MTTF [years] 725
UL approval
Ta -25...80 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
Mechanical data
Weight [g] 34.5
Housing rectangular
Mounting non-flush mountable
Dimensions [mm] 20 x 14 x 48
Material housing: PBT reinforced glass-fiber; Pushbuttons: TPE-U; cover: PC reinforced glass-fiber
Displays / operating elements
Display
Switching status 1 x LED, yellow
Teach function yes
Electronic lock yes
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Cable: 0.1 m, PVC; 3 x 0.14 mm²
Connection Connector: 1 x M12; coding: A
