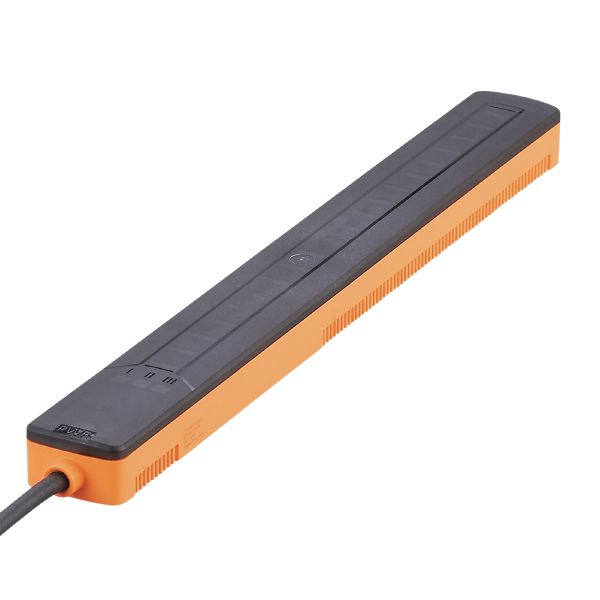

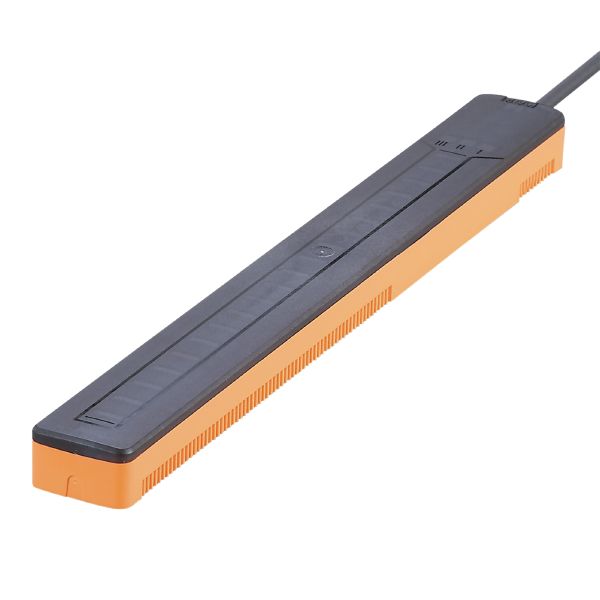

Ifm KQ1000 Continuous Level Sensor

Ifm KQ1000 Continuous Level Sensor

SKU IF-KQ1000-E
$344.44 USD - $344.44 USD
$344.44 USD
$344.44 USD - $344.44 USD
$344.44 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design PNP/NPN; (configurable)
Communication interface IO-Link
Dimensions [mm] 250 x 28 x 16.7
Application
Application Continuous level measurement behind non-metallic and non-conductive surfaces
Media dry bulk material; aqueous solutions; oils
Cannot be used for very adhesive media
Electrical data
Operating voltage [V] 10...30 DC; (IO-Link: 18...30 DC)
Current consumption [mA] < 50
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 1300
Measuring principle capacitive
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 3
Outputs
Electrical design PNP/NPN; (configurable)
Number of digital outputs 3
Permanent current rating of switching output DC [mA] 200
Max. resistance switching output [Ω] 8
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Measuring range [mm] < 200
Measuring/setting range
Detection range [mm] 228
Set point SP [%] 5...95
Reset point rP [%] 4...94
In steps of [%] 1
Accuracy / deviations
Repeatability [% of the final value] 2
Offset deviation [% of the final value] 4
Resolution [% of the final value] 1
Linearity deviation [% of the final value] 1
Reaction times
Response time [ms] 1300
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Digital Measuring Sensor Profile, Common Profile
SIO mode yes
Required master port class A
Process data analog 1
Process data binary 3
Min. process cycle time [ms] 9.6
IO-Link process data (cyclical)
Function bit length
process value 16
exponent 8
device status 4
binary switching information 3
IO-Link functions (acyclical) direction of installation; limitation of sensor elements; Sensitivity; minimum recognition threshold; Performance in case of a fault; error delay; Damping; LED mode; switch-on cycle counter; operating hours counter; switching cycles counter; min./max. process value; internal temperature; min./max. internal temperature; diagnostic data level
Supported DeviceIDs
Type of operation DeviceID
default 924
Note
For further information please see the IODD PDF file at "Downloads"
Operating conditions
Applications DIN EN 60654-1 application class B2
Ambient temperature [°C] -20...80
Storage temperature [°C] -25...85
Protection IP 65
Tests / approvals
EMC
DIN EN 61000-6-4 30 - 230 MHz 40 dBµV/m QP / 10 m distance
230 - 1 GHz 47 dBµV/m QP / 10 m distance
DIN EN 61000-4-2 ± 25 kV AD / ± 25 kV CD
DIN EN 61000-4-3 80 MHz - / 1 GHz 10 V/m
DIN EN 61000-4-4 ± 2.5 kV / 5 kHz
± 2.5 kV / 100 kHz
DIN EN 61000-4-6 10 V
Shock resistance
EN 60068-2-27 15 g 11 ms
Vibration resistance
EN 60068-2-6 5 g (10...2000 Hz)
MTTF [years] 290.43
UL approval
Ta -25...60 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
UL approval number D005
File number UL E174191
Mechanical data
