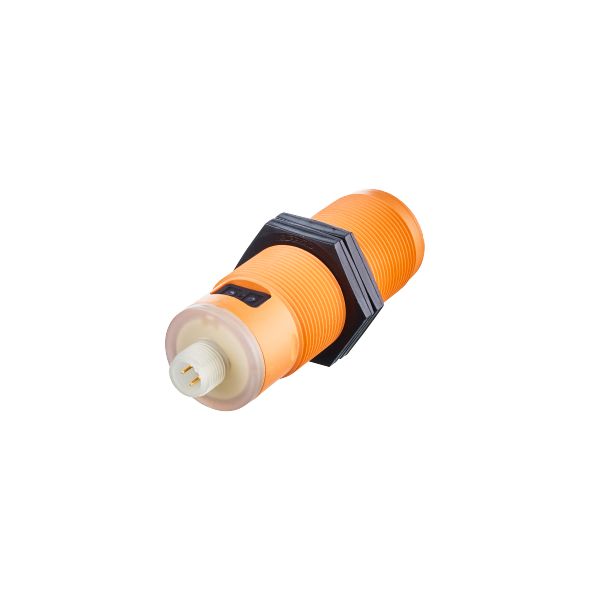

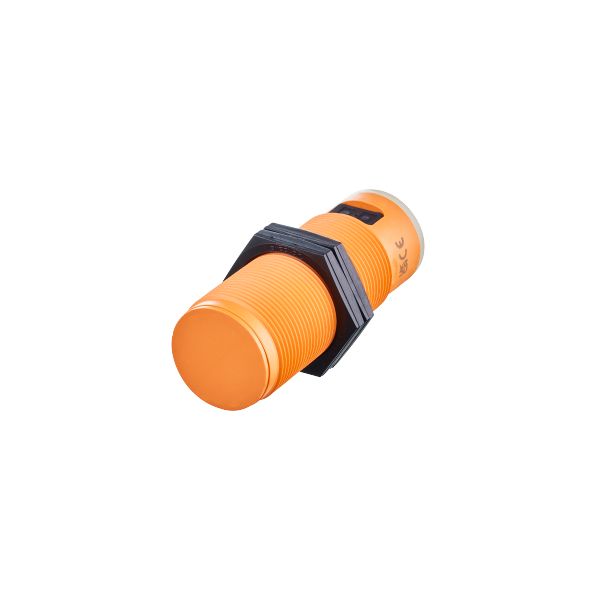

Ifm KI5082 Capacitive Sensor

Ifm KI5082 Capacitive Sensor

SKU IF-KI5082-E
$180.00 USD - $180.00 USD
$180.00 USD
$180.00 USD - $180.00 USD
$180.00 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design PNP/NPN; (Automatic load detection PNP/NPN)
Output function normally open / closed; (selectable)
Sensing range [mm] 20
Communication interface IO-Link
Housing Threaded type
Dimensions [mm] M30 x 1.5 / L = 90
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 20
Protection class II
Reverse polarity protection yes
Measuring principle capacitive
Outputs
Electrical design PNP/NPN; (Automatic load detection PNP/NPN)
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 10
Short-circuit proof yes
Overload protection yes
Monitoring range
Sensing range [mm] 20
Accuracy / deviations
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -20...20
Interfaces
Communication interface IO-Link
Transmission type COM1 (4,8 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
Profiles Smart Sensor
SIO mode yes
Min. process cycle time [ms] 101
Supported DeviceIDs
Type of operation DeviceID
default 388
Operating conditions
Ambient temperature [°C] -25...80
Note on ambient temperature
temperature of the sensing face: -25...110 °C
Protection IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 3 V
EN 55011 class B
Vibration resistance
EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z)
MTTF [years] 569
Mechanical data
Weight [g] 88.2
Housing Threaded type
Mounting non-flush mountable
Dimensions [mm] M30 x 1.5 / L = 90
Thread designation M30 x 1.5
Material housing: PBT; Pushbuttons: TPE-U; LED window: PC
Displays / operating elements
Display
Switching status 1 x LED, yellow
Teach function yes
Electronic lock yes
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connector: 1 x M12; coding: A
