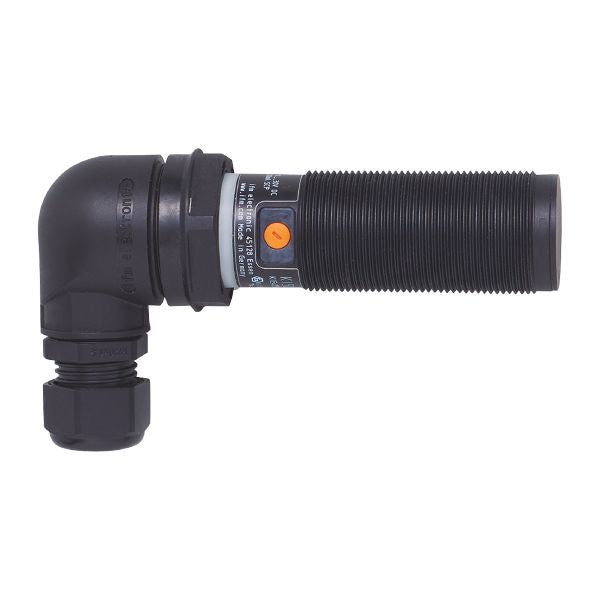

Ifm KI505A Capacitive Sensor

Ifm KI505A Capacitive Sensor

SKU IF-KI505A-E
$223.33 USD - $223.33 USD
$223.33 USD
$223.33 USD - $223.33 USD
$223.33 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Product characteristics
Electrical design PNP
Output function complementary
Sensing range [mm] 15
Housing Threaded type
Dimensions [mm] M30 x 1.5 / L = 125
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 20
Protection class III
Reverse polarity protection yes
Measuring principle capacitive
Outputs
Electrical design PNP
Output function complementary
Max. voltage drop switching output DC [V] 2.5
Max. leakage current [mA] 0.1
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 10
Short-circuit proof yes
Overload protection yes
Monitoring range
Sensing range [mm] 15
Sensing range adjustable yes
Factory setting sensing range [mm] 15
Real sensing range Sr [mm] 15 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -20...20
Operating conditions
Ambient temperature [°C] -20...60
Protection IP 65; IP 67
Tests / approvals
ATEX marking II 3D Ex tc IIIC T90°C Dc X
EMC
EN 61000-4-2 ESD kV / 8 kV AD
EN 61000-4-3 HF radiated 3 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 3 V
EN 55011 class B
IEC 60255-5 1 kV line to line, Ri: 500 Ohm
MTTF [years] 463
Mechanical data
Weight [g] 155
Housing Threaded type
Mounting non-flush mountable
Dimensions [mm] M30 x 1.5 / L = 125
Thread designation M30 x 1.5
Material PBT; PA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5
